MX-1300-PWR-C Triplexer 1.6 to 160 Mhz / 350 to 550 Mhz / 850 to 1300 Mhz
The KOMUNICA MX-1300-PWR-CABLE is a triplexer with a 35 cm long cable that allows operation in three different frequency ranges using a single antenna. This device is useful in amateur radio and communication applications where the flexibility to tra
Make the first review93,17€ VAT included 77,00€ excl. VAT
Are you one of those who prefer not to wrap gifts? We do it for you!
With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!
What if the recipient is you? Why not?
We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.
This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.
If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.
Description KOMUNICA MX1300PWRCAB
MX-1300-PWR-C

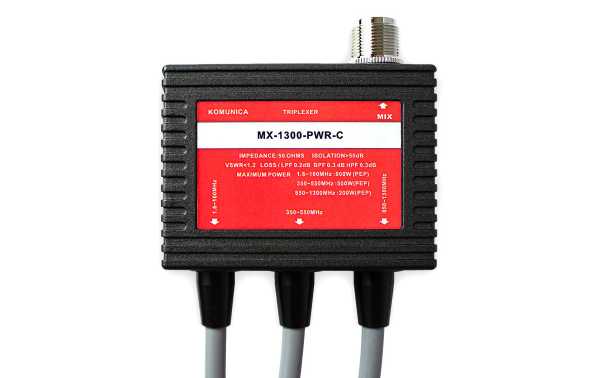

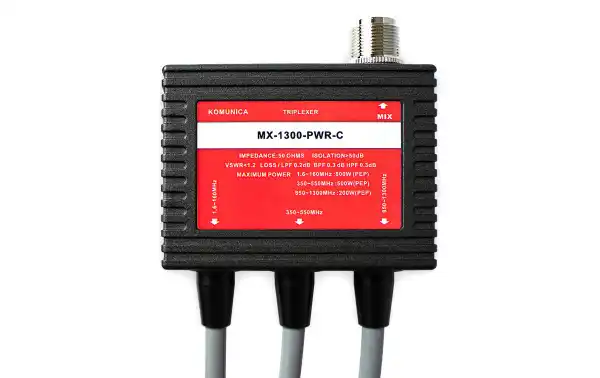

The KOMUNICA MX-1300-PWR-CABLE is a triplexer with a 35 cm cable that allows operation on three different frequency ranges using a single antenna. This device is useful in amateur radio and communication applications where the flexibility to transmit and receive on multiple frequency bands is needed.
Frequency Ranges: The MX-1300-PWR-CABLE triplexer allows operation in three different frequency ranges:
Frequency 1.6 to 160 MHz
Frequency 350 to 550 MHz
Frequency 850 to 1300 MHz
Unlike duplexers, which operate on two frequency bands, triplexers operate on three frequency bands. This allows transmission and reception on multiple bands without the need to change cables or antennas.
Compact Design: The triplexer cable is 35 cm long, making it easy to install in limited spaces.

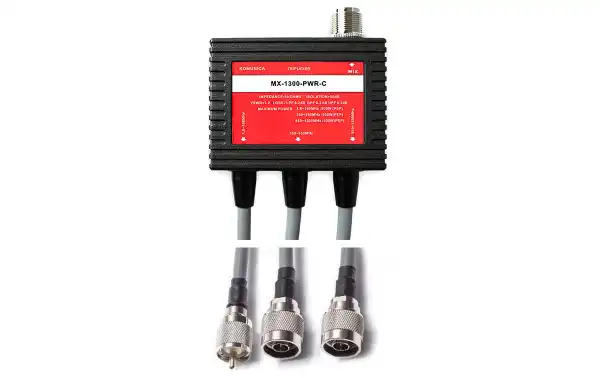

Flexibility: It allows the use of a single antenna in three different frequency bands, simplifying installation and reducing system complexity.

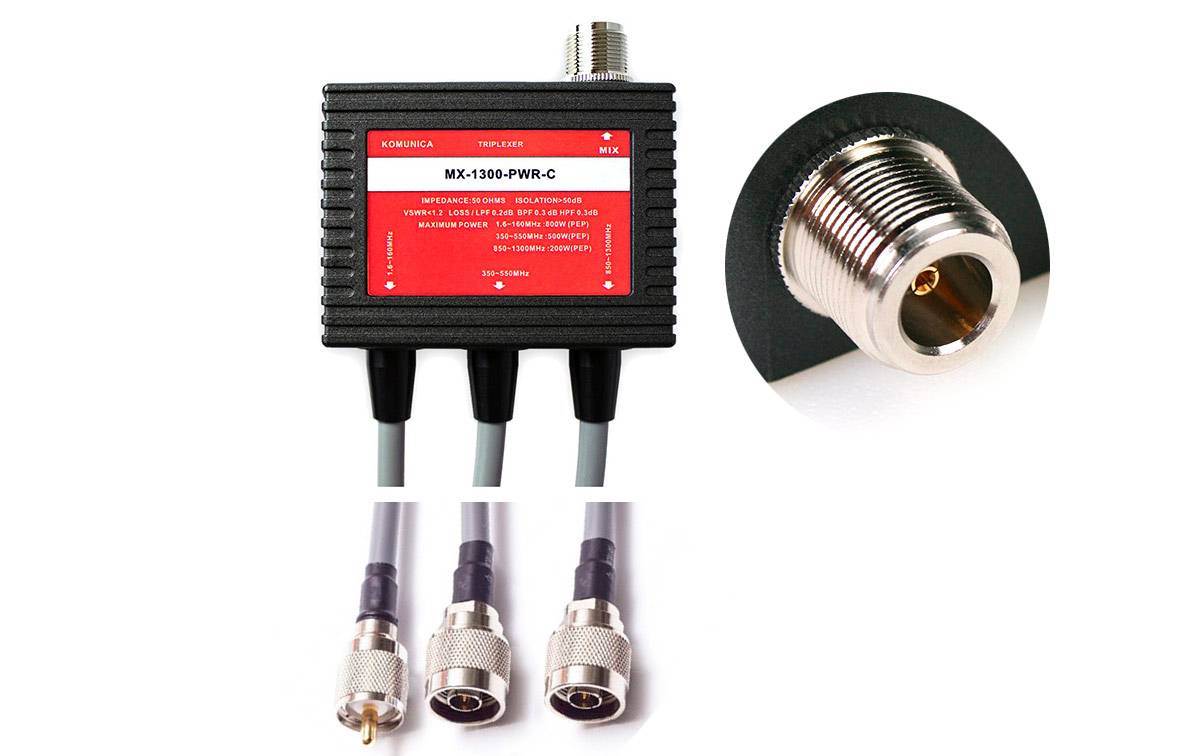

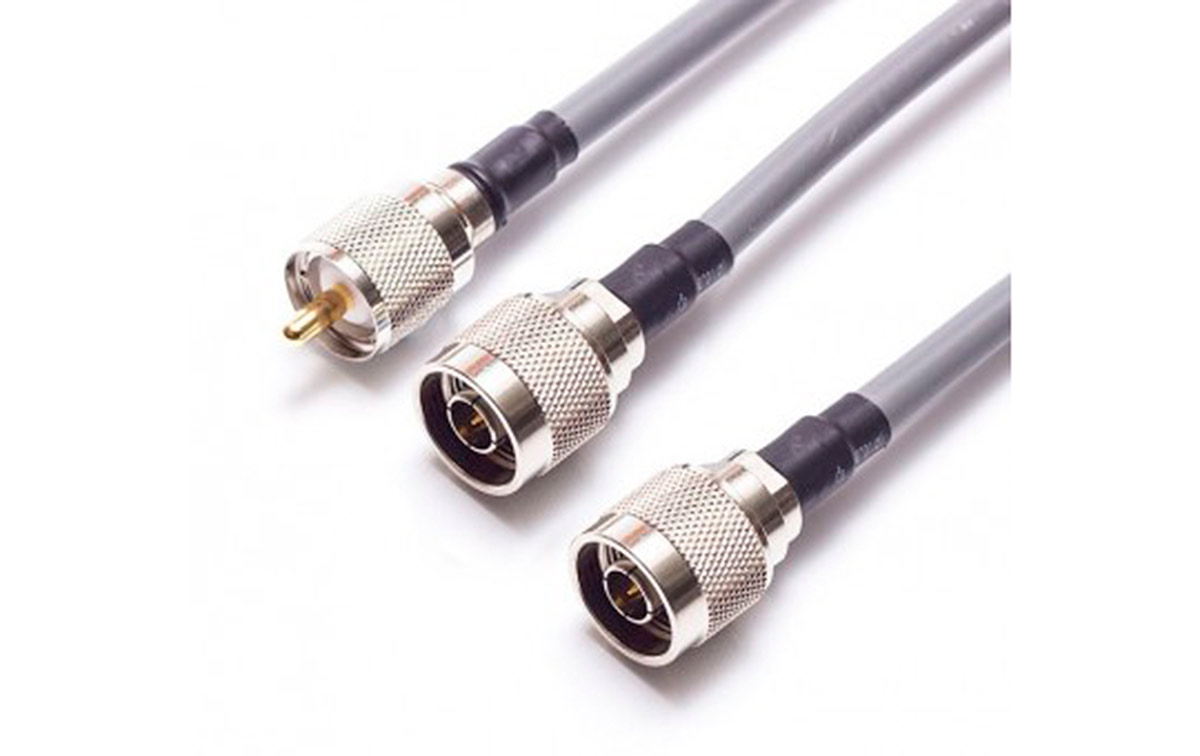

The KOMUNICA MX-1300-PWR-CABLE is a wired triplexer that provides the flexibility to operate on three different frequency ranges using a single antenna and various connector types, including female N (MIX), male PL, and dual male N connectors. This is useful in amateur radio and communication applications where the ability to efficiently switch between multiple frequency bands is required. Its compact design and single cable make installation easy.
MIX Connector : Female PL Connector (SO239)
Connector 1 (left): Frequency 1.6-160 MHz: Male PL connector. Power 800 watts (PEP)
Connector 2 (center connector): Frequency 350-550 MHz: Male N connector. Power 500 watts (PEP)
Connector 3 (right): Frequency 850-1300 MHz: Male N connector. Power 200 watts (PEP)
Characteristics:
- Impedance 50 ohms
- Dimensions 86 x 27 x 65 mm
- Weight 390 gr.
