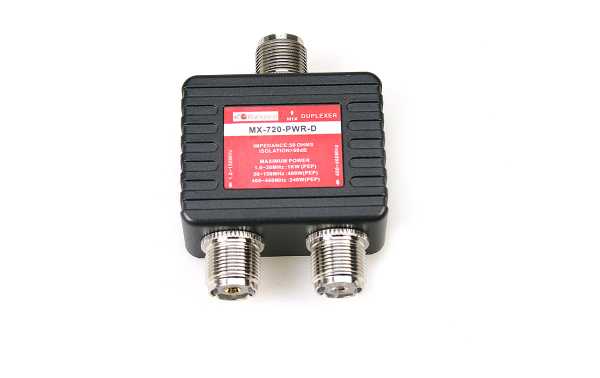

KOMUNICA MX-720-PWR-D Duplexer connector PL 1.6 to 150 / 400 to 460 Mhz.
KOMUNICA MX-720-PWRD HF/VHF/UHF Duplexer, 1 x PL Female x 2 PL Female, frequencies 1.6-30 Mhz-50-150 Mhz-400-460 Mhz MX-720-PWRD is an HF / VHF duplexer / High quality UHF, equipped with UHF female PL connectors for the HF/VHF/UHF frequency bands.
Make the first review54,45€ VAT included 45,00€ excl. VAT
Description KOMUNICA MX720PWRD
MX-720-PWR-D
The KOMUNICA MX-720-PWRD is a device known as a "duplexer" that is used in amateur radio and communication applications to allow the use of a single antenna to operate in multiple frequency bands without the need to physically change the antenna connection. antenna.
Frequency Bands: The MX-720-PWRD duplexer is designed to operate in multiple frequency bands, including HF (1.6-30 MHz), VHF (50-150 MHz), and UHF (400-460 MHz). This makes it suitable for a wide range of amateur radio and communication applications.

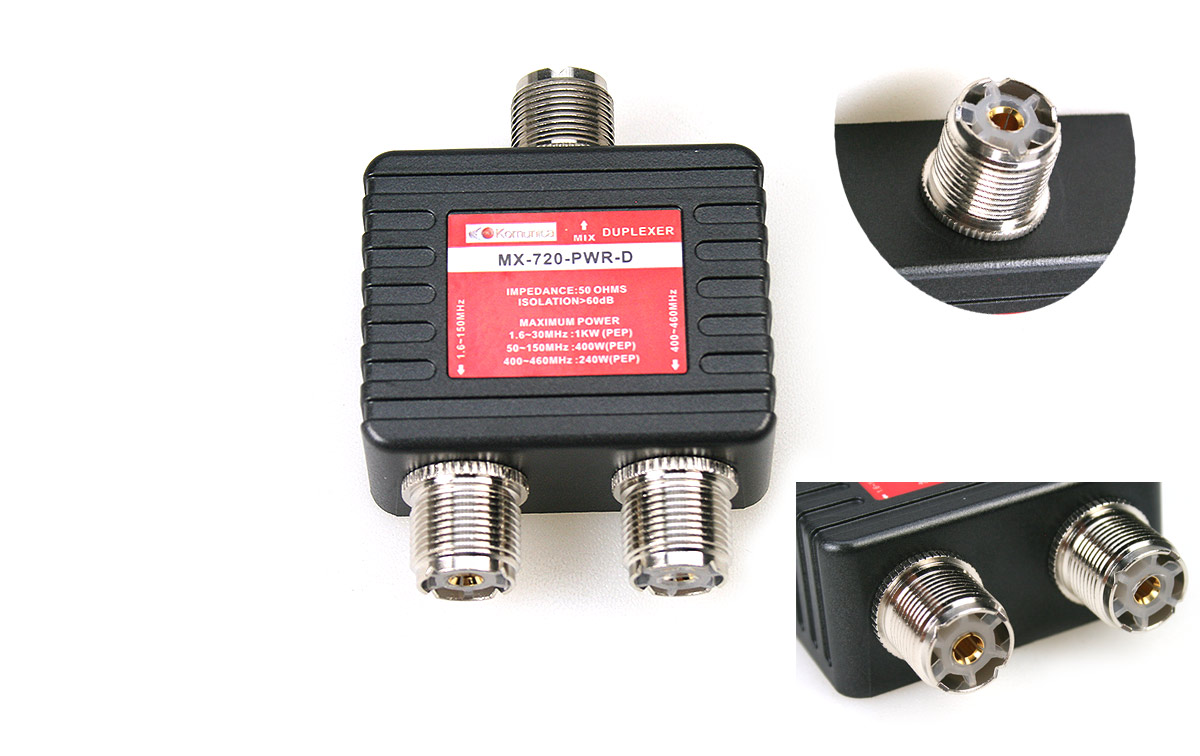

UHF Female PL Connectors: This duplexer is equipped with UHF female PL connectors on both ends. These connectors are common in amateur radio applications and provide a secure and reliable connection.
High-Quality Design: The MX-720-PWRD is designed to deliver high-quality, reliable performance, which is essential in amateur radio applications where signal clarity and stability are crucial.
Frequency Conversion: The duplexer allows a single antenna to be used to transmit and receive in different frequency bands without mutual interference. This is useful in amateur radio stations or communication systems that need to operate on multiple bands.
Flexibility: Using a duplexer simplifies installation and eliminates the need to physically change the antenna connection when changing bands. This saves time and effort.
KOMUNICA MX-720-PWRD is a high-quality duplexer designed for use in multiple frequency bands, making it suitable for amateur radio and communication applications requiring flexibility in band selection. Provides an efficient solution to operate in different frequency bands with a single antenna.
- 1 MX-720-PWRD Duplexer
Characteristics
- Frequencies 1.6 -30 / 50-150/ 400-460 Mhz
- HF/ VHF /UHF bands
- Impedance 50 ohms
- 3 x PL Female Connector
- Connector
- Power: 1.6-30 MHz: 1 kW (PEP)
- Power 50-150 MHz: 400 watts (PEP)
- Power 400-460 MHz: 250 watts (CW)
- Loss: LPF <0.1 dB (1.6-30/50-150 MHz) / HPF <0.2 dB (400-460 MHz)

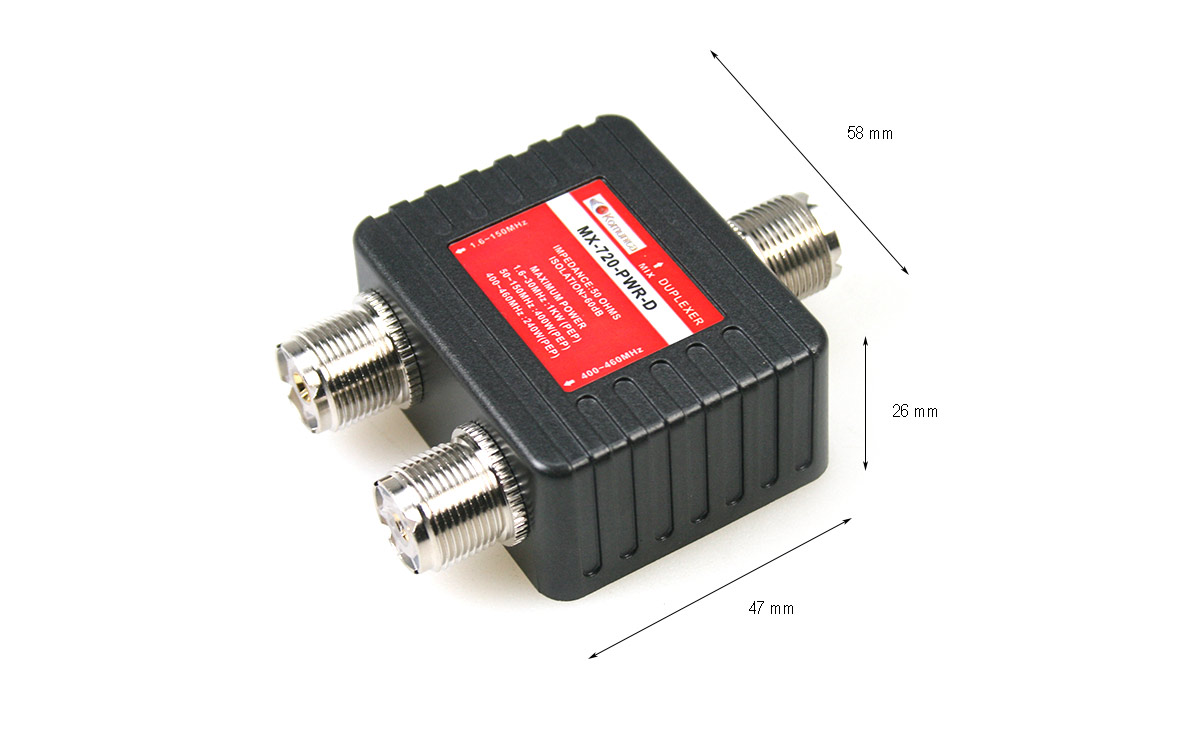

- Measurements 58 x 47 x 26 mm without counting connectors
- Weight 141 gr.
