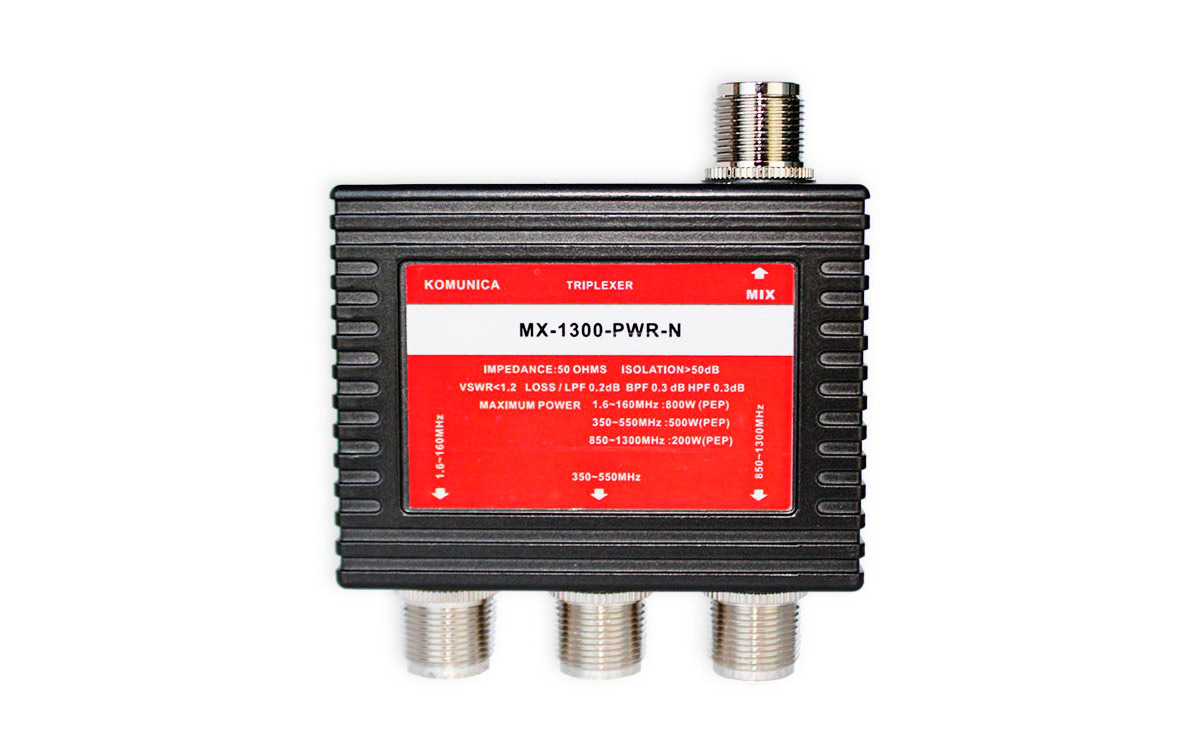

MX-1300-PWR-N Triplexer 1.6 to 160 Mhz / 350 to 550 Mhz / 850 to 1300 Mhz

The MX-1300-PWR-N is a triplexer from the Komunica brand that allows the connection of three devices or antennas on different frequency bands without the need for additional cables.

Triplexer: A triplexer is a device that allows signals from three different devices or antennas on different frequency bands to be combined and distributed over a single transmission line. In this case, the MX-1300-PWR-N is a three-way triplexer.

Compatible Frequency Ranges:

1.6-160 MHz (SO-239 PL female connector): This means it is compatible with frequencies in the 1.6 to 160 MHz range. The connector used is an SO-239, which is commonly used in amateur radio equipment and in the HF (high frequency) band.
350-550 MHz (female N connector): This frequency range is suitable for communications in the UHF (Ultra High Frequency) band and some VHF (Very High Frequency) applications. The connector used is a female N connector, which is common in high-frequency radio applications.
850-1300 MHz (female N connector): This frequency range is suitable for communications in the UHF and SHF (Super High Frequency) bands, as well as for some microwave applications. As in the previous range, the connector used is a female N connector.
This triplexer is useful in situations where signals from different frequency bands need to be combined into a single antenna or transmission cable system without the need for additional cables. Each of the three frequency bands is routed through its corresponding connector, facilitating the integration of multiple devices or antennas into a single communication system.

Characteristics

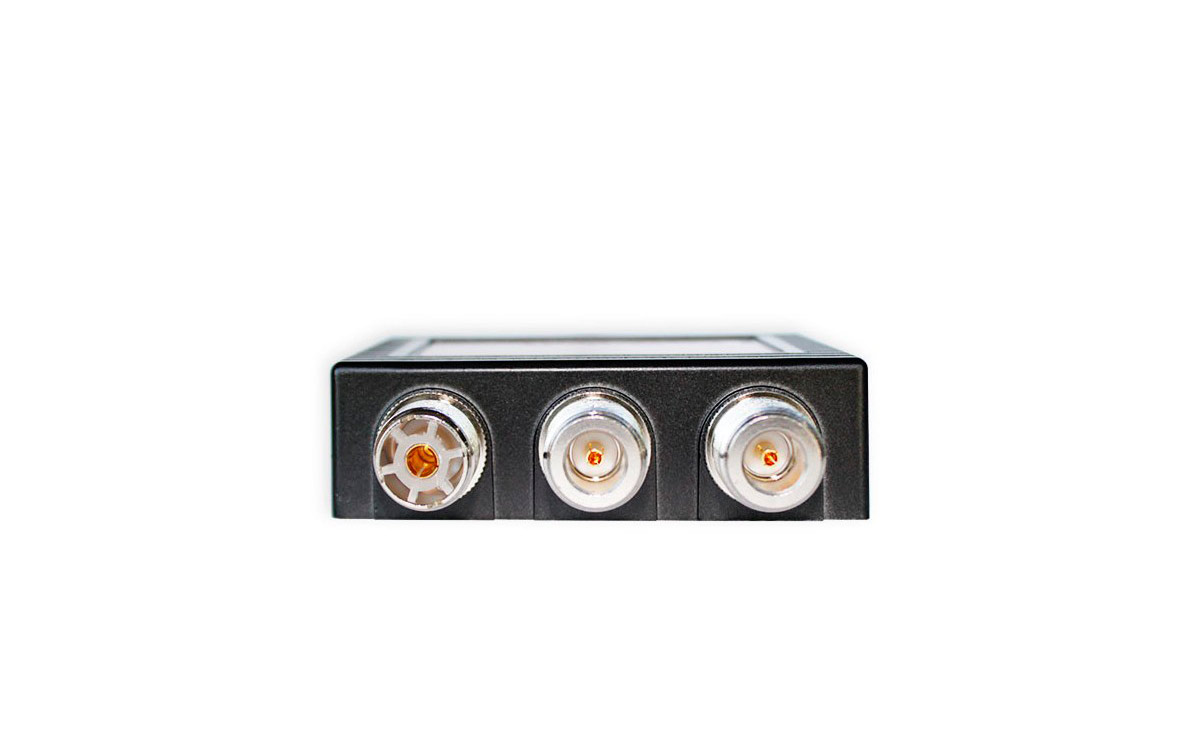

• Frequency 1.6-160 MHz: Female PL connector (SO239). Power 800 watts (PEP)
• Frequency 350-550 MHz: Female N connector. Power 500 watts (PEP)
• Frequency 850-1300 MHz: Female N connector. Power 200 watts (PEP)
• MIX Connector : Female PL Connector (SO239)
• Impedance 50 ohms
• Dimensions 86 x 27 x 65 mm
• Weight 300 gr.
