Reference HKMX72 | HAMKING EAN 8718375101315
HAMKING HKMX72 Duplexor HF/VHF/UHF1 PL Hembra x 2 PL Macho
HAMKING HKMX72 Duplexor HF/VHF/UHF 1 PL Hembra x 2 PL Macho
Make the first review NOTIFY
not available
Description HAMKING HKMX72
HKMX72
HAMKING HKMX72 Duplexer with hoses HF / VHF / UHF1 PL Female x 2 PL Male, frequencies 1,6-30-140-150-400-460 Mhz

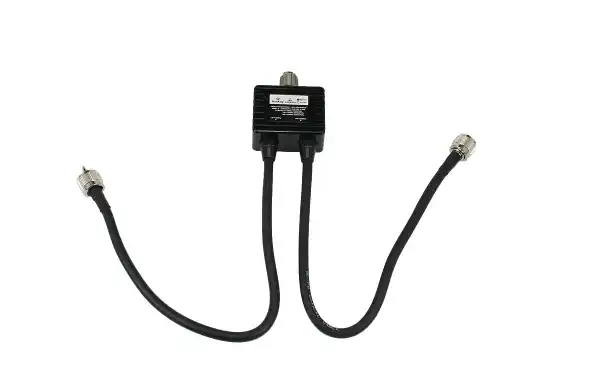

The HamKing MX-72 is a high quality HF / VHF / UHF duplexer, equipped with a UHF female connector and two UHF male connectors for the frequency bands of 1.6 - 150 MHz and 400 - 460 MHz.
Contents of the kit
- 1 Duplexer MX-72
features
- Frequencies 1,6 -30 / 140-150 / 400-460 Mhz
- Bands HF / VHF / UHF
- Impedance 50 ohms
- Connector 1 PL Female
- Connector 2 PL Male
- Length of cables 25 cm
- RG 5D FB low loss
- Power: 1.6-30 MHz: 400 watts (CW), 1 kW (PEP)
- Power 140-150 MHz: 150 watts (CW) 400 watts (PEP)
- Power 400-460 MHz: 100 Watts (CW), 250 Watts (CW)
- Loss: LPF <0.1 dB (1.6-30 / 140-150 MHz) / HPF <0.2 dB (400-460 MHz)
- Measures 56 x 46 x 27 mm without counting connectors
- Weight 195 gr.
