Reference HKDX720D | HAMKING EAN 8718375101322

HAMKING HKDX72 Duplexer HF / VHF / UHF1 PL Female x 2 PL Male, frequencies 1,6-30-140-150-400-460 Mhz

HAMKING HKDX72 Duplexer HF / VHF / UHF1 PL Female x 2 PL Male, frequencies 1,6-30-140-150-400-460 Mhz

HAMKING HKDX72 Duplexer HF / VHF / UHF1 PL Female x 2 PL Male, frequencies 1,6-30-140-150-400-460 Mhz

HAMKING HKDX72 Duplexer HF / VHF / UHF1 PL Female x 2 PL Male, frequencies 1,6-30-140-150-400-460 Mhz

HAMKING HKDX72 Duplexer HF / VHF / UHF1 PL Female x 2 PL Male, frequencies 1,6-30-140-150-400-460 Mhz

HAMKING HKDX72 Duplexer HF / VHF / UHF1 PL Female x 2 PL Male, frequencies 1,6-30-140-150-400-460 Mhz

HAMKING HKDX72 Duplexer HF / VHF / UHF1 PL Female x 2 PL Male, frequencies 1,6-30-140-150-400-460 Mhz

HAMKING HKDX72 Duplexer HF / VHF / UHF1 PL Female x 2 PL Male, frequencies 1,6-30-140-150-400-460 Mhz

HAMKING HKDX72 Duplexer HF / VHF / UHF1 PL Female x 2 PL Male, frequencies 1,6-30-140-150-400-460 Mhz

HAMKING HKDX72 Duplexer HF / VHF / UHF1 PL Female x 2 PL Male

HAMKING HKDX72 Duplexer HF / VHF / UHF1 PL Female x 2 PL Male, frequencies 1,6-30-140-150-400-460 Mhz The HamKing DX-720D is a high quality HF / VHF / UHF duplexer, equipped with a UHF female connector and two UHF male connectors for the bands of fr

Make the first review

38,36€ VAT included 31,70€ excl. VAT

You've seen it cheaper Request a quote

available. Estimated delivery 2-5 days. available in shop Last units Delivery price from 30,25€

Description HAMKING HKDX720D

HKDX72D

HAMKING HKDX72 Duplexer HF / VHF / UHF1 PL Female x 2 PL Male, frequencies 1,6-30-140-150-400-460 Mhz

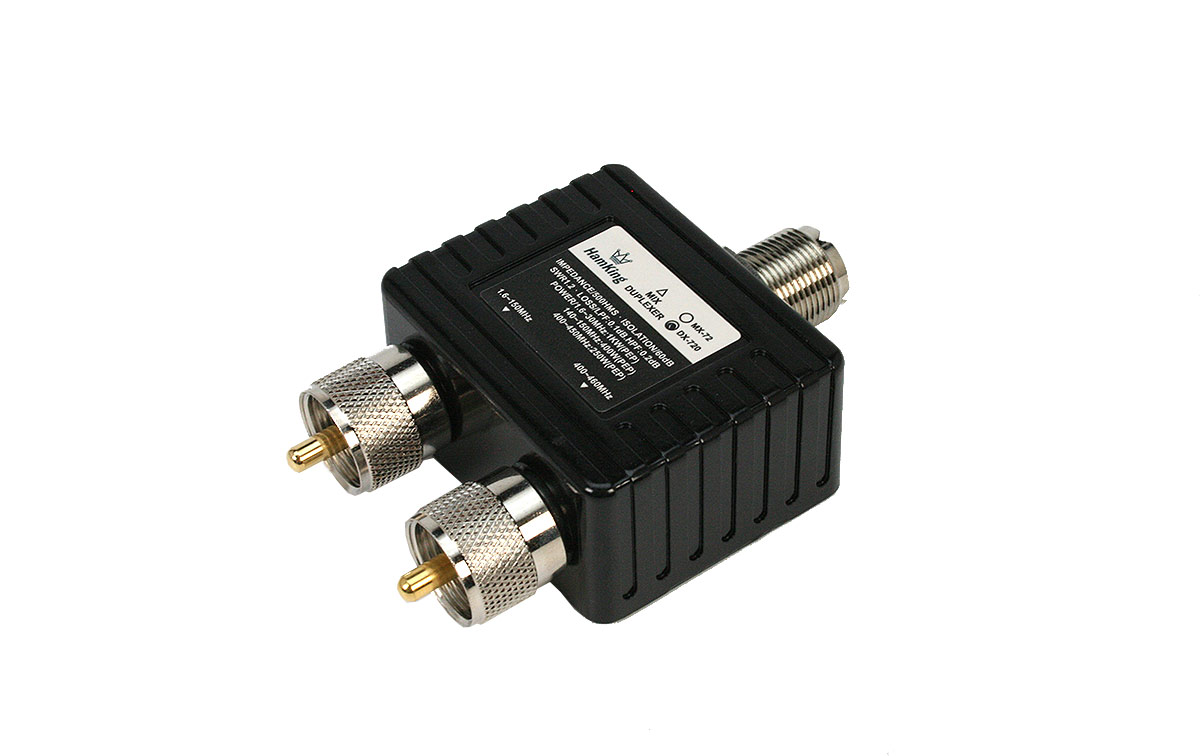

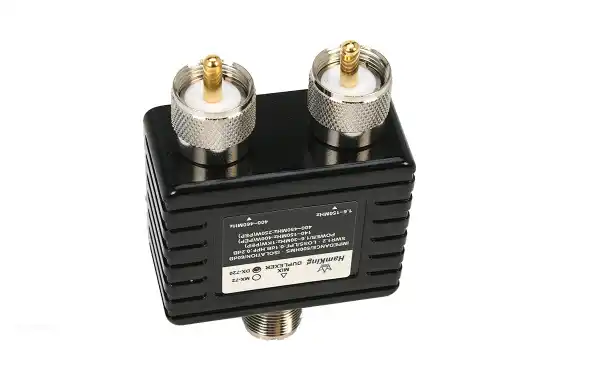

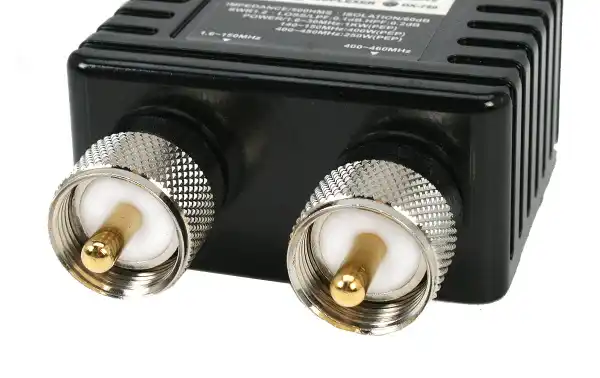

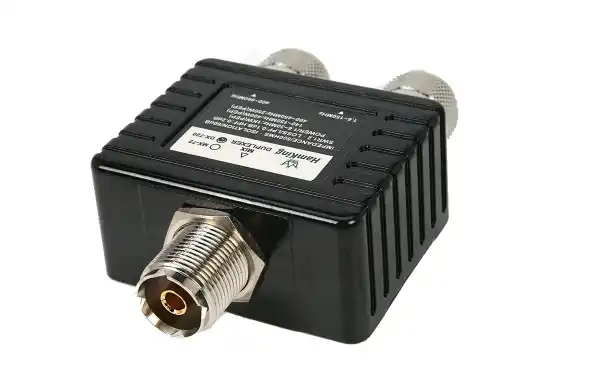

The HamKing DX-720D is a high-quality HF / VHF / UHF duplexer, equipped with a UHF female connector and two UHF male connectors for the frequency bands of 1.6-150 MHz and 400-460 MHz.

Contents of the kit

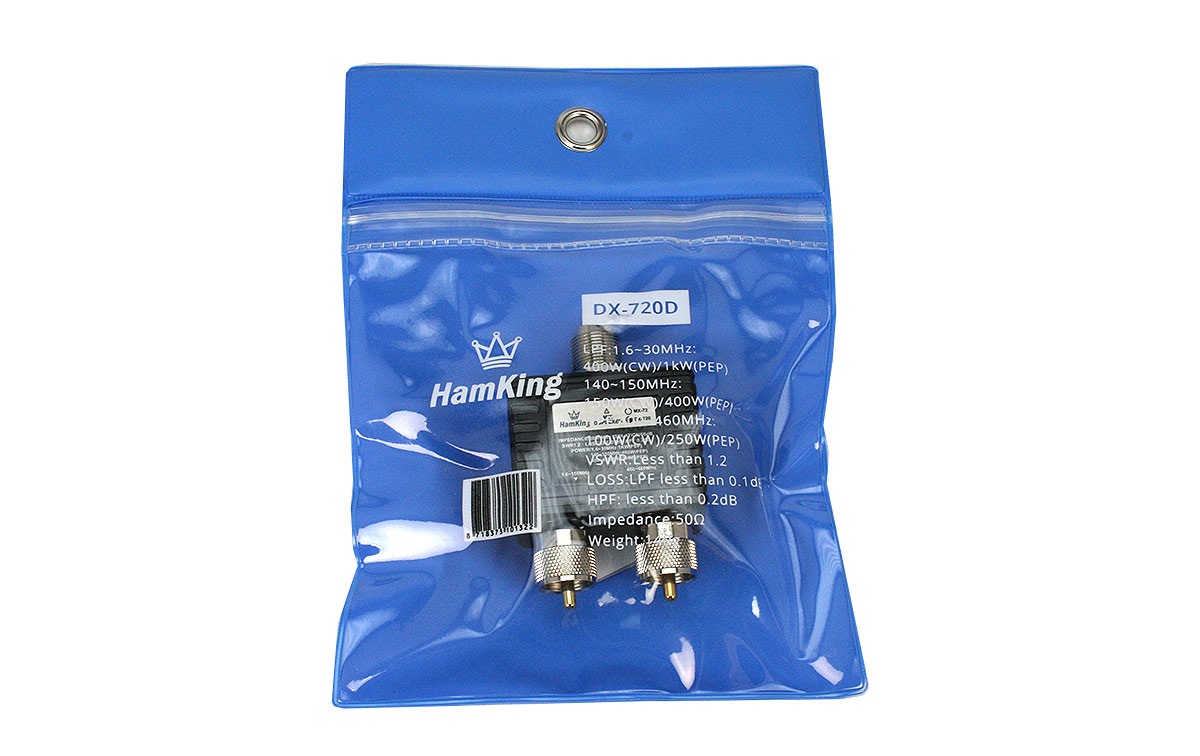

1 Duplexer DX-720D

features

Frequencies 1,6 -30 / 140-150 / 400-460 Mhz
Bands HF / VHF / UHF
Impedance 50 ohms
Connector 1 PL Female
Connector 2 PL Male
Power: 1.6-30 MHz: 400 watts (CW), 1 kW (PEP)
Power 140-150 MHz: 150 watts (CW) 400 watts (PEP)
Power 400-460 MHz: 100 Watts (CW), 250 Watts (CW)
Loss: LPF <0.1 dB (1.6-30 / 140-150 MHz) / HPF <0.2 dB (400-460 MHz)

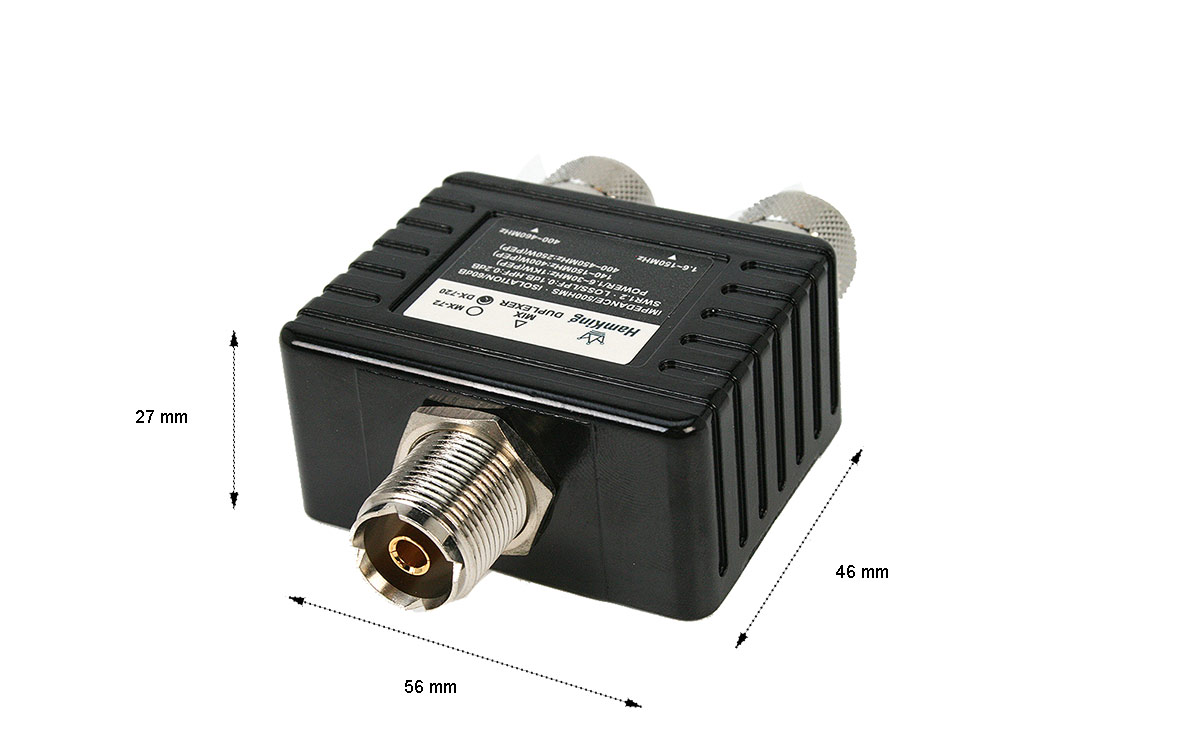

Measures 56 x 46 x 27 mm without counting connectors
Weight 165 gr.
