DIAMOND
Reference MX72H | DIAMOND EAN 4936312060202

Diamond MX72H Duplexer 1.6-150 Mhz, 350-480 Mhz

Diamond MX72H Duplexer 1.6-150 MHZ, 350-480 Mhz Cable length 35 cm RG 5D-2V Connector: MIX: PL Female Connector: PL Male 1.6-150 Mhz Connector: PL Male 350-480 Mhz

Make the first review

58,08 VAT included 48,00€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

available. Envio a partir de 2 días. Delivery price from 6,50€

Description MX72H

DIAMOND MX-72H

Diamond MX72H Duplexer 1.6-150 Mhz, 350-480 Mhz

Cable length 35 cm RG 5D-2V

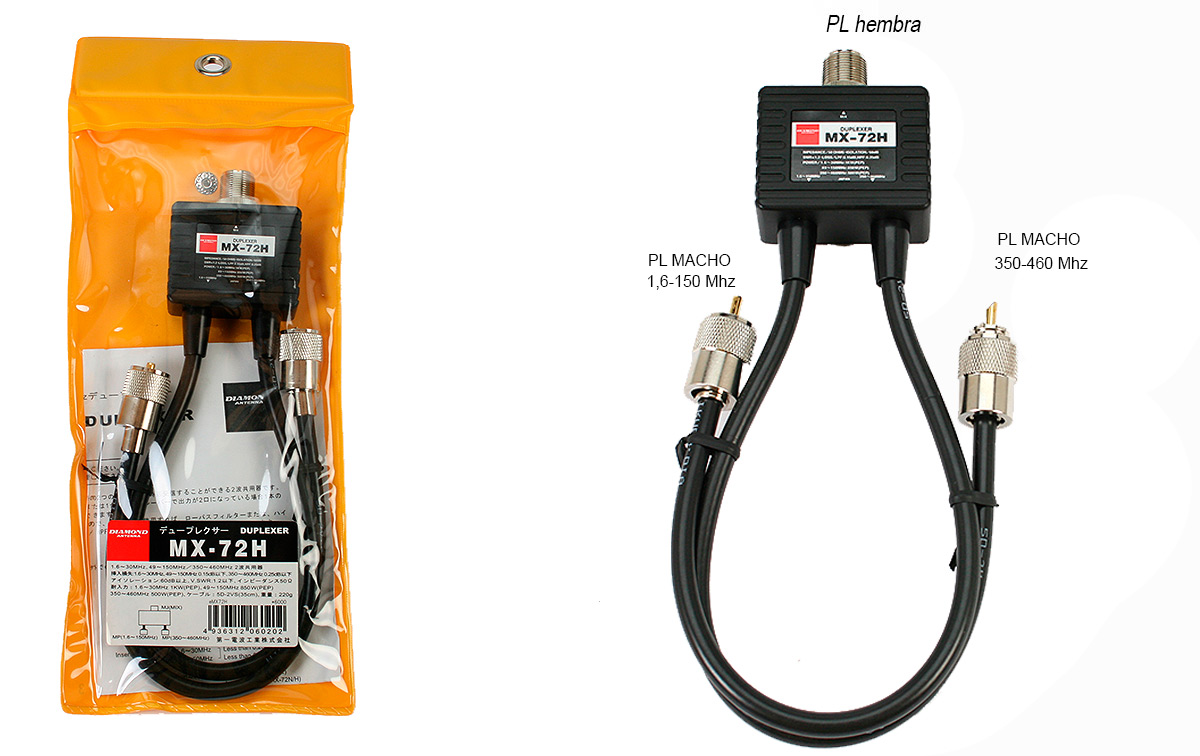

Connector: MIX: PL Female
Connector: PL Male 1.6-150 Mhz
Connector: PL Male 350-480 Mhz

diamond mx72h duplexor 1,6-150 mhz, 350-480 mhz

Kit contents

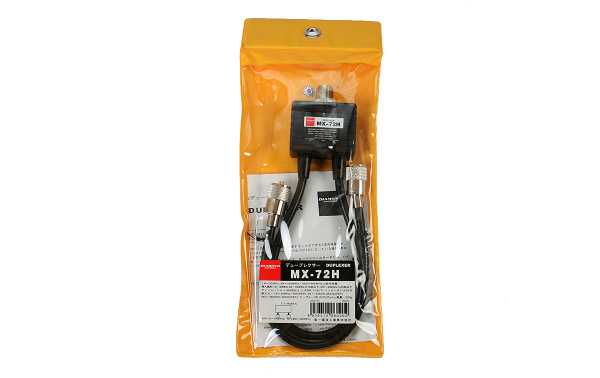

  • 1 MX-72H Duplexer

diamond mx72h duplexor 1,6-150 mhz, 350-480 mhz

diamond mx72h duplexor 1,6-150 mhz, 350-480 mhz

Characteristics

  • Frequencies: LPF: 1.6-150 MHz
  • Frequencies: HPF: 400-460 MHz
  • Frequencies: (76 to 120MHz only for receiving)
  • Maximum power: 1.6-30MHz 1000W (PEP)
  • Maximum power: 49-150MHz 400W (PEP)
  • Maximum power: 400-460MHz 600W (PEP)
  • Losses: 1.6-56 MHz 0.2dB
  • Losses: 140-150MHz 0.3dB
  • Impedance: 50 ohms
  • Stationary VSWR: 1.2
  • Isolation: More than 50dB

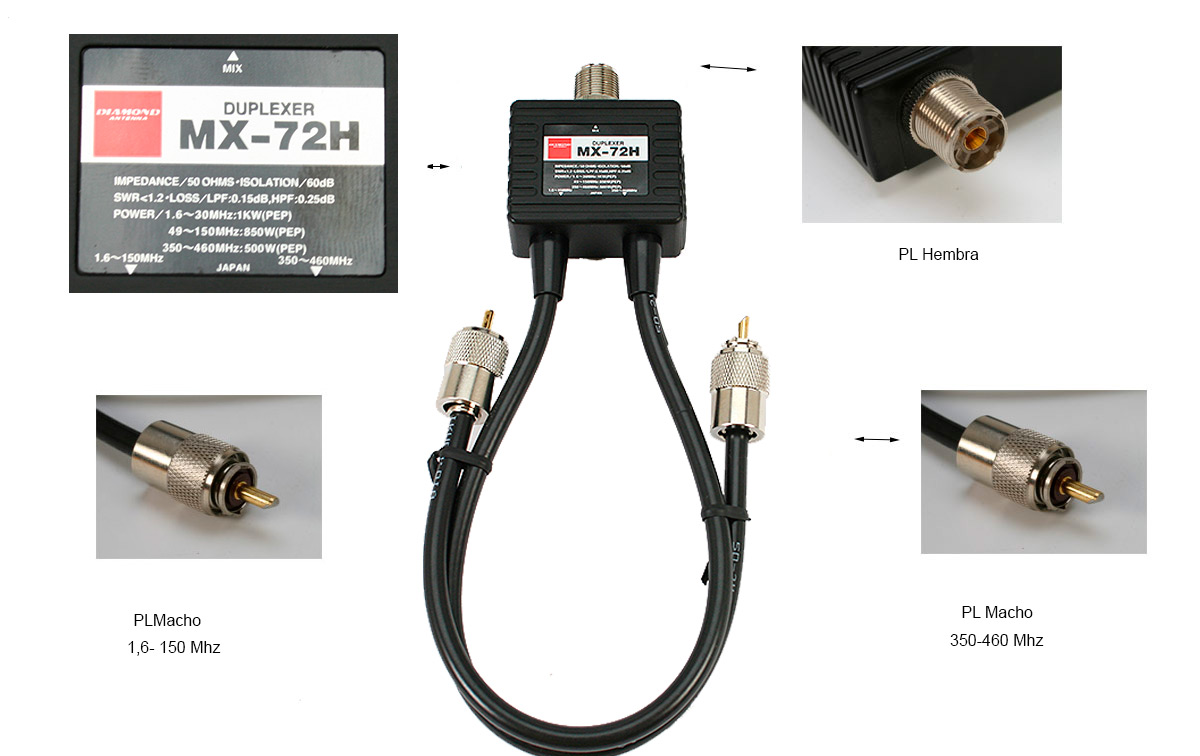

  • Connector: Mix: SO-239 PL Female
  • Connector PL Male 1.6-150 MHz
  • Connector: PL Male 350-460 MHz
  • Coaxial cable: 5D-2V 35cm
  • Dimensions: 46Wx25Hx58Dmm
  • Weight: 220g
