DIAMOND MX-3000N

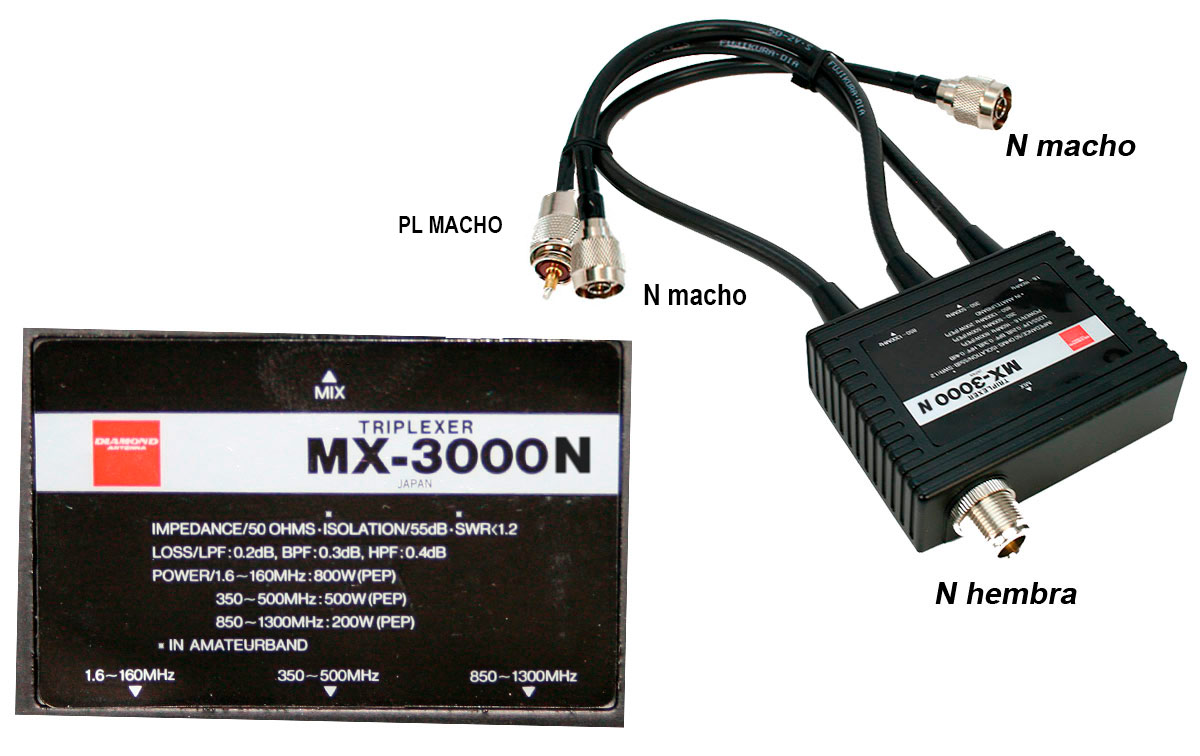

Diamond MX-3000-N Triplexer HF / VHF / UHF connector input 1 N Female x 2 N Male and PL male, frequencies 1.6-160-350-500-850-1300 Mhz
It is a high quality HF / VHF / UHF duplexer, equipped with one N female input connector and two N male connectors and one PL male connector.
1.6 - 160 MHz -350 - 500 MHz and 850-1300 Mhz frequency bands.

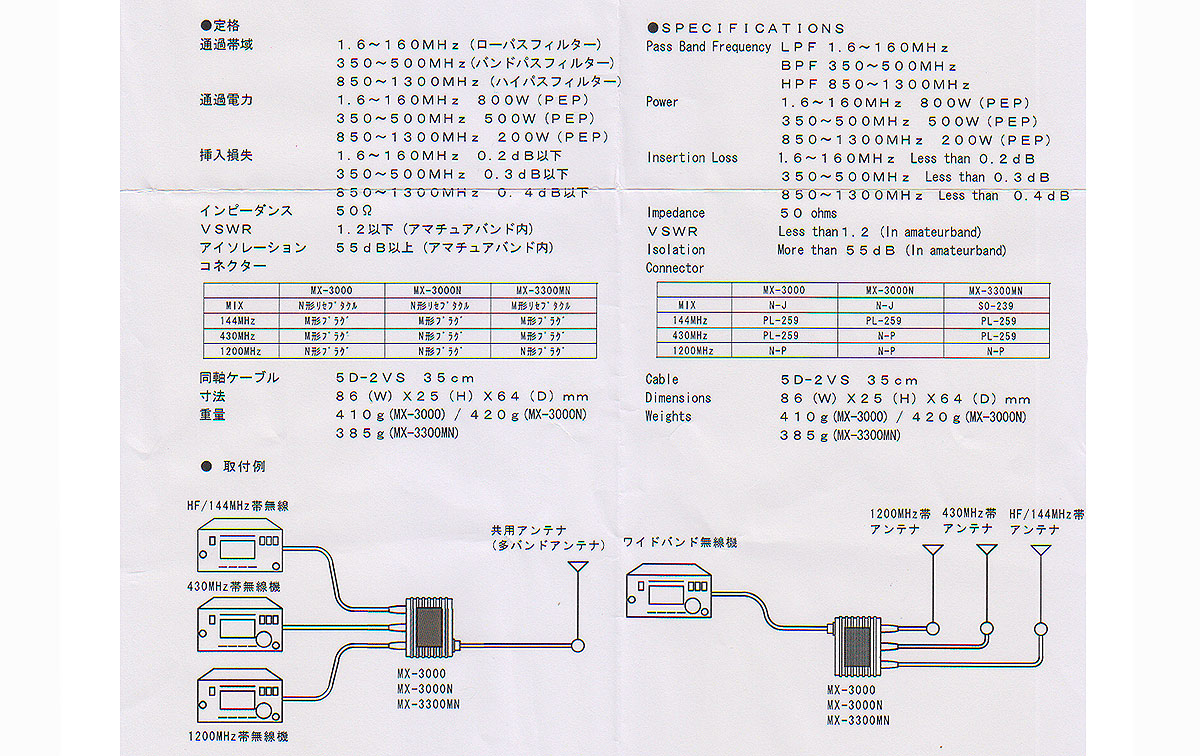

Characteristics

• Frequencies 1.6 - 160 MHz -350 - 500 MHz and 850-1300 Mhz
• HF / VHF / UHF bands
• Impedance 50 ohms
• VSWR: Less than 1.2: 1
• Connector 1 N Female
• Connector 2 N Male
• Connector 1 PL Male
• Power: 1.6-160 MHz: 800 watts (PEP)
• Power 350-500 MHz: 400 watts (PEP)
• Power 850-1300 MHz: 200 watts (PEP)
• Loss: <0.15 dB (1.6-160) 2.25 dB (140-150) 0.4 dB (850-13000 MHz)
• Isolation more than 55 dB
• Measures 86 x 25 x 64 mm
• Hose length 35 c, 5D-2VS cable
• Weight 385 gr.
