Diamond MX-3000 Triplexer 1.6 - 160 MHz -350 - 500 MHz and 850-1300 Mhz

DIAMOND MX-3000

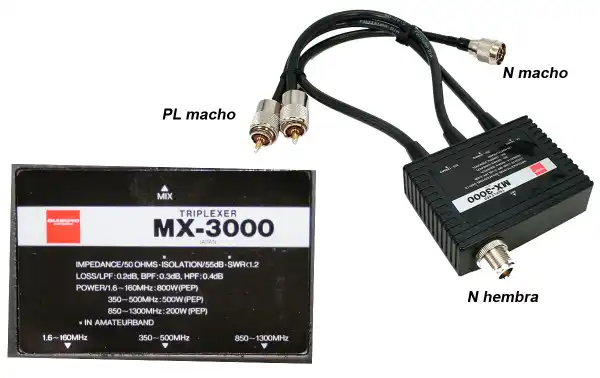

Diamond MX-3000 Triplexer HF / VHF / UHF1 PL Female x 2 PL Male, frequencies 1.6-160-350-500-850-1300 Mhz
It is a high quality HF / VHF / UHF duplexer, equipped with one female N input connector and two male PL connectors and 1 one male N connector.
Frequency bands of 1.6 - 160 MHz -350 - 500 MHz and 850-1300 Mhz.

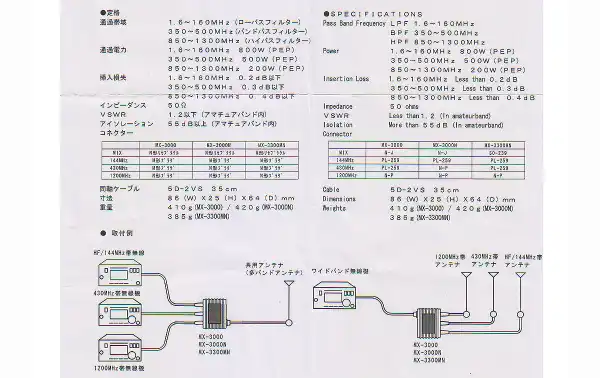

characteristics

• Frequencies 1.6 - 160 MHz -350 - 500 MHz and 850-1300 Mhz
• HF / VHF / UHF bands
• Impedance 50 ohms
• VSWR: Less than 1.2: 1
• 1 N Female connector
• 1 N Male connector
• Connector 2 PL Male
• Power: 1.6-160 MHz: 800 watts (PEP)
• Power 350-500 MHz: 400 watts (PEP)
• Power 850-1300 MHz: 200 Watts (PEP)
• Loss: <0.15 dB (1.6-160) 2.25 dB (140-150) 0.4 dB (850-13000 MHz)
• Isolation more than 55 dB
• Measures 86 x 25 x 64 mm
• 35 c hose length, 5D-2VS cable
• Weight 385 gr.
