Diamond MX62N Duplexer 1.6-56 MHZ, 76-470 Mhz

MX62N DIAMOND Original Japan.PL / PL-N Pass Band Frequency connectors: LPF: 1.6-56MHz / HPF: 76-470MHz (76 to 120MHz receiving only) Power: 1.6-56MHz 600W (PEP), 140-150MHz 600W (PEP) , 430-470MHz 600W (PEP) more Manufacturer: diamond Reference MX62N

available
81,00 incl. VAT
66,94€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

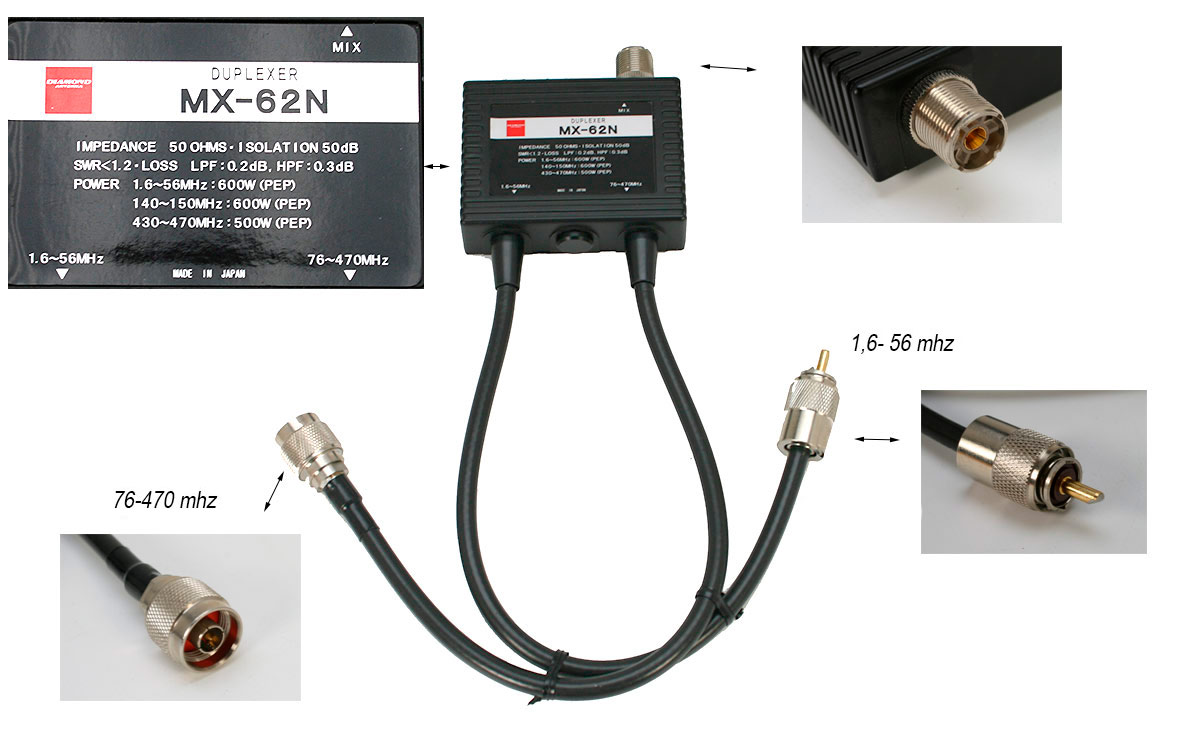

DIAMOND MX-62N

Diamond MX62N Duplexer 1.6-56 MHZ, 76-470 Mhz, valid for FT-857 /897 / FT991A etc.

Cable length 35 cm RG 5D-2V
Connector: MIX: PL Female
Connector: PL Male 1.6-56Mhz
Connector: N Male 76-470Mhz

Diamond MX62N

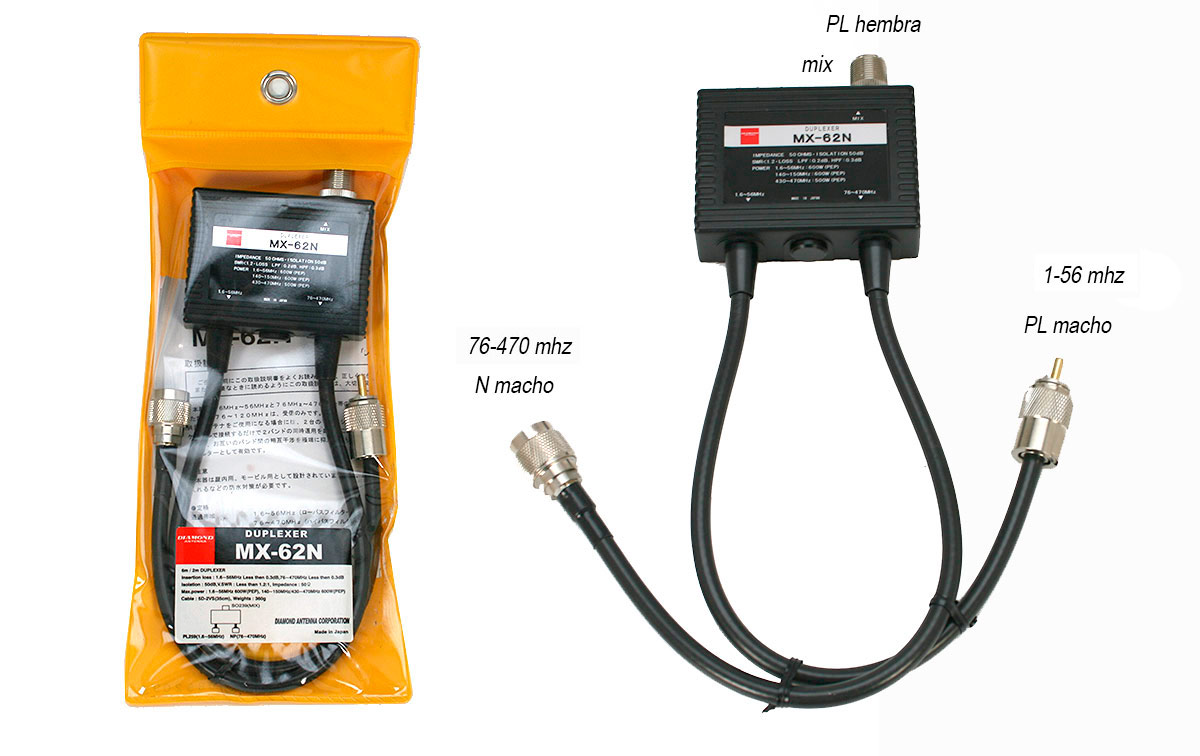

kit content
  • 1 Duplexer MX-62N

Diamond MX62N

diamond mx62n duplexor 1,6-56 mhz, 76-470 mhz

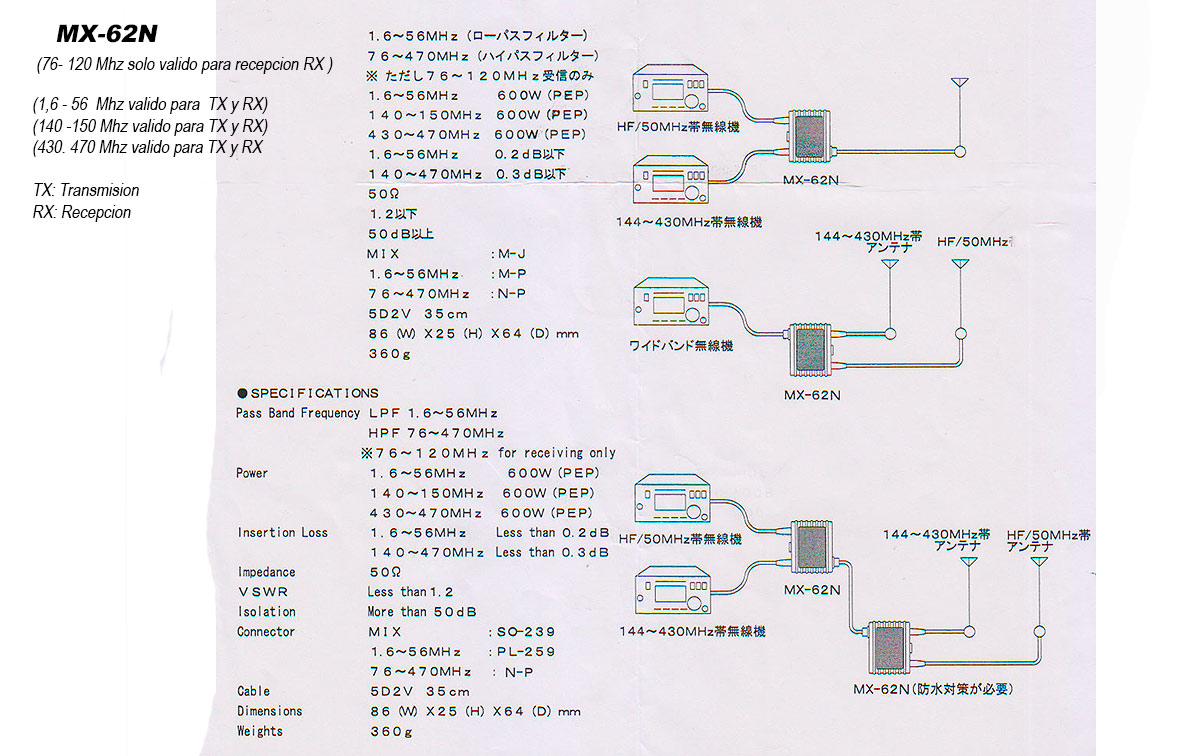

Characteristic

  • Frequencies: LPF: 1.6-56 MHz
  • Frequencies: HPF: 76-470 MHz
  • Frequencies: (76 to 120MHz only for receiving)
  • Maximum power: 1.6-56MHz 600W (PEP)
  • Maximum power: 140-150MHz 600W(PEP)
  • Maximum power: 430-470MHz 600W (PEP)
  • Lost:1.6-56MHz 0.2dB
  • Losses: 140-150MHz 0.3dB
  • Impedance: 50 ohms
  • Stationary VSWR: 1.2
  • Isolation: More than 50dB
  • Connector:Mix: SO-239 Pl Female
  • PL Male Connector 1.6-56 MHz
  • Connector: N Male 76-470MHz
  • Coaxial cable: 5D-2V 35cm
  • Dimensions: 86Wx25Hx64Dmm
  • Weight:360g
