MANSON KPS-6602 Laboratory Power Supply 1-32V DC / 0-30A

Manson KPS-6602

KPS-6602 MANSON Laboratory Power Supply Adjustable voltage 1-32V DC / adjustable amperage 0-30A.

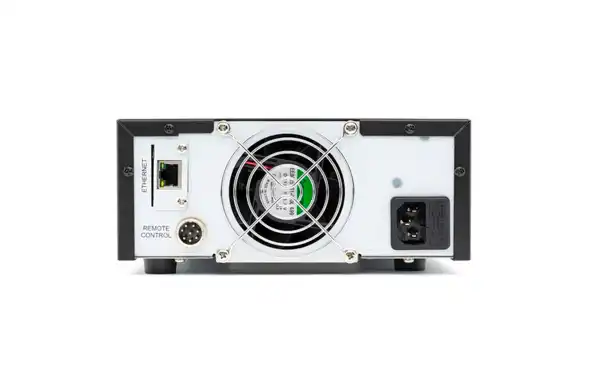

The remotely controllable switching power supply of the KPS series. The waveform generator can simulate common test conditions for electronic devices. In addition to the built-in USB interface, an optional Ethernet interface allows the user to configure, operate, and display the basic settings of the switched power supply via LAN or the Internet.

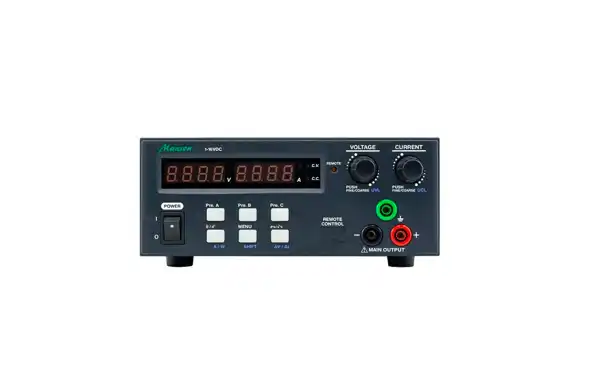

The KPS series uses SCPI (Standard Programmable Instrument Commands) syntax so that it can be easily integrated into electronic test systems. Two 4-digit displays offer a resolution of 10 mV or 10 mA. Three freely programmable presets for voltage and current can be saved and activated using the buttons on the front of the device. User-adjustable limit values for output current and voltage serve to protect connected loads from damage caused by overvoltage and overcurrent. The on / off button on the output and the locking button on the control elements allow safe and convenient operation. The possibility of analog remote control of the voltage, current and on / off of the output offers flexibility in the operation of the switching power supply. For laboratories, universities, KPS-6602 MANSON Laboratory Power Supply Adjustable voltage 1-32V DC / adjustable amperage 0-30A.

Characteristics

• Type Switching mode
• Input voltage 180 - 240VAC 50Hz ~
• Nominal output power 640W
• Output number 1
• Adjustable output voltage range 1-32VDC
• Adjustable output current range 0-30A
• Voltage load regulation = 50mV
• Current load regulation = 100mA
• Regulation voltage line = 20mV
• Current line regulation = 50mA
• Output ripple and noise = 5mV
• Voltage setting resolution 10mV
• Voltage meter digit and accuracy
• 4 digit ± LED display (0.2% 3 counts)
• Current setting resolution 10mA
• Digit and Accuracy of Current Meter
• 3 digit ± LED display (0.2% 3 counts)
• Additional Output Voltage N / A
• Auto range (with) No
• Constant current mode Yes
• Remote programming Yes
• USB connection type (optional LAN)
• Preset program 3 preset
• Internal program Yes
• Commend Set SCPI
• Optimal efficiency = 85%
• Cooling method Thermostatic control Fan from zero to maximum speed
• Protections Overload, Short circuit by constant current, Output tracking Over voltage,
• Floating earth overtemperature Yes
• CE approvals EMC: EN 55011, 55022 LVD: EN 60950, 61010

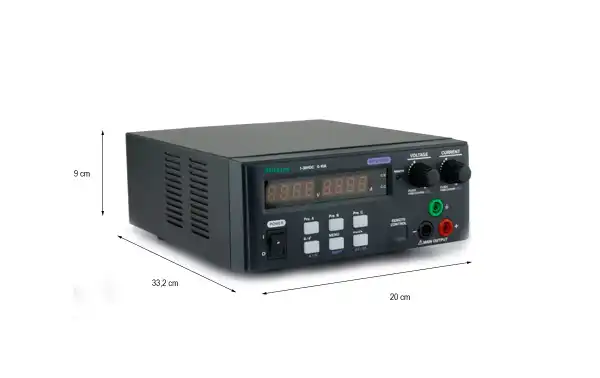

• Dimensions (W x H x D) 200x90x333mm
• Weight 3.8 kg
