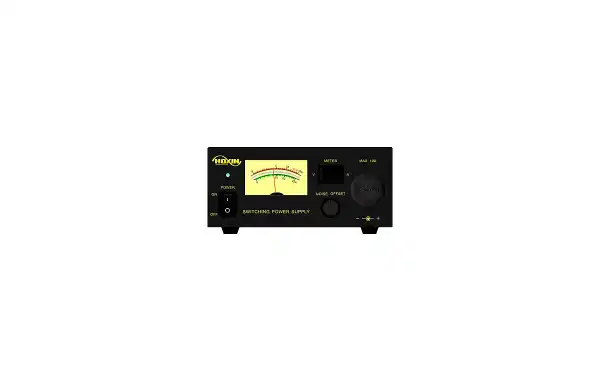

LAFAYETTE TD14SS30 Switching Power Supply. 30 Amps.

LAFAYETTE TD14SS30

LAFAYETTE TD14SS30 Switching Power Supply. 30 Amps.
High-efficiency device designed and constructed to minimize the disturbance of electromagnetic nature.
The controls are easy to use, while the instrument is easy to read analog voltage and current output.

Features

• Input voltage (AC): 220V - 50Hz
• Output voltage (DC): 13.8Vdc
• Short-circuit protection and current limiting
• Output current: 30A max - 20A continuous
• Ripple: less than 80mVp-p at rated load
• Fuse: 5A
• Features: single voltmeter / ammeter backlit
• Dimensions (WxHxD): 150 x 70 x 220 mm
