Reference EL0121E

EL011È Proteje mains, antenna and telephone modem

The 0112 and Proteje mains, antenna and telephone modem Assure one complete protection against surges and tips of tension produced by electrical storms, short circuits, static electricity, etc. It avoids interferences and the effects of the electr

We're sorry, this item is no longer available.

Description EL0121E

DESCRIPTION OF THE PRODUCT

ref: EL011È

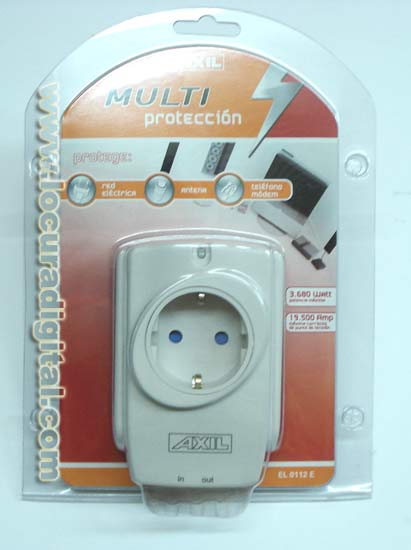

The 0112 and Proteje mains, antenna and telephone modem

It assures one complete protection against surges and tips of tension produced by electrical storms, short circuits, static electricity, etc.

It avoids interferences and the effects of the electrical noise (responsible for errors and loss of data, disconnections nonwished of line, interruptions of signal, etc.

Protection of the apparatuses connected to the installation of the antenna and the telephone line

It has an indicator that it indicates that the circuits of protection estan verified and ready to work.

CHARACTERISTICS

Points Current nominal: 16 A
Nominal tension: 250 V - 50 Hertz
Maxima energy: (H-N, H-G, N-G) 714 Joules
Maxima current: 19500 A
Voltage: "tip" 6 kV
Response time: < 1 ns
Filter against noises in line and transientes:
- Rank of frequency: 150 Khz - 100 Mhz
- Absorption: up to 40 dB
