Reference EL0170E

AXIL EL0170E electrical protection base 7 output

AXIL EL0170E electrical protection base 7 output Ensures complete protection against voltage surges and spikes caused by lightning strikes, short circuits, static electricity, etc. Avoids interference and the effects of electrical noise (

We're sorry, this item is no longer available.

Description AXIL EL0170E

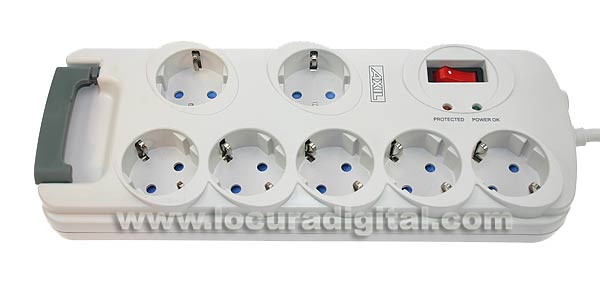

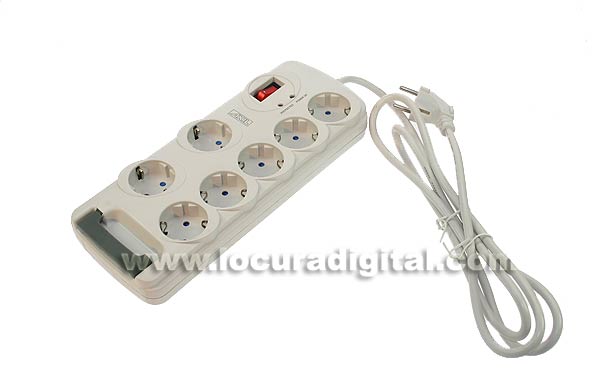

AXIL EL0170E electrical protection base 7 output
Ensures complete protection against voltage surges and spikes caused by lightning strikes, short circuits, static electricity, etc.

Avoids interference and the effects of electrical noise (responsible for errors and data loss, disconnects unwanted line breaks in signal, etc..

AXIL EL0170E

AXIL EL0170E

AXIL EL0170E


FEATURES

AXIL EL0170E electrical protection base 7 output
Ensures complete protection against voltage surges and spikes caused by lightning strikes, short circuits, static electricity, etc.

Avoids interference and the effects of electrical noise (responsible for errors and data loss, disconnects unwanted line breaks in signal, etc..

Rated: 10 A
Rated voltage: 250 V - 50 Hz
Maximum power: 2300 W at 230 V
Maximum Voltage: 775 V
Max Power: (HN, HG, NG) 714 Joules
Maximum current:
- Base type: 6500 A
- Full Type: 19500 A
Voltage: "peak" 6 kV
Response time: <1 ns
Line noise filter and transient:
- Frequency range: 150 Khz - 100 Mhz
- Absorption: up to 40 dB
