ISSUE ALAN MIDLAND NEPTUNE 100

ISSUE ALAN MIDLAND NEPTUNE Neptune has all the characteristics of quality, robustness and reliability that the most cutting-edge technology can offer. It transmits and receives in all the international channels of the nautical band VHF with total sec more Manufacturer: midland Reference NEPTUNE100

not available
191,18 incl. VAT
158,00€ w/o VAT
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

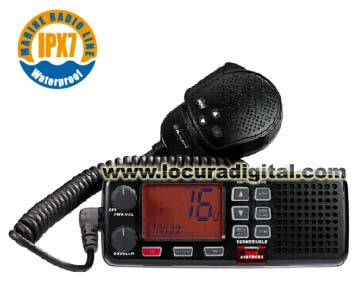

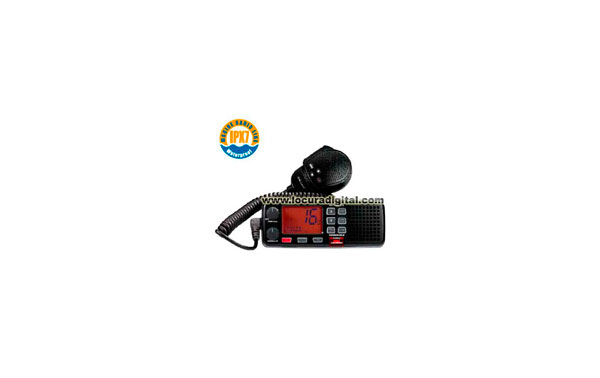

ALAN MIDLAND NEPTUNE 100!

Adds all the canals international available (at present in use.)

High power of exit 25W that him allows keep one in contact to big distance and power short of 1 W to reduce the consumption in the communications to short distances.

Commandos main duplicated in the microphone for a use more more immediate - selection of canals boosts of transmission and call immediate canal 16.

Display LCD retroiluminado and contrast adjustable indicates constantly the parameters and the tightenings made in the team and allows a visualization optimal.

Possibility of memorize 20 canals deprived by the programmer optional PRG¬NEPTUNE100. Remember that the use as canals private estregulado by the authorities national competent; one advises therefore introduce them to the Captaincy from port. Formidable provisions of resistor to the water in keeping with the standard IPX7.

Key of call to the canal 16 - allows access instantaneous to the canal 16 (the canal marine universal been used as canal of help )

Connection NMEA - by the cable appropriate one can connect easily the team to a module receiving GPS optional that is compatible NMEA 0183. In this condition, the display indicate them coordinates (latitude and length) and the hour updated automatic mind

Call selective digital DSC - for the safety in the sea and to do a fast callback, the team is able effect operations DSC (Digital Selective Calling) thanks to the unit DSC specifies mind projected in keeping with the standard ITU R, requirement M493-1 Or class MR.

Notebook MMSI Simplifies the shipment of the calls DSC to the addressees more more frequently called and allows display his name in the display

Assembly in support orientable stops a positioning stable and comfortable in any condition.

Connection of a loudspeaker external (optional) to listen to the communication far from the location of the radio.

Accessories included

Support of fixing power cord support stops the microphone.

One Provides with:

Unit of radium, microphone and support, cable GPS external, power cord, support of assembly and screws of fixing.  Manual in Spanish, Italian, groins and aleman

MIDLAND NEPTUNE100



FEATURES

Card technical
Generals
 Canals 57 canals international
 Generation of frequency Synthesized PLL
 Coverage of frequency
 TX From 156.025 to 157.425 MHz
 RX From 156.300 to 162.000 MHz
 Impedance of aerial 50 Ohm
 Food 12 Vcc
 Temperature of work -15ºC to 55ºC
 Sizes 72x177x146 mm
 Weight 1.380 Kg (only team )
Transmitter
 Power of exit Registration (Hi) 25 Brings Down (Low) 1W
 Modulation FM
 Microphone Kind condenser
 Distortion audio 5%
Receiver
 Sensitivity < 0.5µV to 20dB SINAD
 Selectivity 0,8 dB
 Sensitivity Squelch Threshold - 12dBµV (FEM )
 Radiation canal adjacent 70dB
 Boosts exit of audio >2W on 8 Ohm
 Distortion audio <10%
