ICOM IC GM1600E SPECIAL VHF WALKIE GMDSS LIFEBOATS !! Approved for LIF

ICOM IC GM1600E SPECIAL VHF WALKIE GMDSS LIFEBOATS !! Approved for LIF

ICGM1600EKIT
ICGM1600EKIT ICGM1600EKIT ICGM1600EKIT ICGM1600EKIT ICGM1600EKIT ICGM1600EKIT ICGM1600EKIT ICGM1600EKIT ICGM1600EKIT ICGM1600EKIT ICGM1600EKIT

Referencia: ICGM1600EKIT (ICOM)

avalaible

683,05 incl. VAT

564,50€ w/o VAT

BUY NOW

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

DESCRIPTION of the PRODUCT

 !! AUTHORIZED FOR LIFEBOATS!



!! KIT WITH TWO BATERIAS!

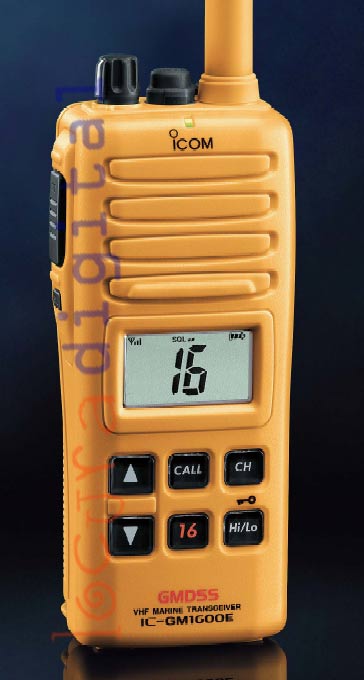

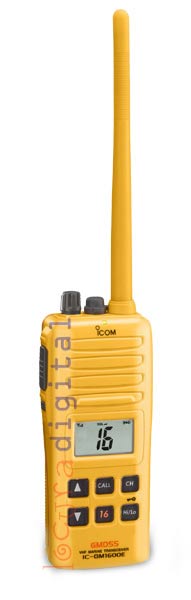

ICOM IC GM1600E SPECIAL LIFEBOATS
The GMDSS portable stops the survival

!! HOMOLOGACION 53!
BATERIAS SEALED BP234 And BP224 RECHARGEABLE
BP 234 BATERIA NOT RECHARGEABLE
Complies with the most stricter requirements of environment for radiums of superviviencia
Keyboard big with bellboy of working positive
Screen LCD with big angle of vision
Complies with the MED 96/98/EC.   Rank of frequencies: 156.000/156.875MHz. Power of exit: 2W/1W


INCLUDES:

1 BATERIA BP 234 PRECINTADA DE LITIO 9V/ 330 mAh + 1 BATERIA BP 224 Nor Cd 7,2V/ 750 mAh + CARGADOR LENTO DE SOBREMESA BC 158 + BC 147+ CLIP DE SUJECCION MODELO COCODRILO MB103Y EL WALKIE LLEVA LA ANTENA FIJA.

 ICOM IC GM1600E ESPECIAL  BOTES SALVAVIDAS

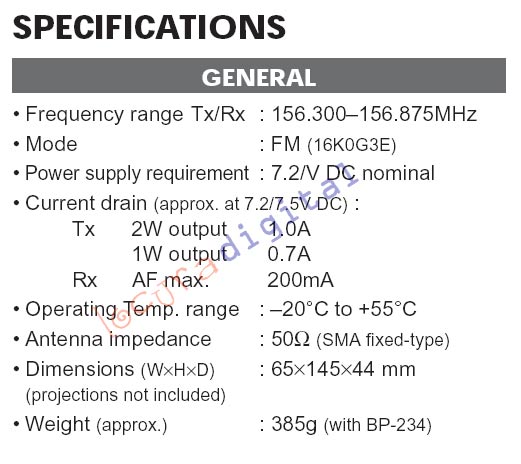

FEATURES

  Rank of frequencies: 156.000%u2013156.875MHz
Manners: FM (16K0G3E )
Food required: 13.8V DC 5%
Cosumo (at 13.8V DC:)
Tx: 1.2F0.7A (2W/1W of exit;)
RX: 0.2A (audio max.)
Rank of temperature: %u201320C to +55C
Impedance of the aerial: 50 Ohm (SMA fixed )
Sizes (projections not incluídas:)
65 (L) 45 (A) 4 (P) mm
Weight (aprox.): 385gr

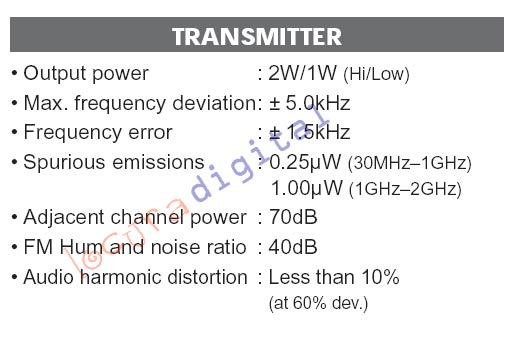

Power of exit: 2W/1W
Max. Deviation of frequency: .0kHz
Error of frequency: .5kHz
Emissions spurious: 0.25W (30MHz-1GHz;) 1.00W (1GHz-2GHz;)
power of the canal adyaente: 70dB
Modulation residual: 40dB
Distortion harmónica of audio (at the 60% of deviation:) <10%

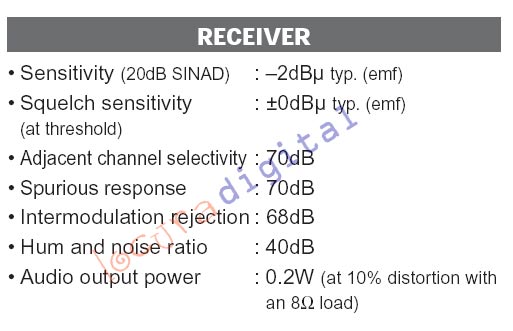

Sensitivity: %u20132dB (emf: To 20dB SINAD )
Sensitivity of the silencer: 0dB (emf )
Selectivity of canals adjacent: 70dB
Answer spurious: 705dB
Intermodulación: 68dB
Noise: 405dB
Power of audio: 0.2W (to 10% of distortion /8 Ohm )
