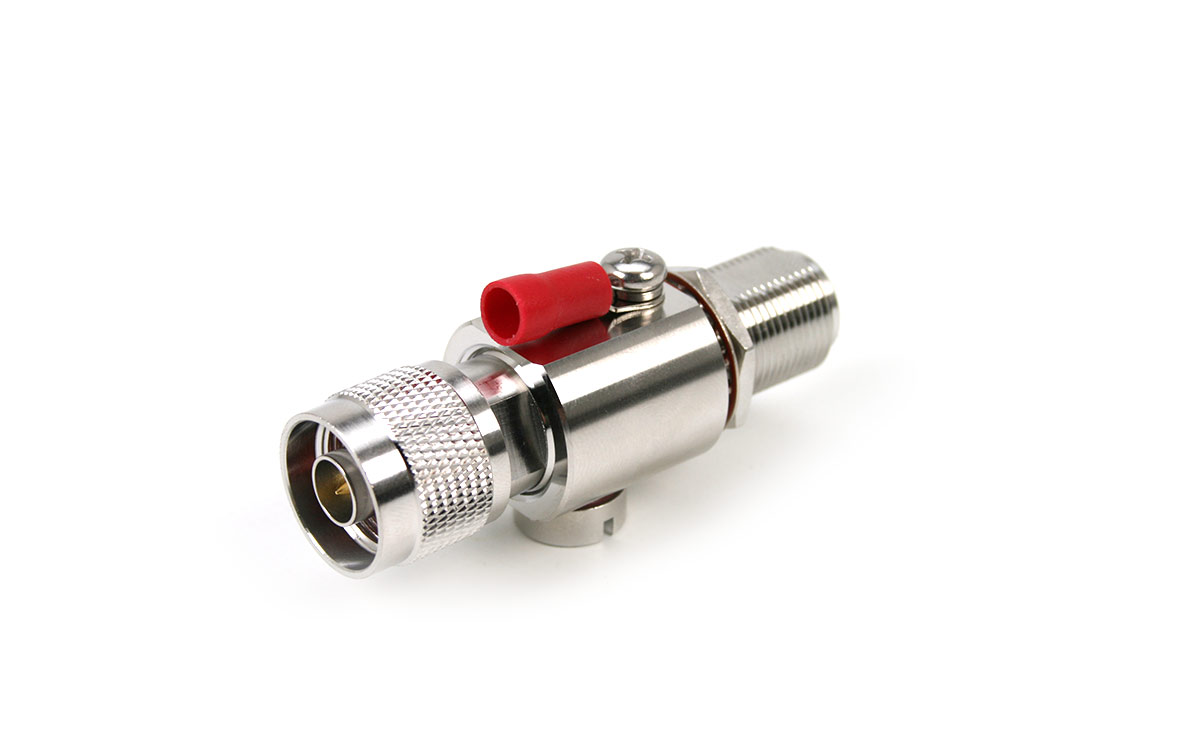

CON-4378 Coaxial protector connectors N MALE - N FEMALE.
CON-4378 Coaxial DC lightning protector at 1000 Mhz max.400W. The coaxial lightning surge protector protects your valuable communication equipment from lightning strikes.
Make the first review41,14€ VAT included 34,00€ excl. VAT
Description MIRMIDON CON4378
CON-4378
The coaxial lightning surge protector protects your valuable communication equipment from lightning strikes. Coaxial lightning protector Frequency DC - 1000 Mhz. Maximum power 400W. Connectors 1 x N Female to 1 N Male

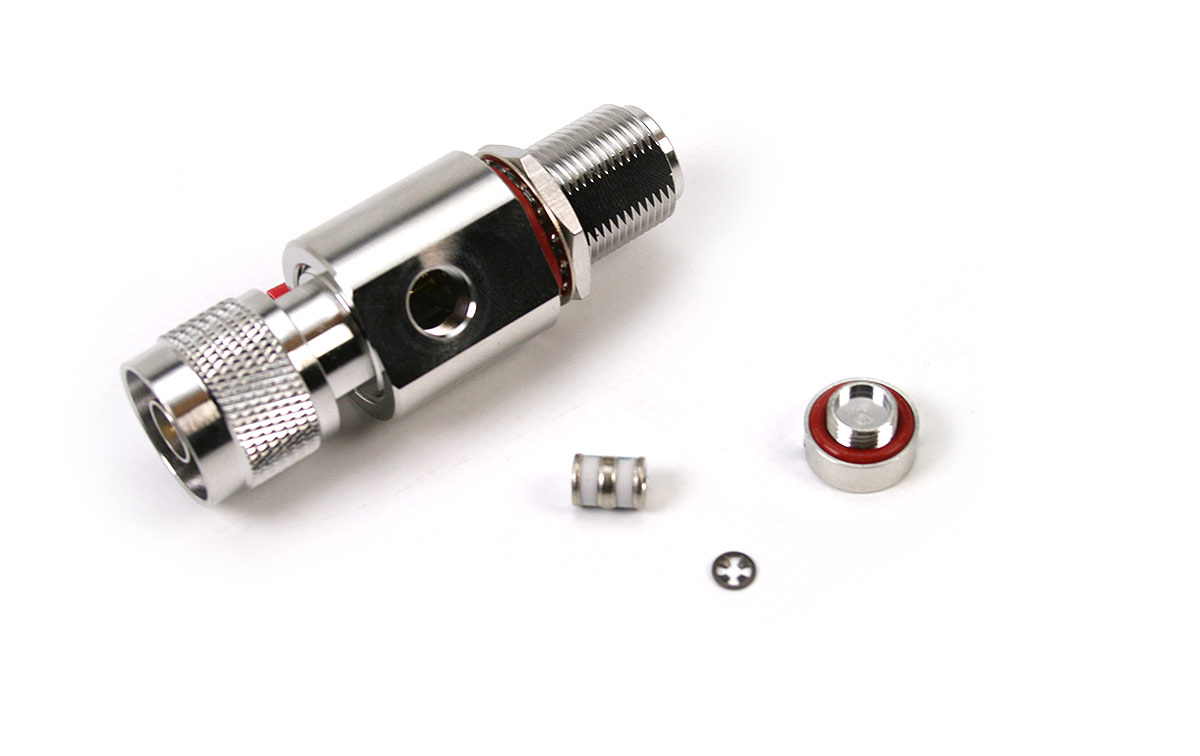

The coaxial lightning surge protector protects your valuable communication equipment from lightning strikes. Function: The lightning protector is the element that prevents electrical discharges from storms from entering the installation and reaching the installed elements, for example mast amplifier, power supplies, radio station, etc. The arrester absorbs the electricity and diverts it to ground. The surge protector is designed for safety and has a surge discharge element is a gas diode inside.
The device can perform surge recovery and discharge actions repeatedly as needed, without needing to be replaced thanks to its internal gas dido.
The ground cable with a minimum section of 3 mm is recommended.
Note: If it is placed outside, put a place protected from the rain.
- 1 Shield CON-4378
Features
- Frequencies DC-1000Mhz
- Material Nickel plated
- I live bathed in gold
- HF/ VHF /UHF bands
- Impedance 50 ohms
- Gas diode (2R-230
- Maximum power 400 watts
- Connector 1 N Female
- N Male Connector
- VSWR 1.1
- Star screw ground connector
- Lost 0.2dB
- Discharge capacity: 6000A
- Retention discharge capacity: DC350v ± 20%
- Insulating resistance DC100v:
- Measures 68.7 x 24.8 x 24.8mm
- Weight 99 grams.
