DIAMOND SP3000 Antenna protector connectors N Female - N Female

SP3000 DIAMOND ANTENNA original Japan. Lightning protector in antennas Frequency: DC - 3000 MHz SWR: less than 1.1 Insertion loss: less than 0.2 dB Max Rated power: 200w PEP Connector: Type N female - female N Type Impulse Discharge W more Manufacturer: diamond Reference SP3000 EAN 4936312065108

diamond
DIAMOND SP3000 Antenna protector connectors N Female - N Female DIAMOND SP3000 Antenna protector connectors N Female - N Female DIAMOND SP-3000 Connectors N Female - N Female Diamond antenna protector Antenna protector connectors N Female - N Female
DIAMOND SP3000 Antenna protector connectors N Female - N Female
available
44,50 incl. VAT
36,78€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

MSP-3000 DIAMOND

SP3000 DIAMOND ANTENNA original Japan. Lightning protector in antennas. When the protector detects a large increase in current or voltage, it automatically directs it to ground, thus preventing equipment overload. The arrester absorbs the electricity and diverts it to ground. The surge protector is designed for safety and has a surge discharge element is a gas diode inside.
The device can perform surge recovery and discharge actions repeatedly as needed, without needing to be replaced thanks to its internal gas dido.
1.-To use the protector correctly, it must be installed between the coaxial cables and/or as close as possible to the transceiver/receiver.
2.-For a correct connection to the grounding terminal, use a copper cable with a diameter of 2.5 to 3mm. The end of the grounding copper wire must be buried at a minimum depth of 1 meter. Or connect it to a verified and effective ground connection.

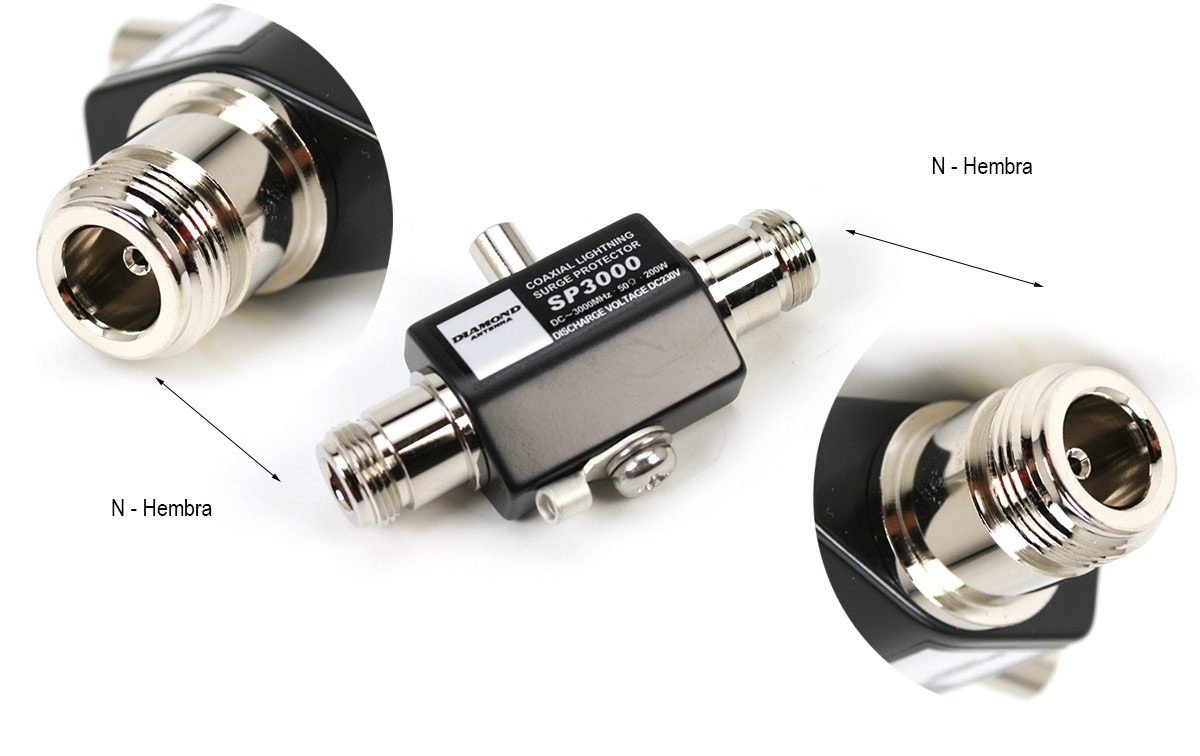

Connectors N Female - N- Female

Protector antena conectores N Hembra - N Hembra

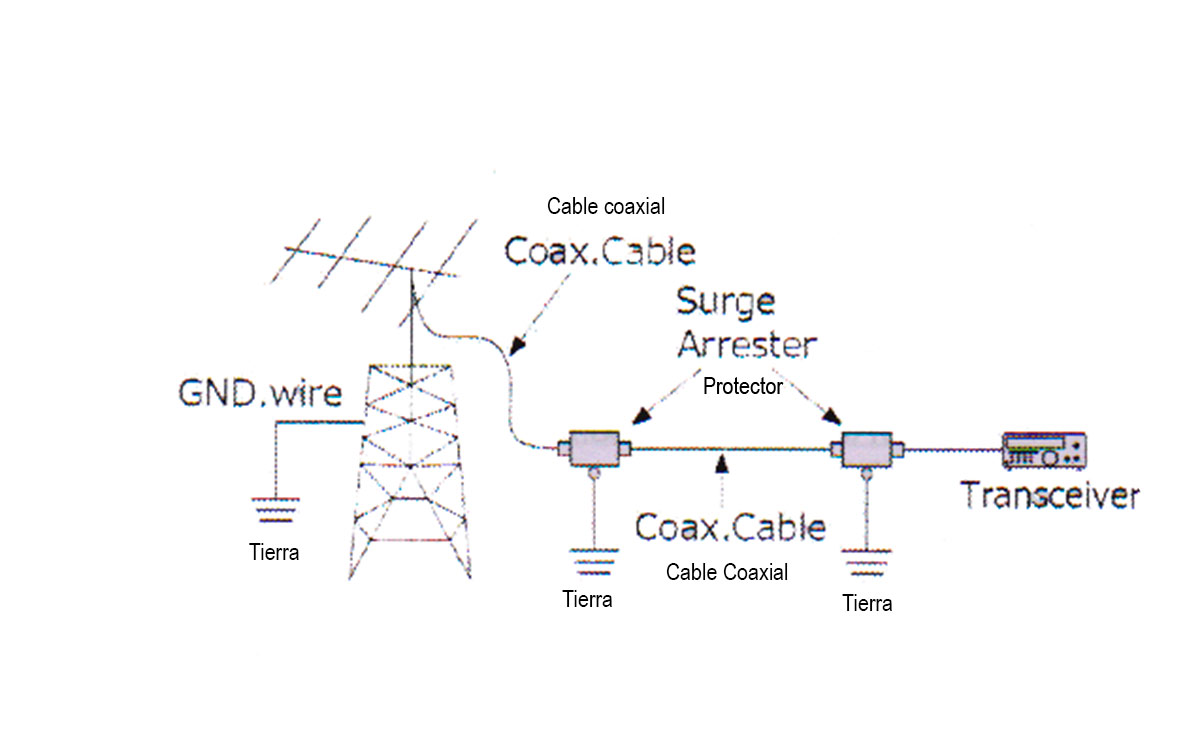

Esquema de montaje

Features

  • Frequency: DC-3000MHz
  • SWR: less than 1.1
  • gas diode
  • Insertion loss: less than 0.2 dB
  • Max Rated Power: 200w PEP
  • Connector: N type female - N female
  • Impulse Discharge Wave Voltage: 1000v
  • Impulse wave discharge capacity: 6000A
  • Impulse of discharge wave holding capacity: DC230v ± 20%
  • Insulator Resistance DC100v: More than 10,000 ohms
  • Weight: 0.25 lbs. / 113g
  • Dimensions: 3.1"x1.6"x0.8" / 78Wx41Hx20D mm
