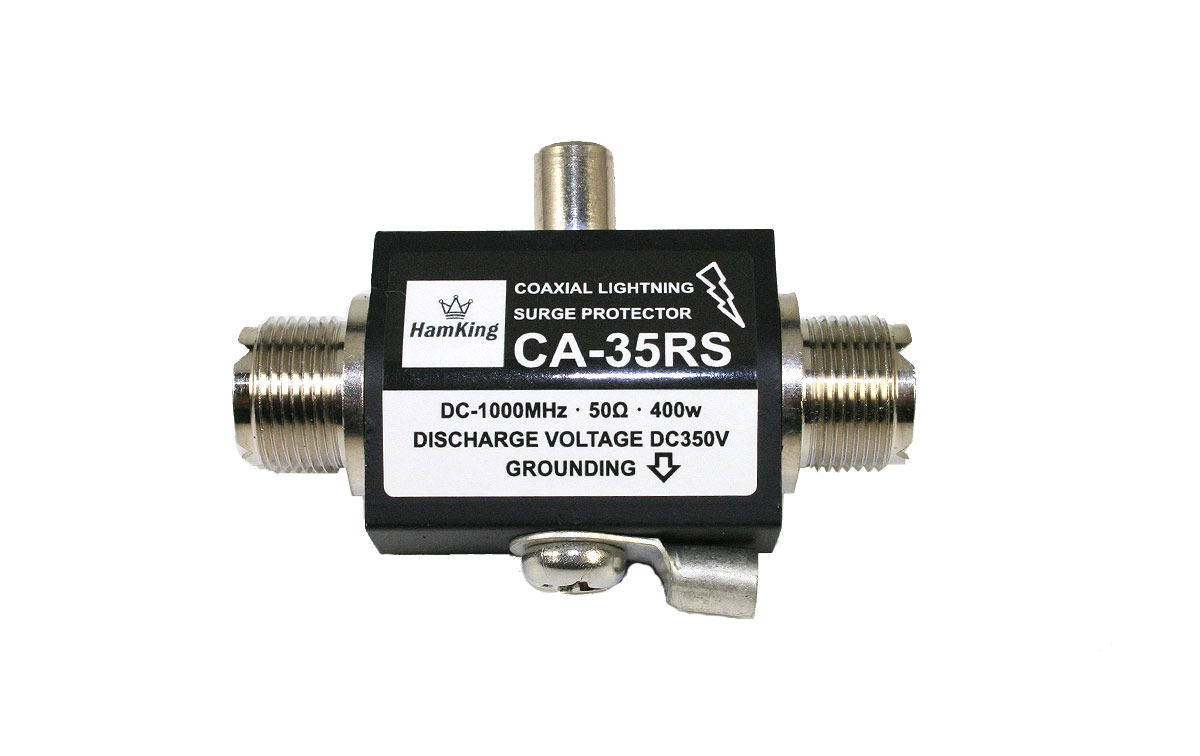

HKCA35RS HAMKING Coaxial protector with DC rays at 1000Mhz max.400W
HKCA35RS HAMKING Coaxial protector with DC rays at 1000Mhz max.400W. The HamKing HKCA-35R coaxial surge protector protects your valuable communication equipment from lightning.
Make the first review26,74€ VAT included 22,10€ excl. VAT
Description HAMKING HKCA35RS
HKCA35-RS

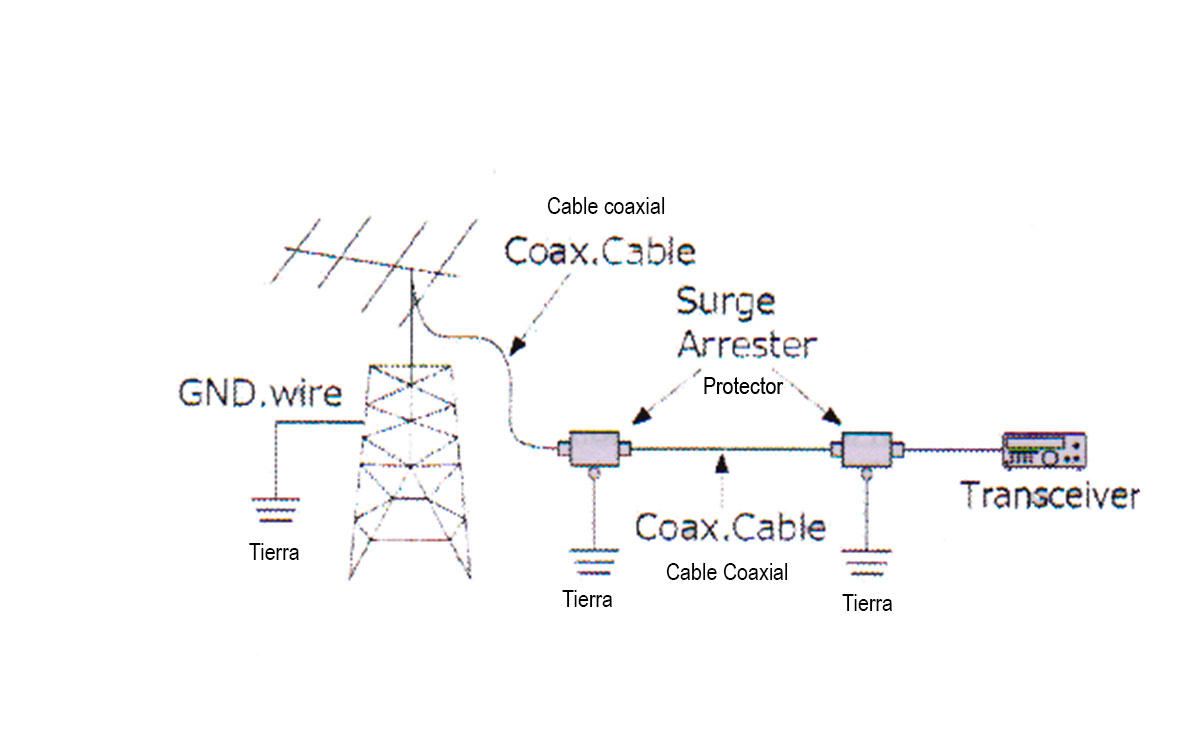

Coaxial DC lightning protector at 1000 Mhz max.400W. The HamKing HKCA-35R coaxial lightning surge protector protects your valuable communication equipment from lightning strikes. Function: The lightning protector is the element that prevents electrical discharges from storms from entering the installation and reaching the installed elements, for example mast amplifier, power supplies, radio station, etc. The arrester absorbs the electricity and diverts it to ground. The surge protector is designed for safety and has a gas surge discharge element inside which can discharge and ground the surge when the surge exceeds a specified level.
The device can perform surge recovery and discharge actions repeatedly as needed, without needing to be replaced thanks to its internal gas dido.
The ground cable with a minimum section of 3 mm is recommended.
Note: If it is installed outside, place it in a place protected from the rain.

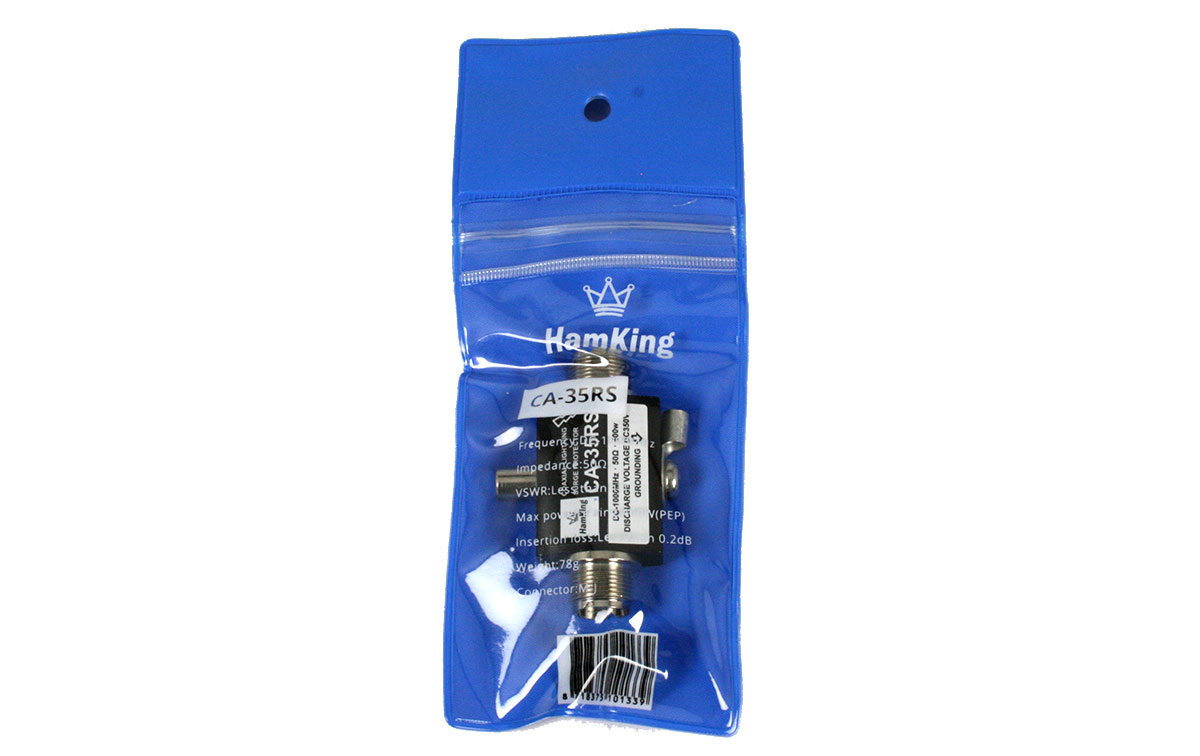

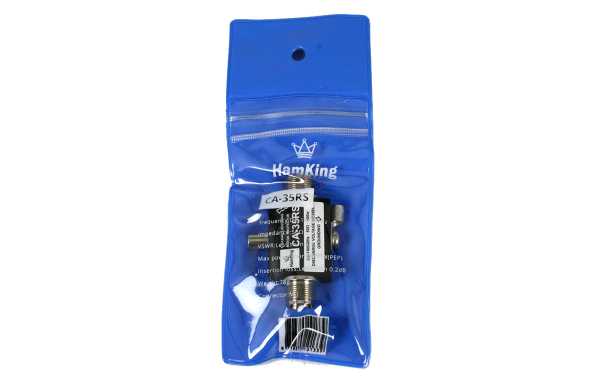

- 1 HKCA-35RS Shield
Features
- Frequencies DC-1000Mhz
- HF/ VHF /UHF bands
- Impedance 50 ohms
- Maximum power 400 watts
- 2 PL Female Connector
- VSWR 1.1
- Star screw ground connector
- Lost 0.2dB
- Discharge capacity: 6000A
- Retention discharge capacity: DC350v ± 20%
- Insulating resistance DC100v:
- Measures 65 x 45 x 20mm
- Weight 78 grams.
