Comet CS400R Coaxial protector PL female - PL female

CS400R COMET female/female PL coaxial protector. The lightning protector is designed to protect your transceiver and/or receivers from a high amperage current discharge caused by a nearby lightning strike. more Manufacturer: comet Reference CS400R EAN 8032182560852

comet

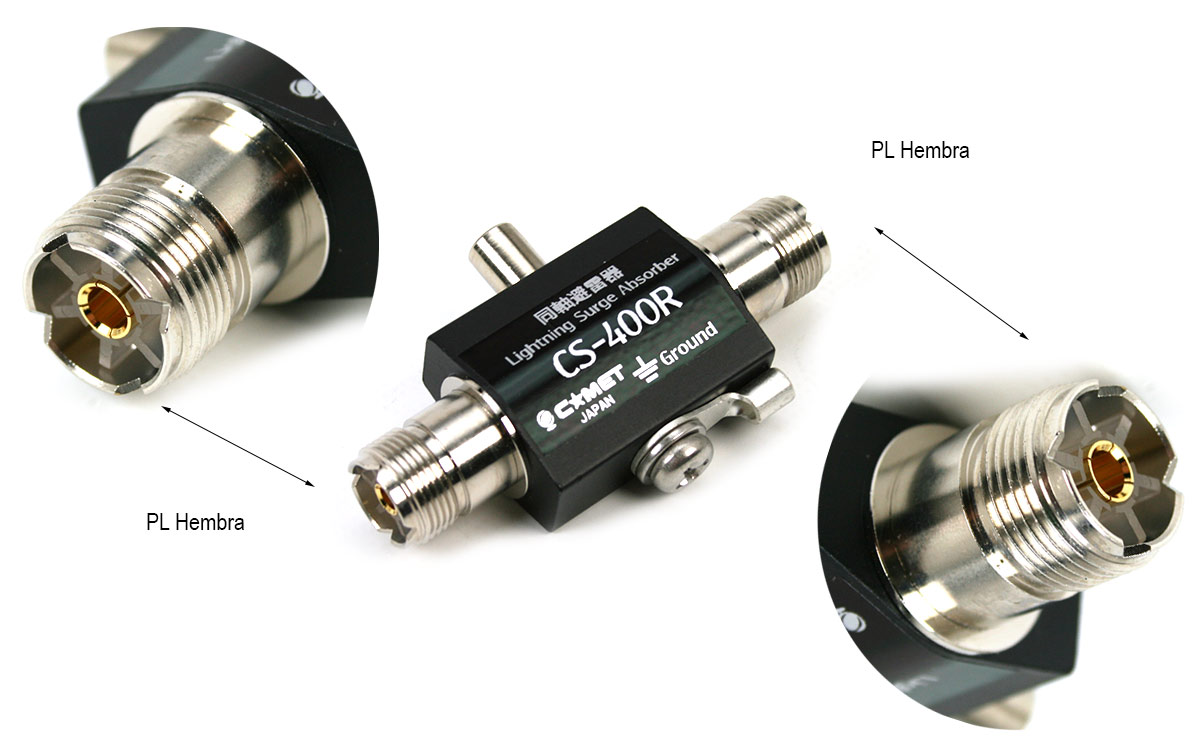

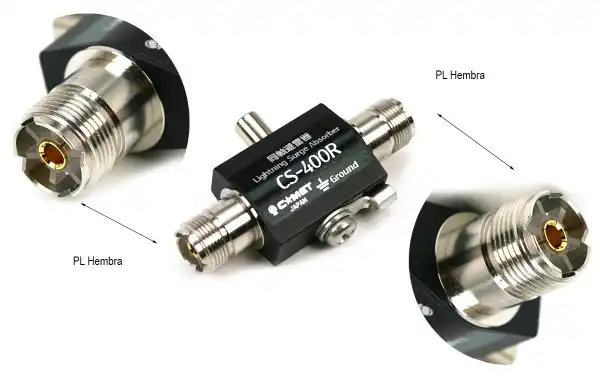

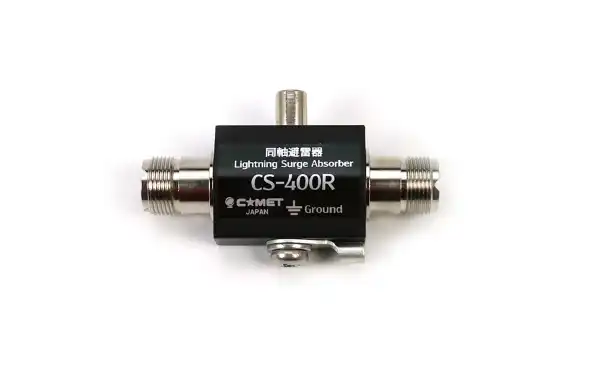

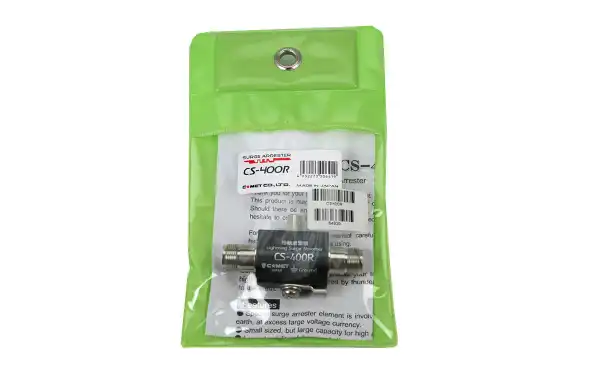

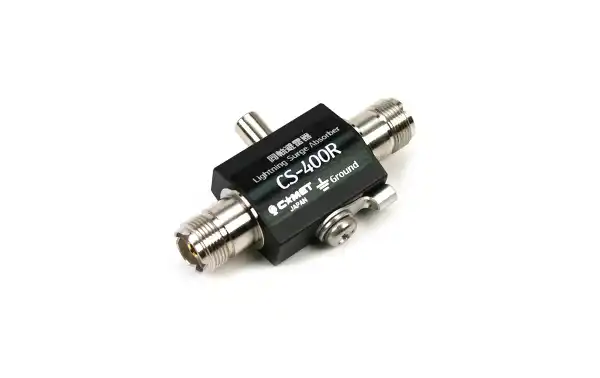

Comet CS400R Coaxial protector PL female - PL female Coaxial protector PL female - PL female PL female - PL female connectors Comet CS400R reduced size Coaxial protector PL female - PL female Installation scheme Comet CS400R
Comet CS400R Coaxial protector PL female - PL female
available
43,56 incl. VAT
36,00€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.
head>

COMET CS400R

Original COMET coaxial protector with female PL connector to female PL connector. When the protector detects a large increase in current or voltage, it automatically directs it to ground, thus preventing equipment overload.
Great capacity to withstand high currents in a compact size. Great duration, thousands of possible downloads. Extremely sensitive against any excess current. Protector against atmospheric discharges manufactured with a coaxial type core with low insertion losses and high bandwidth.

comet protector coaxial pl hembra/hembra

kit content
  • 1 CS400R antenna protector

comet protector coaxial pl hembra/hembra

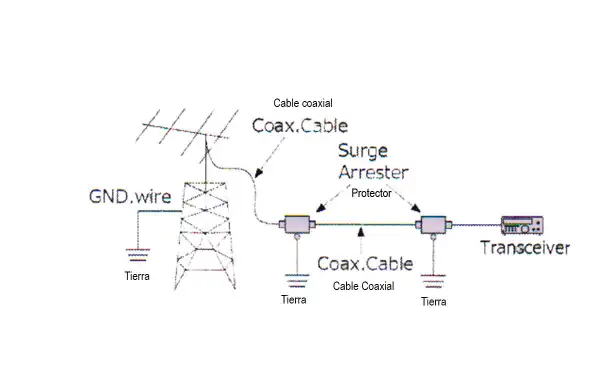

protector de antena esquema de montaje

Great capacity to withstand high currents in a compact size.
To provide the tower with adequate grounding, make the connection to it using copper (preferably) or thick aluminum wires in order to maintain a lower resistance measurement with ground. The protector is very effective against sudden increases in voltage, however it is not an absolutely perfect protection against excessive currents such as direct lightning strikes in our radiant system. 1.- To use the protector correctly, it must be installed between the coaxial cables and/or as close as possible to the transceiver/receiver.

Features

  • Frequencies DC 500Mhz
  • material nickel
  • I live bathed in gold
  • HF/ VHF /UHF bands
  • Impedance 50 ohms
  • Maximum power 500 watts
  • Connector 1 PL Female
  • Connector 1 PL Female
  • VSWR 1.1
  • Star screw ground connector
  • Lost 0.1 db
  • Discharge capacity: 6000A
  • Retention discharge capacity: DC350v ± 20%
  • Insulating resistance DC100v:
  • Measures 66 x 41 x 20mm
  • Weight 80 gr.
