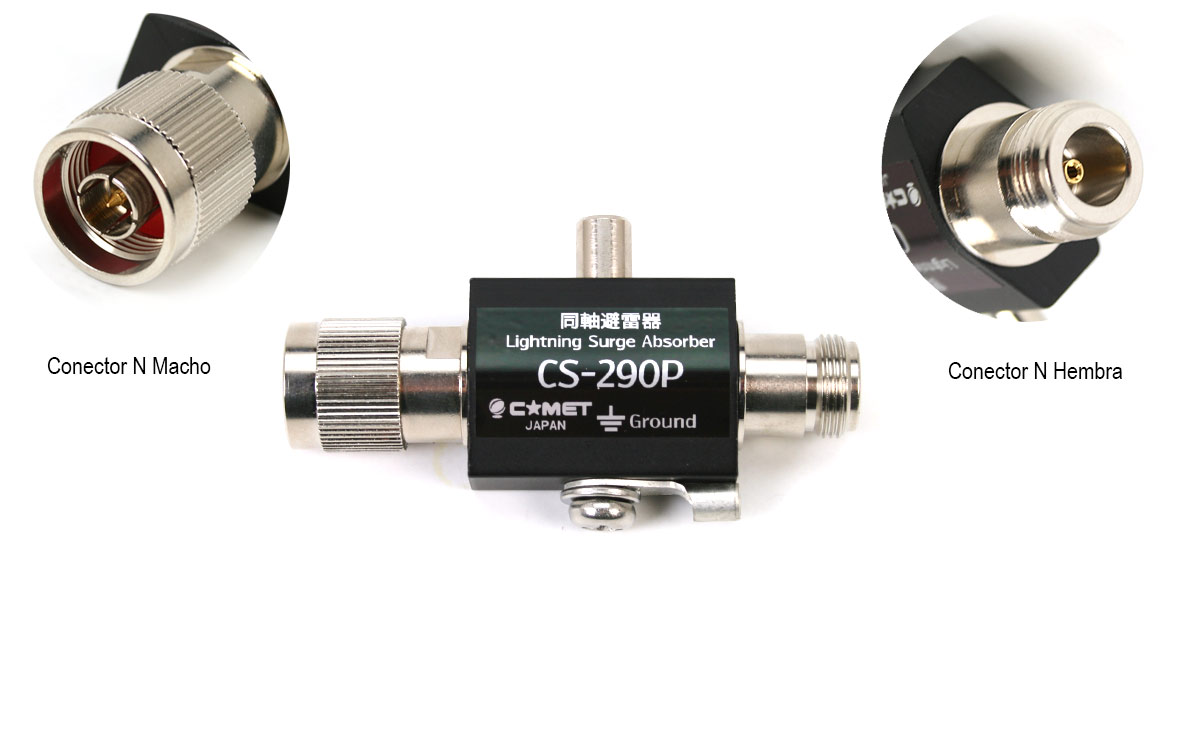

COMET CS290P Coaxial N Male/Female Antenna Protector

Original COMET coaxial protector with N male connector and N female connector. When the protector detects a large increase in current or voltage, it automatically directs it to ground, thus preventing equipment overload. Great capacity to withstand h more Manufacturer: comet Reference CS290P

available
41,97 incl. VAT
34,69€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

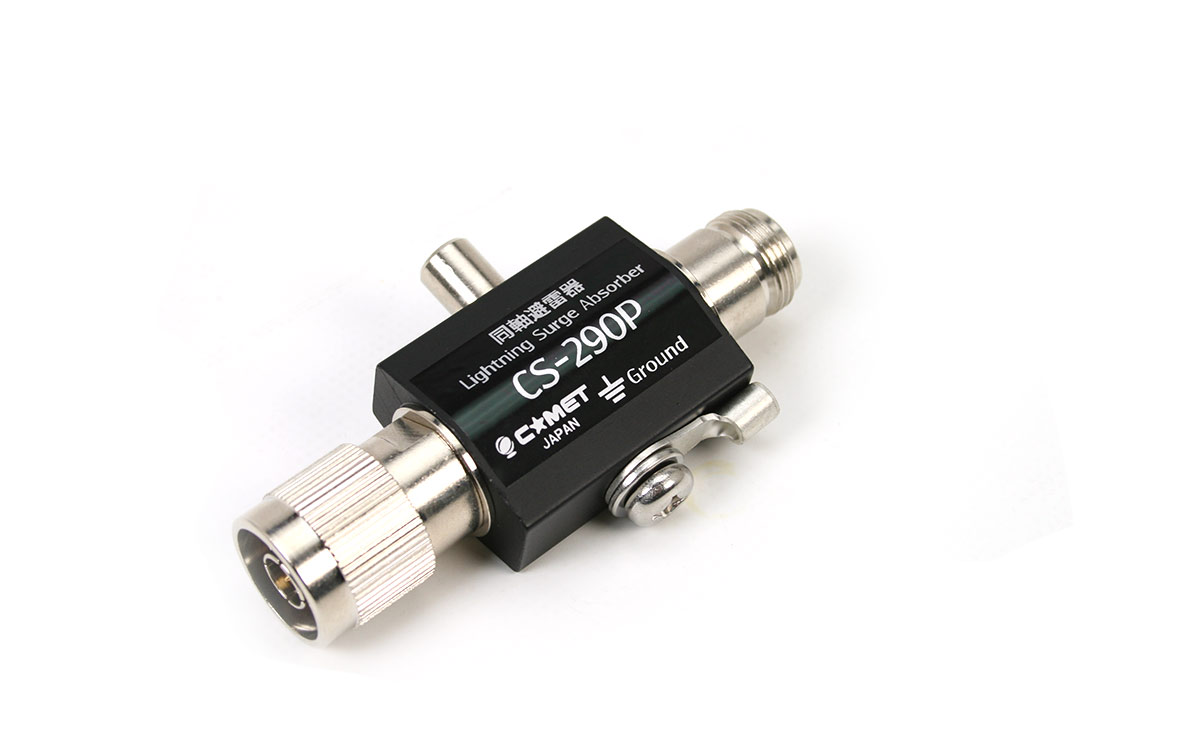

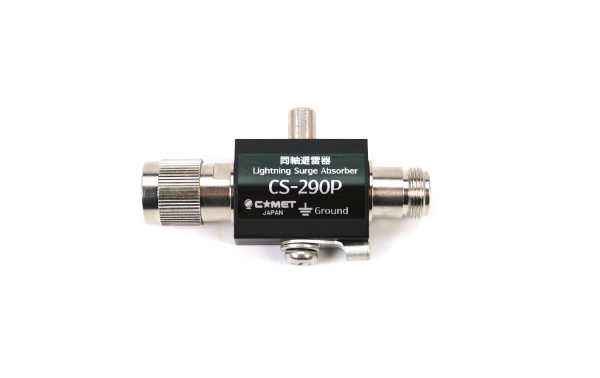

COMET CS290P

When the protector detects a large increase in current or voltage, it automatically directs it to ground, thus preventing equipment overload.
Great capacity to withstand high currents in a compact size. Great duration, thousands of possible downloads. Extremely sensitive against any excess current. Protector against atmospheric discharges manufactured with a coaxial type core with low insertion losses and high bandwidth.
How to use:
1.-To use the protector correctly, it must be installed between the coaxial cables and/or as close as possible to the transceiver/receiver.
2.- For a correct connection to the grounding terminal, use a 2.5 to 3mm diameter copper cable. The end of the grounding copper wire must be buried at a minimum depth of 1 meter. Or connect it to a verified and effective ground connection.
3.- The protector is not waterproof, for outdoor use it must be properly protected by a waterproof box or similar.
4.- Figure 1 shows us a recommended installation using 2 protectors and 3 grounding points, thus providing great protection against discharges. When the protector detects a large increase in current or voltage, it automatically directs it to ground, thus preventing equipment overload.
Great capacity to withstand high currents in a compact size.

To provide the tower with adequate grounding, make the connection to it using copper (preferably) or thick aluminum wires in order to maintain a lower resistance measurement with ground. The protector is very effective against sudden increases in voltage, however it is not an absolutely perfect protection against excessive currents such as direct lightning strikes in our radiant system.

VERY IMPORTANT CAUTION

NO, install, manipulate or touch the protector or the systems connected to it (antennas, turret, transceiver cables, receiver, etc.) during or just before a storm, in the event of an atmospheric discharge, you could be seriously injured and even ' cause death!

protector de antena esquema de montaje

kit content
  • 1 x CS290P Antenna Shield

El protector contra descargas atmosféricas esta diseñado para proteger su transceptor y/o receptores de una descarga de corriente de alto amperaje producida por la caída de un rayo en las inmediaciones de su instalación, siempre que le tengamos realizada y conexionada una correcta toma a tierra.

protector de antena esquema de montaje

Features

  • Frequencies DC 500Mhz
  • material nickel
  • I live bathed in gold
  • HF/ VHF /UHF bands
  • Impedance 50 ohms
  • Maximum power 500 watts
  • Connector 1 N Female
  • N Male Connector
  • VSWR 1.1
  • Star screw ground connector
  • Lost 0.1 db
  • Discharge capacity: 6000A
  • Retention discharge capacity: DC350v ± 20%
  • Insulating resistance DC100v:
  • Measures 86 x 41 x 20mm
  • Weight 130 gr.
