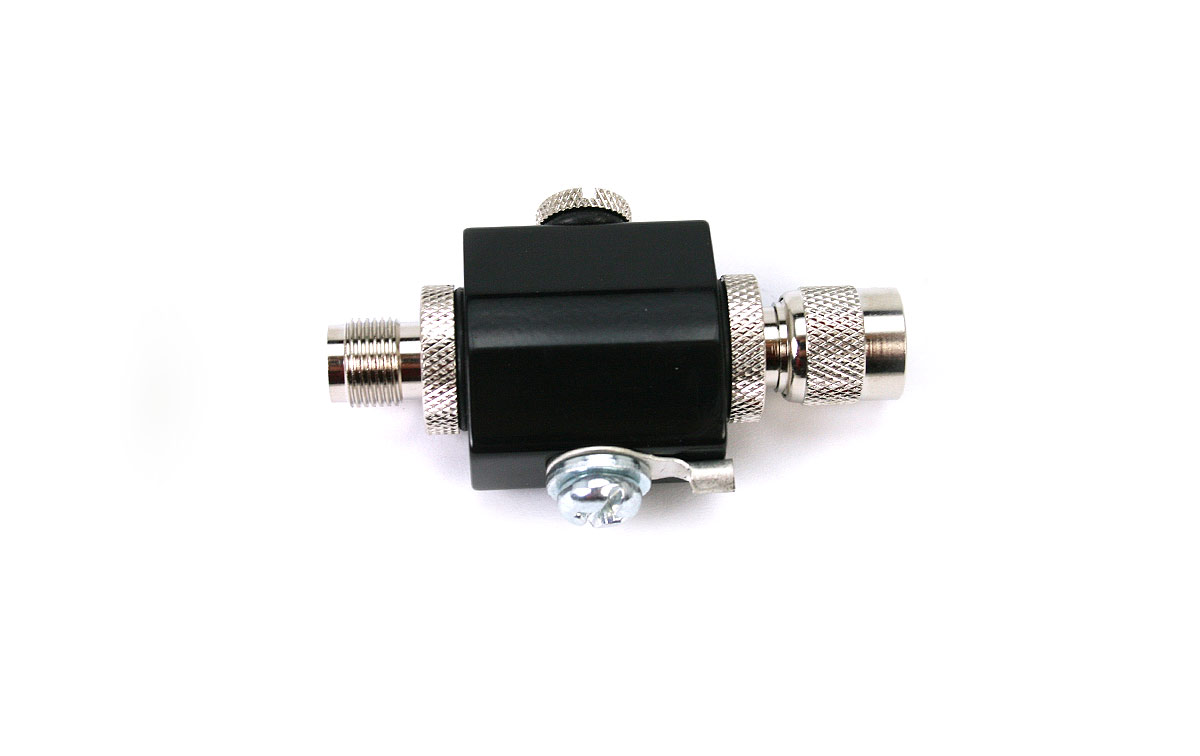

CA35TNCMF Lightning surge protector connector TNCMACHO-TNCHEMBRA
CA35TNCMF Protector against lightning discharges connector TNC MALE - TNC FEMALE. Coaxial DC lightning protector at 500 Mhz Maximum power 400W. The coaxial lightning surge protector protects your valuable communication equipment from lightning strike
Make the first review55,66€ VAT included 46,00€ excl. VAT
Description CA35TNCMF
HKCA35-TNCCMF
Coaxial DC lightning protector at 500 Mhz Maximum power 400W. The coaxial lightning surge protector protects your valuable communication equipment from lightning strikes. The lightning protector is the element that prevents electrical discharges from storms from entering the installation and reaching the installed elements, for example mast amplifier, power supplies, radio station, etc. The arrester absorbs the electricity and diverts it to ground.
The ground cable with a minimum section of 3 mm is recommended.
Note: If it is installed outside, place it in a place protected from the rain.
- 1 HKCA-35-TNCMF Shield
Features
- Frequencies DC-500Mhz
- HF/ VHF /UHF bands
- Impedance 50 ohms
- Maximum power 400 watts

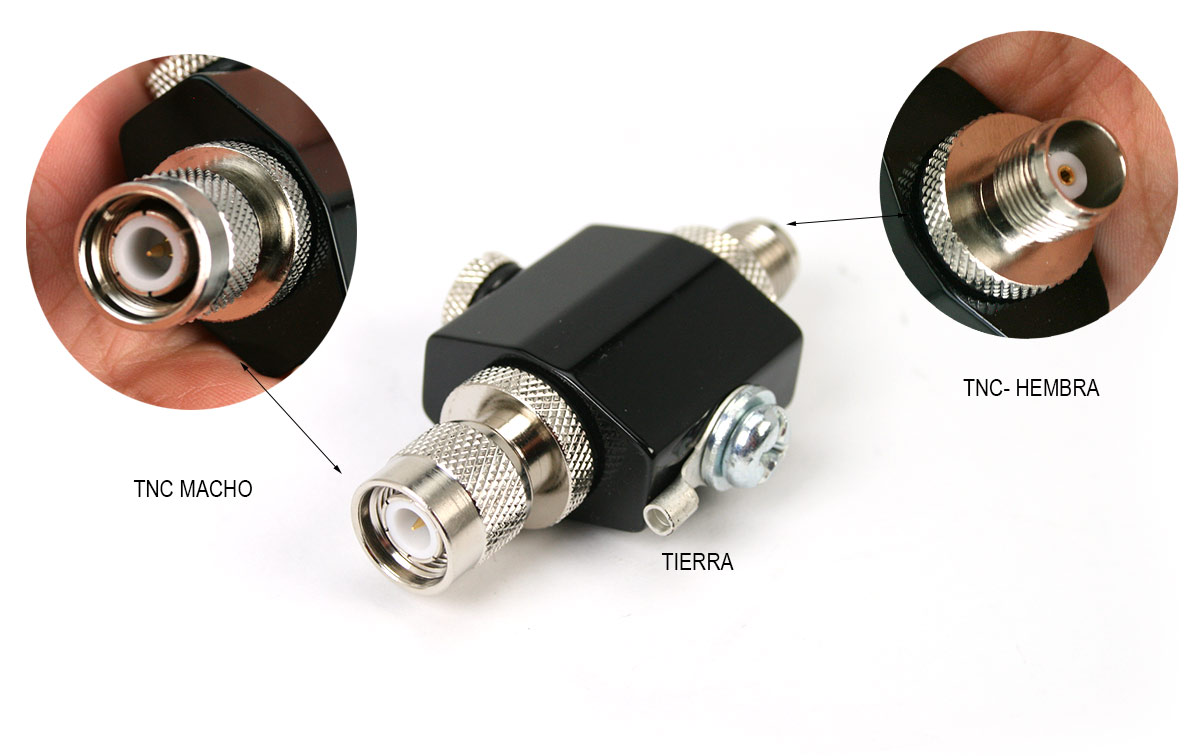

- Connector 1 TNC Female
- Connector 1 TNC Male
- VSWR 1.1
- Star screw ground connector
- Lost 0.2dB
- Discharge capacity: 6000A
- Retention discharge capacity: DC350v ± 20%
- Insulating resistance DC100v:
- Measures 62 x 35 x 20mm
- Weight 65 gr.
