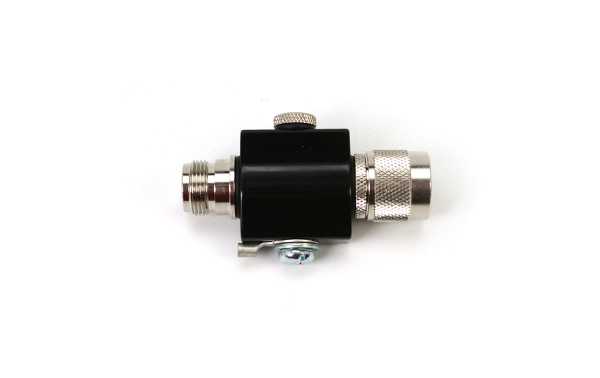

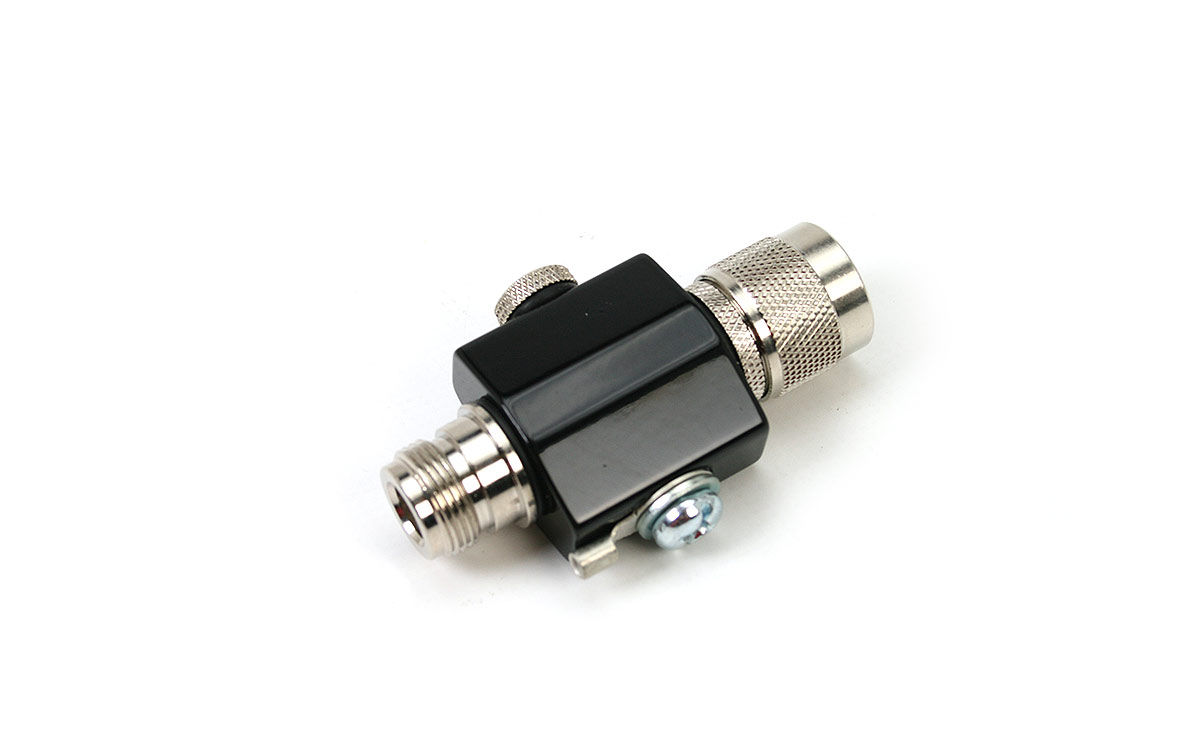

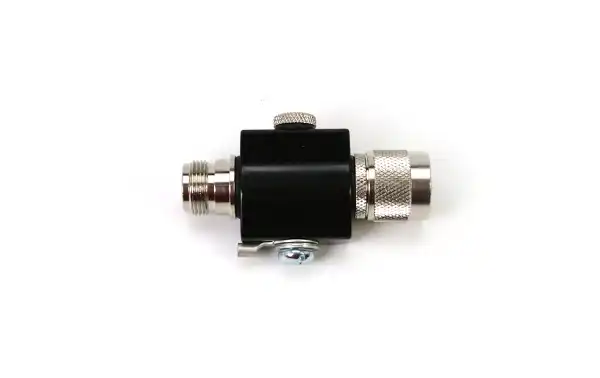

CA35NMF Protector against lightning discharges connector N MALE -N FEMALE

CA35NMF Protector against lightning discharges connector N MALE - N FEMALE. When the protector detects a large increase in current or voltage, it automatically directs it to ground, thus preventing equipment overload. Great capacity to withstand ele more Reference CA35NMF

varios

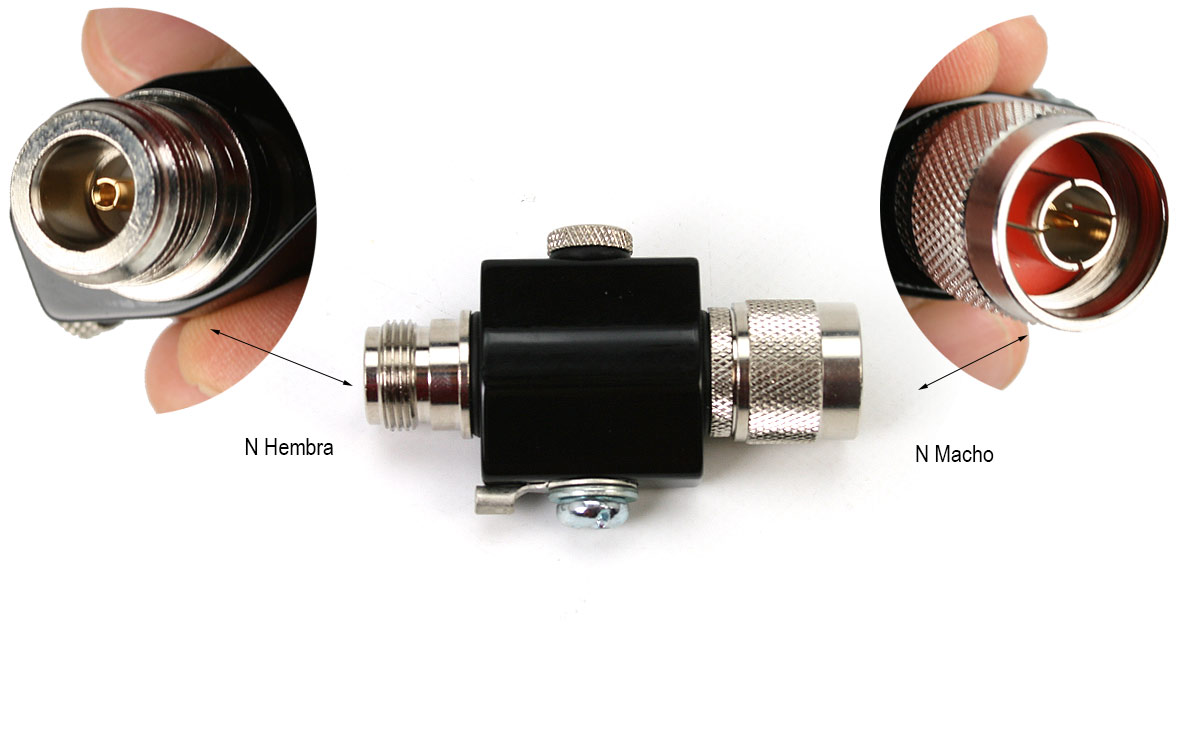

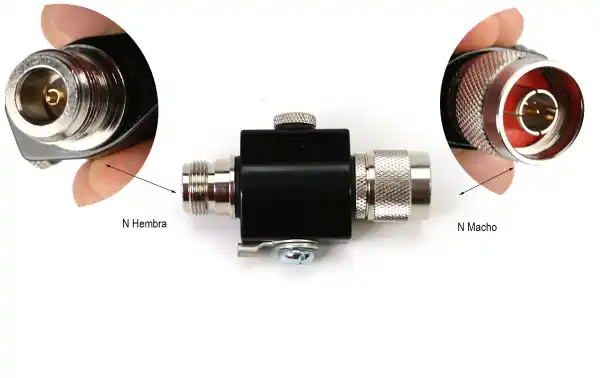

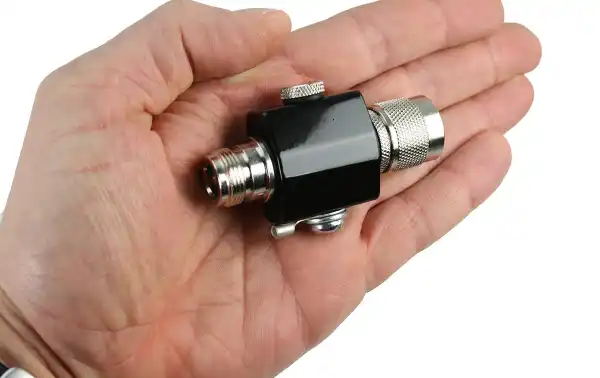

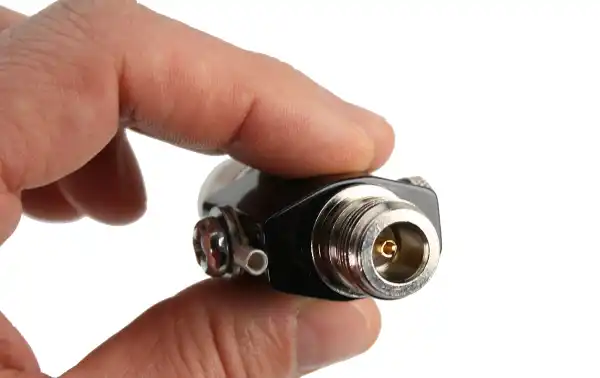

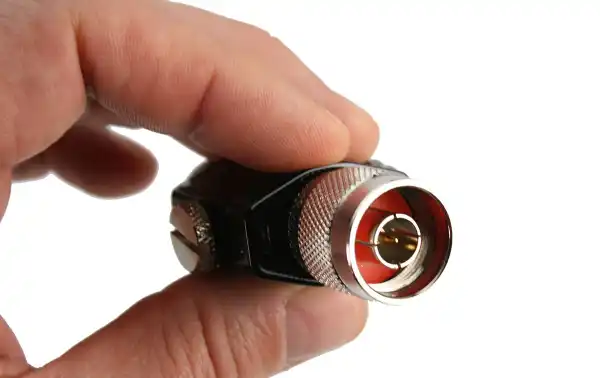

CA35NMF Protector against lightning discharges connector N MALE -N FEMALE Protector against lightning discharges connector N MALE - N FEMALE N Female connector N MALE connector Lightning discharge connector N MALE - N FEMALE CA35NMF
CA35NMF Protector against lightning discharges connector N MALE -N FEMALE
available
29,04 incl. VAT
24,00€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

CA35NMF

When the protector detects a large increase in current or voltage, it automatically directs it to ground, thus preventing equipment overload.
Great capacity to withstand high currents in a compact size. Great duration, thousands of possible downloads. Extremely sensitive against any excess current.

VERY IMPORTANT CAUTION

NO, install, manipulate or touch the protector or the systems connected to it (antennas, turret, transceiver cables, receiver, etc.) during or just before a storm, in the event of an atmospheric discharge, you could be seriously injured and even ' cause death!

Protector contra descargas de rayor conector N MACHO -N HEMBRA

kit content
  • 1 CA35NMF antenna protector

 Cuando el protector detecta un gran aumento de la corriente o tensión, automáticamente lo dirige a tierra evitando así la sobrecarga de equipos.

protector de antena esquema de montaje

Features

  • Frequencies DC 500Mhz
  • material nickel
  • I live bathed in gold
  • HF/ VHF /UHF bands
  • Impedance 50 ohms
  • Maximum power 500 watts
  • Connector 1 N Female
  • N Male Connector
  • VSWR 1.1
  • Star screw ground connector
  • Lost 0.1 db
  • Discharge capacity: 6000A
  • Retention discharge capacity: DC350v ± 20%
  • Insulating resistance DC100v:
  • Measures 65 x 35 x 20mm
  • Weight 85 grams.
