CA35NHH Lightning protector connector N FEMALE-N FEMALE
Protector against atmospheric discharges made with a coaxial-type core with low insertion losses and high bandwidth. To use the protector correctly, it must be installed between the coaxial cables and/or as close to the transceiver/re
Make the first review27,83€ VAT included 23,00€ excl. VAT
Are you one of those who prefer not to wrap gifts? We do it for you!
With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!
What if the recipient is you? Why not?
We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.
This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.
If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.
Description CA35NHH
CA35NHH

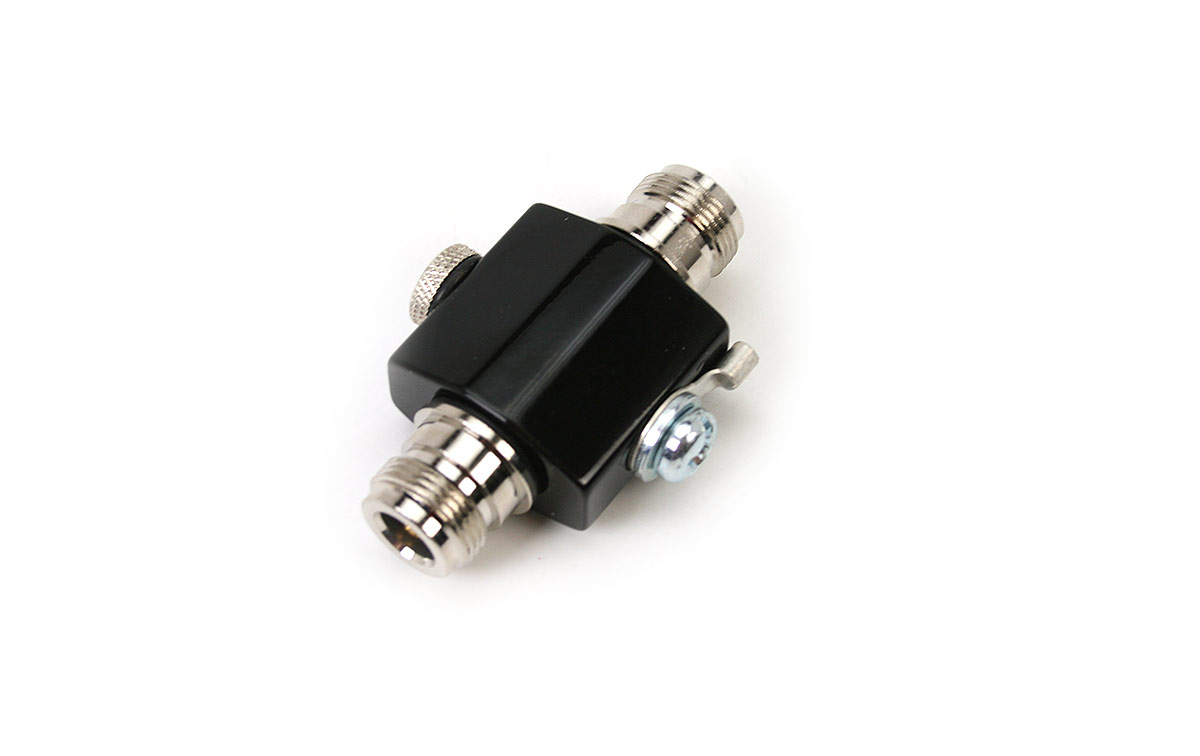

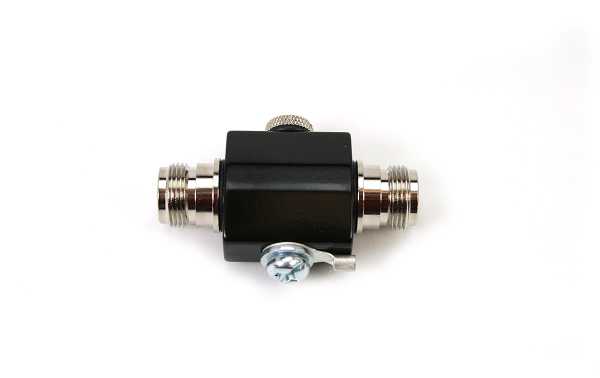

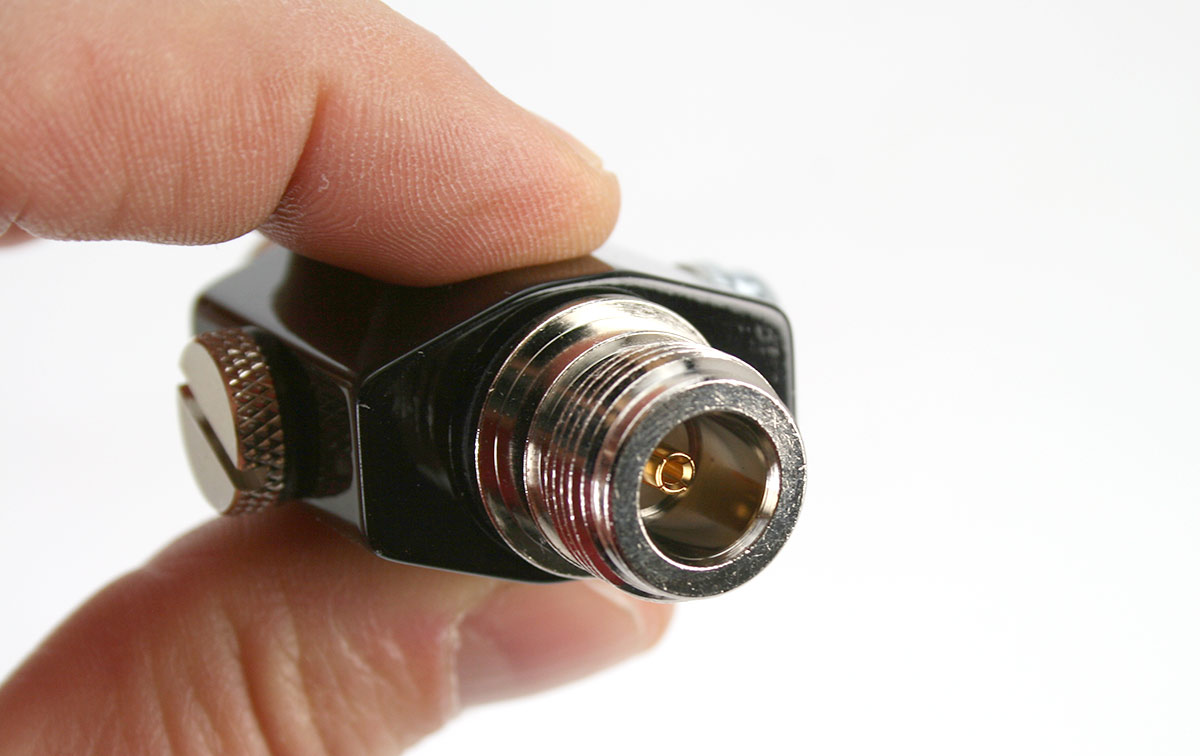

Coaxial protector with N female connector to N female connector. When the protector detects a large increase in current or voltage, it automatically directs it to ground, thus preventing equipment overload.
Great capacity to withstand high currents in a compact size. Great duration, thousands of possible downloads. Extremely sensitive against any excess current.
To provide the tower with adequate grounding, make the connection to it using copper (preferably) or thick aluminum wires in order to maintain a lower resistance measurement with ground. The protector is very effective against sudden increases in voltage, however it is not an absolutely perfect protection against excessive currents such as direct lightning strikes in our radiant system.
- 1 CA35NHH antenna protector
Features
- Frequencies DC 500Mhz
- material nickel
- I live bathed in gold
- HF/ VHF /UHF bands
- Impedance 50 ohms
- Maximum power 500 watts
- Connector 1 N Female
- Connector 1 N Female
- VSWR 1.1
- Star screw ground connector
- Lost 0.1 db
- Discharge capacity: 6000A
- Retention discharge capacity: DC350v ± 20%
- Insulating resistance DC100v:
- Measures 65 x 35 x 20mm
- Weight 82 grams.
