DIAMOND
Reference DAP600 | DIAMOND

DIAMOND DAP-600 Aluminum telescopic pole from 1.5 mts to 6 mts

The Diamond DAP-600 is a high-quality aluminum telescopic mast used for various applications, such as antennas, cameras, sensors, among others. It has a length of 1.5 meters when fully retracted and can be extended up to u

Make the first review

258,76€ VAT included 213,85€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

You've seen it cheaper Request a quote
available. Estimated delivery 1-2 days. available in shop Last units Delivery price from 6,50€

Description DIAMOND DAP600

Diamond DAP-600

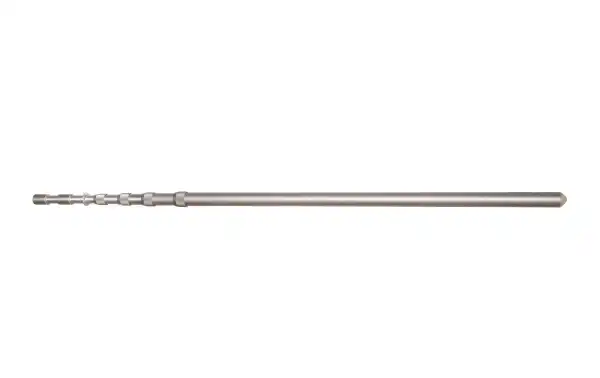

The Diamond DAP-600 is a high-quality aluminum telescopic mast used for various applications, such as antennas, cameras, sensors, among others. It has a length of 1.5 meters when fully retracted and can be extended to a maximum of 6 meters. The mast is designed with a locking system in each section, which allows each section of the mast to be safely fixed and secured. This locking system is efficient and does not damage the mast, allowing it to be mounted and dismounted frequently without affecting its function or structure. It is important to follow the manufacturer's instructions for proper assembly and disassembly, and adhere to the maximum load recommendations and height limits of the telescopic mast. The mast's aluminum construction provides strength and durability, ensuring its ability to withstand harsh loads and environmental conditions. The telescopic design allows for easy portability and storage, as it can be reduced to its minimum length when not in use.

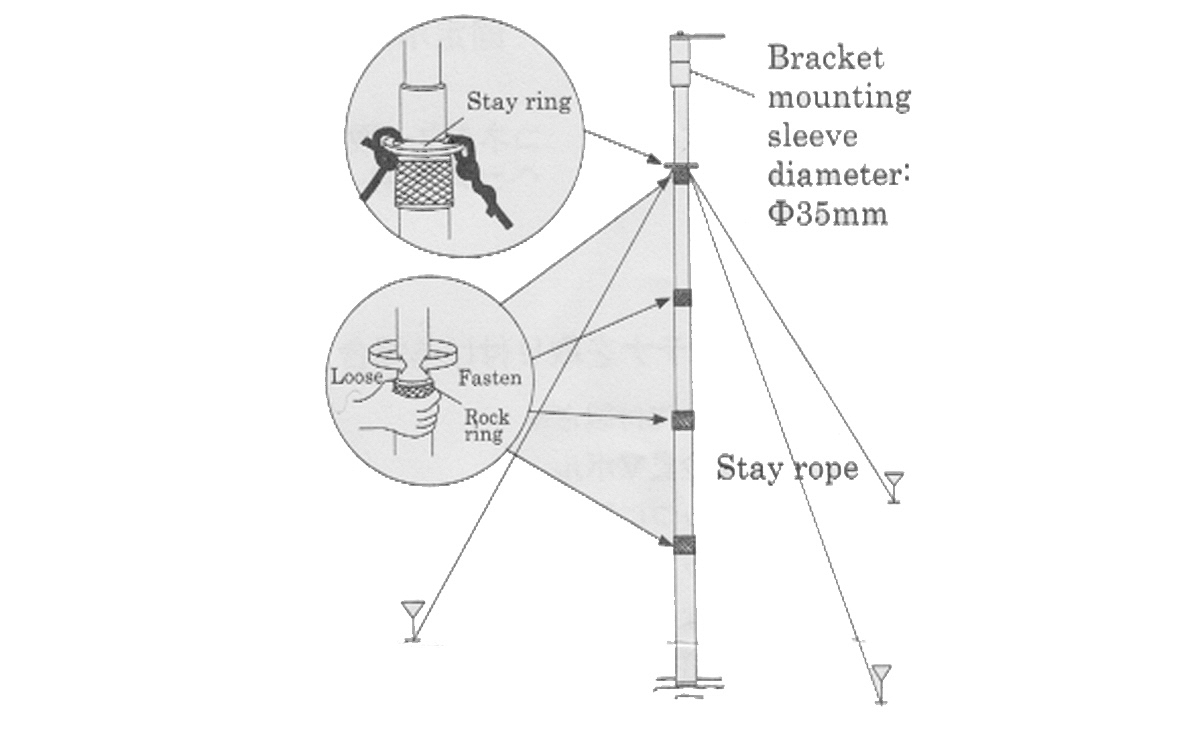

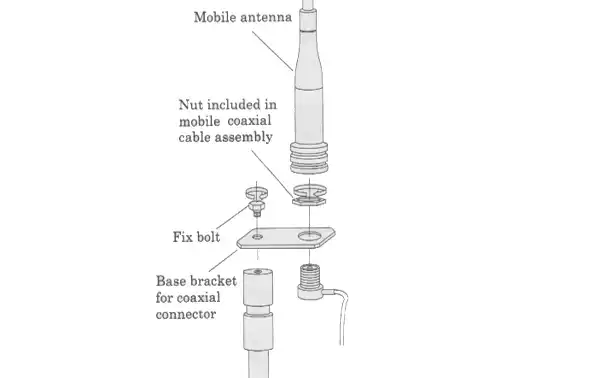

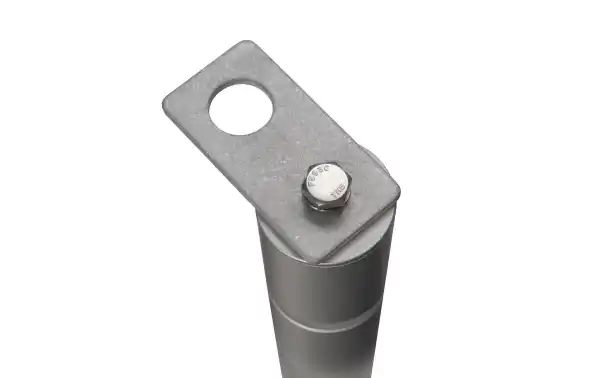

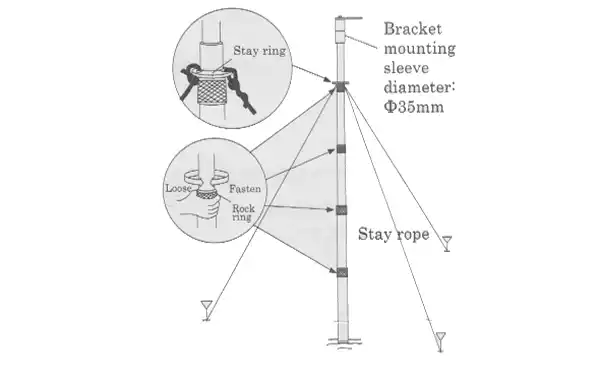

The Diamond DAP-600 is a popular choice for those who require a versatile and reliable neck. Its locking system and high-quality construction make it an ideal choice for various applications where adjustable height and easy installation are required. It is important to follow the manufacturer's instructions for proper assembly and disassembly, and adhere to the maximum load recommendations and height limits of the telescopic mast. In addition, a mounting bracket is provided that facilitates the installation of an antenna base on top of the mast, thus allowing an antenna to be mounted. It is also supplied with 30 meters of rope to properly secure and fix the mast.

El Diamond DAP-600 es una opción popular para aquellos que requieren un mástil versátil y confiable. Su sistema de bloqueo y su construcción de alta calidad lo convierten en una opción ideal para diversas aplicaciones donde se requiere una altura ajustable y una fácil instalación. Es importante seguir las instrucciones del fabricante para un montaje y desmontaje adecuados, y respetar las recomendaciones de carga máxima y límites de altura del mástil telescópico. Además, se proporciona un soporte de montaje que facilita la instalación de una base de antena en la parte superior del mástil, permitiendo así montar una antena. También se suministra con 30 metros de cuerda para asegurar y fijar correctamente el mástil.

kit content
  • 1 telescopic DAP-600

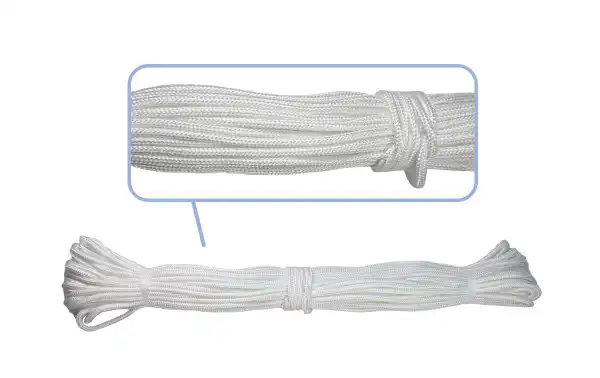

  • 1 rope 30 meters

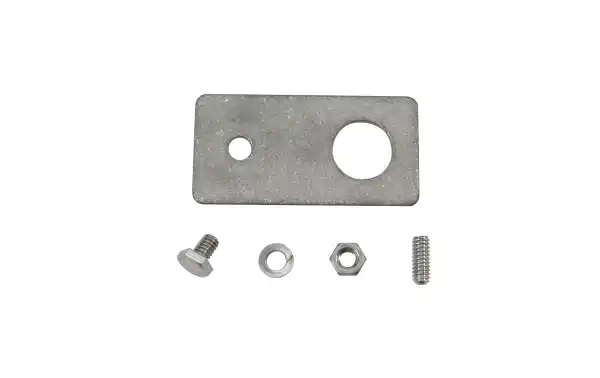

  • 1 Base support
  • Screws

El diseño telescópico permite una fácil transportabilidad y almacenamiento, ya que puede reducirse a su longitud mínima cuando no está en uso.

Characteristics

  • Diamond Brand
  • Model DAP-600
  • Material Aluminum T6064
  • Weight 2.7 kg.

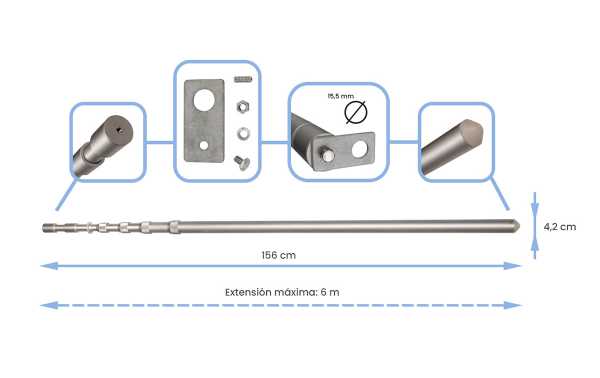

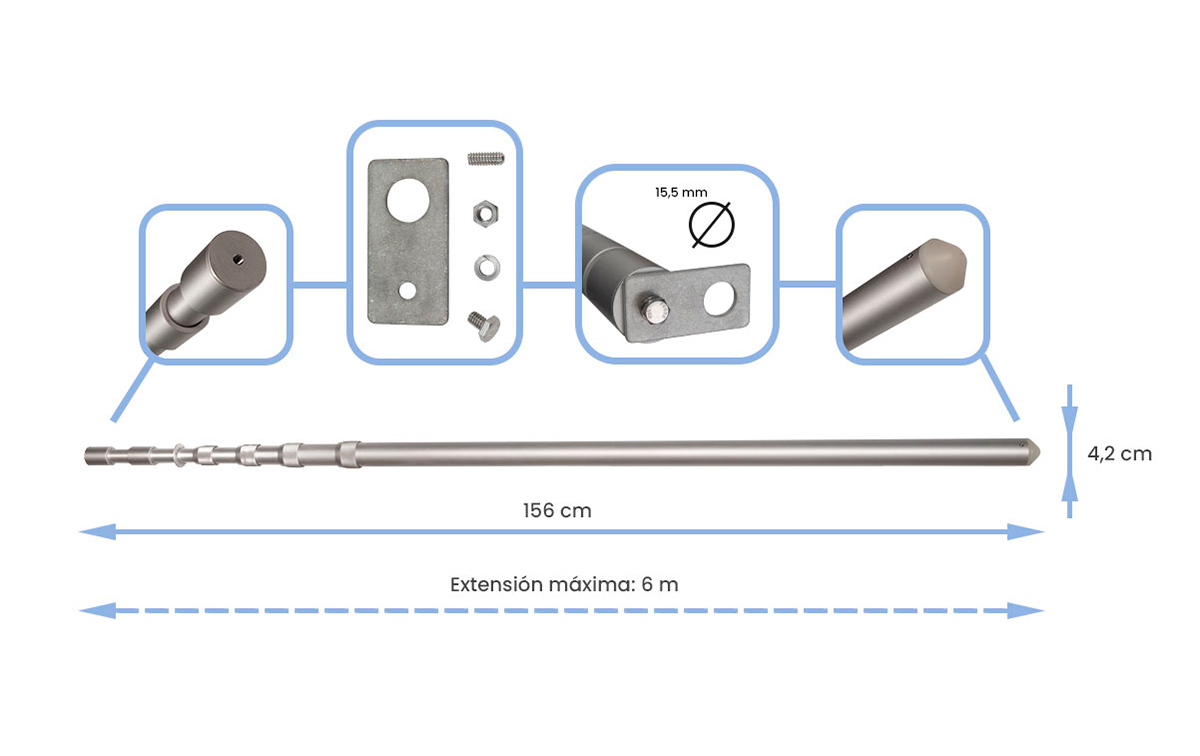

  • Folded length 1.5 meters extended 6 meters
  • maximum load 8Kg
  • sections sections 5

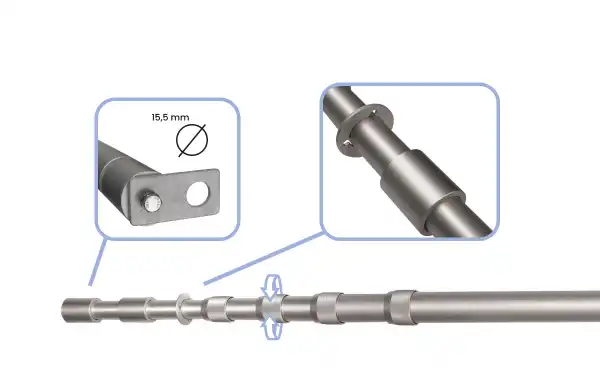

  • Support hole diameter 15.5 mm
  • Maximum diameter 42 mm and minimum 26 mm

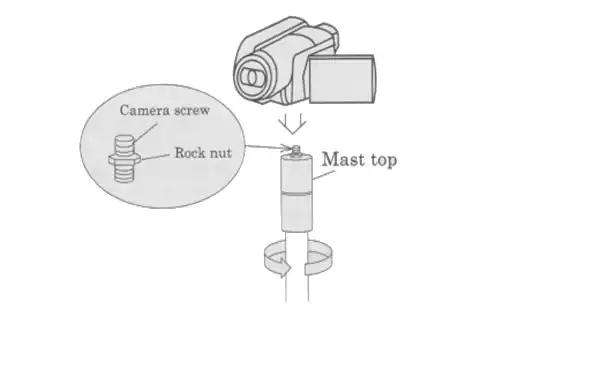

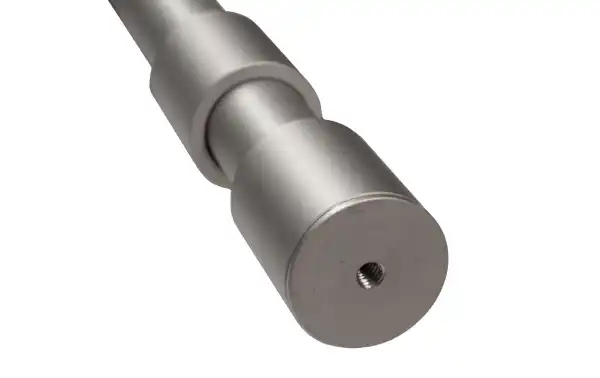

  • Upper mast thread 1/4 Inch

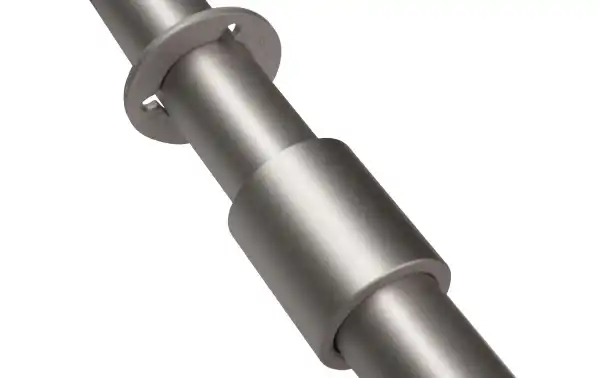

  • Mast fastening system by rotating lock
  • Resistant: Able to withstand adverse conditions and maintain its functionality.
  • Versatile: Adaptable to different situations and uses.
  • Durable: Constructed with quality materials that ensure a long lifespan.
  • Efficient: Designed to provide optimal performance with minimal resource consumption.
  • Portable: Easy to transport and store due to its compact size and weight.
  • Accurate: Reliable and accurate results.
  • Ergonomic: Designed with user comfort and ease of use in mind.
  • Connectivity: Able to establish connections and communicate with other devices or systems.
  • Safe: It incorporates security features that protect the user and prevent accidents.
  • Innovative: Introduces new technologies or features that improve its functionality and performance.
