LAFAYETTE TGS80R tour guide system RECEIVER MODULOS PARA EL TURISTA

LAFAYETTE TGS80R tour guide system RECEIVER. Receiver TGS80R tour guides MODULE FOR TOURISTS. Lafayette TGS-80 audio system for guided tours has been designed to meet these needs by offering a variety of solutions. The system basically consists of more Manufacturer: lafayette Reference TGS80RKIT3

available
102,85 incl. VAT
85,00€ w/o VAT
Delivery price from 30,25€


 !! MODULE FOR TOURIST!!



 GUIDED RECEIVER



TGS80R

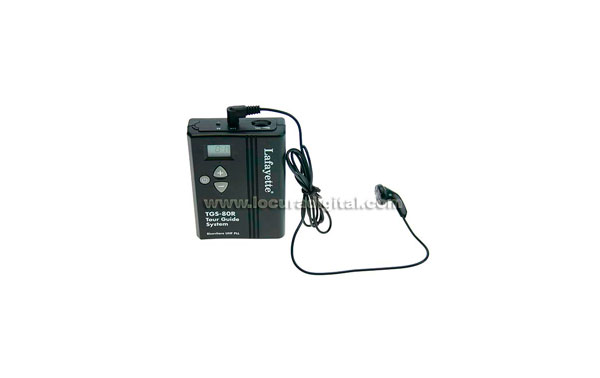

TGS80R LAFAYETTE RECEIVER tour guide system.

80 .
Receiver TGS80R tour guides MODULE FOR TOURISTS.
Lafayette TGS -80 audio system for guided tours is designed to meet all these needs, offering a variety of solutions. The system basically consists of a unit of several transmitter and receiver units, in addition to various accessories can be used to expand the functionality. With 80 channels, including in the 863-865 MHz and a channel interval: 12.5 kHz, TGS-80 devices turistaslet you easily communicate without interference from other tour groups. Easy to use, have an LCD screen where you can be the channel number and see battery status. Power is supplied by rechargeable batteries and internal or external operating status can be checked by led. To improve its energy independence, the transmitter unit automatically stops transmission activity after 1 minute if no audio input is received, and after 15 minutes of complete inactivity, both transceiver and the receiver will automatically .
Ability to select up to 80 channels.


TGS80R



TGS80R



 TGS80R



 TGS80R



TGS80R
BATTERIES NOT INCLUDED





TGS80R


BATTERIES NOT INCLUDED

 TGS80R



 TGS80R








  FEATURES




SPECIFICATIONS
General
Oscillator Type: PLL
Operating Frequency: 863-865 MHz
pre-programmed channels: 80 selectable channels
Frequency Response: 300Hz - 4kHz
Dynamic Range: > 70dB
Operating Temperature: -10 / 50 ° C
THD:
Batteries: 1.2V, 2AA Ni-MH (1600mAh)
1.5 V, 2AA Alkaline
Scope transmission / reception: 2-70m (in open field)
Transmitter
Sensitivity 20dB SINAD @ 3?V
Antenna: Built
Channel spacing: 55 dB @ 25 kHz
MF: 45MHz / 455kHz
Sound Level: 2.4 V @ 1100mV
Headphone Jack: stereo 3.5 mm
Range: 8 hours (1600 mAh, Ni-MH)
9 hours (alkaline)
Size: 23x65x94 mm
Weight: 123g including batteries









Accessories 1/2
