LUTHOR TL-632 PROFESSIONAL Walkie HUNT 250 CHANNELS. Approved by the CATALAN HUNTING FEDERATION - ATTENTION: It is essential to have the federal hunting license to buy this walkie - Includes Fast casserole charger + Lithium battery + UHF antenna + be moreManufacturer:luthorReference TL632CAZA
LUTHOR TL-632 PROFESSIONAL Walkie 250 CHANNEL SPECIAL HUNTING IN CATALONIA AND ARAGON. It is supplied with the frequencies programmed for hunting.
!! ATTENTION: It is essential to have the federative license to buy this walkie with the frequencies of the Catalan Hunting Federation!
Includes Quick Charger type bowl, Lithium Battery, UHF antenna, belt clip and high quality pinnillo PIN-29-K
The Luthor TL-632 HUNT is extremely easy to handle and operate. This compact portable transceiver is extremely reliable. .
LUTHOR TL-632CAZA kit contents
1 Walkie LUTHOR TL-632CAZA

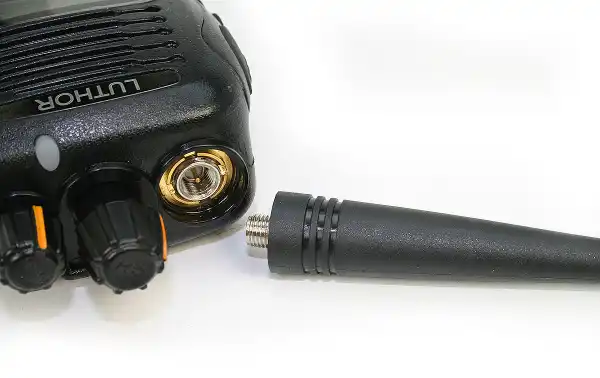

1 UHF antenna
1 Lithium battery 1500 mAh
1 Belt Clip
1 smart charger
1 PIN29K Pinganillo
Features
Robust and Reliable:The Luthor TL-632 CAZA is a high performance Porfesional walkie.
GENERAL:
Frequency Range 410-470 MHZ
Number of Channels 250 channels Channel Spacing Width / Width 4K / Narrow 25 kHz / 20 kHz / 12.5 kHz Operating Voltage 7.5 V DC ± 20%
Operating Temperature Range -20 ° C ~ 60 ° C Frequency Stability 5 ppm 2.5 ppm Antenna Impedance 50
Channel Frequency Dispersion 30 MHz Dimensions (W x H x D), Projections Not Included
RECEIVER
Sensitivity (Width / Width 4K / Narrow) EIA 12dB SINAD 0.28 V / 0.28 / 0.35 V IN 20dB SINAD -3 dB V (0.35) / -3 dB V (0.35 V) / -1 dB V (0.45 V) Adjacent Channel Selectivity Width / Width 4K / Narrow 70 dB / 70 dB / 60 dB 65 dB intermodulation Spurious Response Rejection 70 dB Audio Distortion Less than 5% Audio output 500 mW / 8
TRANSMITTER RF Output Power (High / Low) 4 W / 1 W Modulation Limitation ± 5.0 kHz at 25 kHz ± 4.0 kHz at 20 kHz ± 2.5 kHz at 12.5 kHz Spurious Emission -36 dBm
1GHz, -30 dBm> 1GHz Modulation Width / Width 4K / Narrow 16K0F3E / 14K0F3E / 11K0F3E FM Noise (EIA) Wide / Wide 4K / Narrow 45 dB / 43 dB / 40 dB Modulation Distortion Less than 5% 1.8k Microphone Impedance
