Reference C313

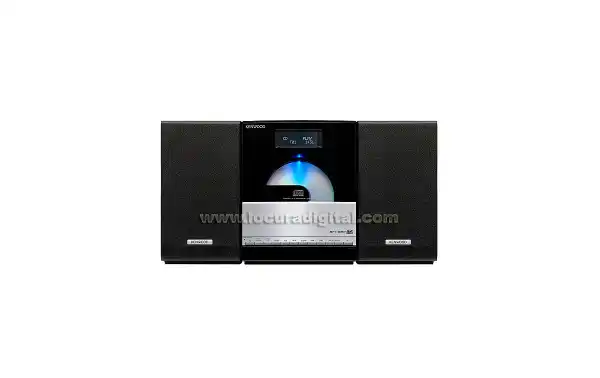

KENWOOD C313 Micro cadena USB con Base iPod - Acabado en negro

KENWOOD C313 USB Micro HiFi with iPod Base - black finish

KENWOOD C313 USB Micro HiFi with iPod Base - black finish This audio system can mount on the wall, offers a variety of power switches, USB host and USB and SD card slot. It also allows connection of iPod with the optional PAD-iP7

We're sorry, this item is no longer available.

Description C313

KENWOOD C313 USB Micro HiFi with iPod Base - black finish

This audio system can mount on the wall, offers a variety of power switches, USB host and USB and SD card slot. It also allows connection of iPod with the optional PAD-iP7

Key features

Full digital amplification

USB Host

SD card slot

Wall mounting possible

Supports iPod Connection

Other Features

Output Power 10W x 2 - Opening CD tray vertical and LED lighting - Sources: CD, radio

AM / FM, USB, SD card, iPod (requires optional dock-iP7 PAD) Audio Players

Digital (DAP), AUX - Preset EQ and Bass Boost Subwoofer - 1-way speaker range

complete with support - Terminals: INPUT: SD card slot, USB, Auxiliary; OUT: Subwoofer Headphones

KENWOOD C-313

C313

Wall mounting possible

Thanks to its slim design and compact models in the series Carmonizan beautifully in any environment. To save space, the main unit can be wall-mounted speakers separate from the unit and conveniently located in OtherPlace.

C313


	FEATURES

General Features

Equalizer	6 presets (Pop / Classic / Rock / Jazz / Game / Flat)
X-Bass / Subwoofer	Yes
Remote	Remote Control Standard 42 key

Amplifier

Max Output Power Stereo	2 x 10 Watt
Digital Amplifier	Yes

Audio Features

Equalizer	6 presets (Pop / Classic / Rock / Jazz / Game / Flat)
X-Bass / Subwoofer	Yes

Tuner

Tuner (AM / FM)	Yes
Radio Data System (RDS)	Yes
Programming (PTY)	Yes
Number of presets	40
Timer	Sleep (10 ~ 90 min.) & Timer On / Off

Playable Media

CD DA / CD-R/RW	Yes
MP3	Yes
ID-3 tag	Yes
WMA	Yes

CD Features

CD DA / CD-R/RW	Yes
MP3	Yes
WMA	Yes
CD Text	Yes
Programming play	Yes
Repeating play	A / All
Shuffle	Yes

Digital inputs / outputs

USB-A Terminal (USB Host)	Yes
IPod connection	Yes, PAD-docking optional iP7

Analog inputs / outputs

RCA Audio / Video	1 Audio
Previous outputs	Subwoofer
Speaker Terminals Push-type	All
Headphone Jack (3.5 mm)	Yes
Terminal Link DAP	Analog 3.5 mm
FM antenna connector 75 Ohm	Yes
FM antenna connector	Yes

Speakers

Type	Bookshelf speakers with wall mounting capability
Settings	Wide Banda Bass Reflex type
Push-type terminals	Yes
Grid.	Fixed
Wall mount hole	Yes

Audio section

DIN Power Music	2 x 10 Watt
Effective output power	2 x 10 Watt (1kHz, 10% THD, 8ohms)
Line (AUX): Sensitivity / Impedance	300mV / 10kohmios
Line (D Audio): Sensitivity / Impedance	300mV / 10kohmios
Subwoofer pre-out: Level / Output Impedance	1V / 10kohmios

Tuner Section

Frequency range FM reception	87.5 ~ 108MHz
Antenna Impedance	75 ohms balanced
Frequency range AM reception	531 ~ 1602kHz

USB Specifications

Standard USB	1.1 / 2.0
MP3 Sampling Frequency (Stereo)	8/11.025/12/16/22.05/32/44.1/48kHz
MP3 Bitrate (CBR / VBR)	8 kbps to 320 kbps
WMA Sampling Frequency (Stereo)	32/44.1/48kHz
WMA Bitrate (CBR / VBR)	32 kbps to 320 kbps
ID-3 tag	Version 1.0/1.1/2.2/2.3
Maximum number of folders	255
Maximum number of files per folder	999
Maximum supply current	500mA
File System	FAT 16 / 32
MP3 Decoder	Compliant with MPEG-1 / 2 Audio Layer 3
WMA Decoder	Windows Media Audio Compatible

CD Player Specifications

Type	Semiconductor Laser
Oversampling	8fs (352.8 kHz)
D / A conversion	1-bit
Maximum number of folders MP3/WMA	512
Maximum number of folders grouped	8 levels
Maximum number of MP3/WMA files	512

SD Specifications

SD Format	SD memory card (play)
Using SD Cards	SD / SDHC, miniSD, microSD / SDHC (you must use a special adapter for mini and micro SD card)
Supports SD card capacity	512MB - 32GB
File System	FAT 16/32
ID-3 tag	Version 1.0/1.1/2.2/2.3
Maximum number of folders	255
Maximum number of files per folder	999
MP3 Sampling Frequency (Stereo)	8/11.025/12/16/22.05/32/44.1/48kHz
MP3 Bitrate (CBR / VBR)	8 kbps to 320 kbps
WMA Sampling Frequency (Stereo)	32/44.1/48kHz
WMA Bitrate (CBR / VBR)	32 kbps to 320 kbps
MP3 Decoder	Compliant with MPEG-1 / 2 Audio Layer 3
WMA Decoder	Windows Media Audio Compatible

Speaker Specifications

Impedance	8ohms
Rated Input	10 Watt
Maximum Input Power	10 Watt
Speaker	86mm full range

General Specifications

Display Type

Dot Matrix

Power Specifications

Power Consumption	16 Watt
Standby power consumption	Less than 0.5 Watt
AC-DC Adapter	Input 230-240VAC 50-60Hz 60W Output 18VDC 1.5 A 3.35 A

Dimensions and Weights

Main Unit Dimensions (WxHxD)	190 x 238 x 143 mm
Speaker Dimensions (WxHxD)	130 x 238 x 133 mm
Net weight of unit	1.4 kg
Speaker Net Weight	1kg per piece
