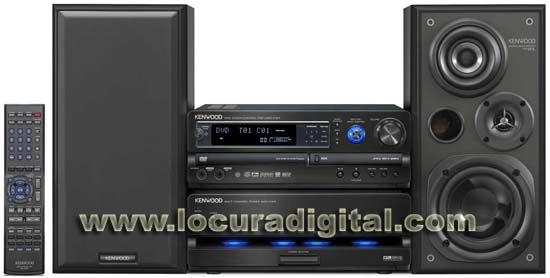

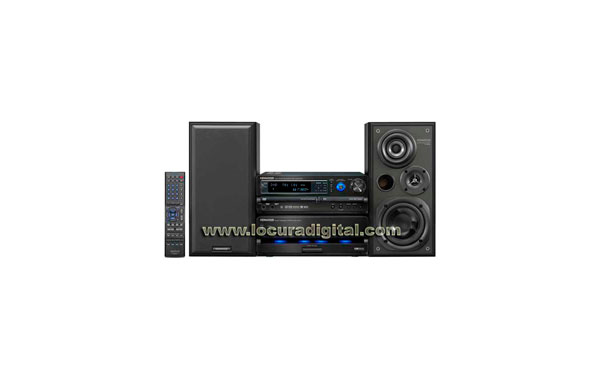

| KENWOOD AX8. Cadena HI-FI audio-visual system for Home Cinema to audition hi-fi stereo. Kenwood introduced the new concept of audio-visual system for Home Cinema to audition hi-fi stereo. With 60 years of experience in the world of electronics applied to the physics of audio and video, developed with wisdom and dynamism of the new system AX-7. Based on the third generation of the original development called 'Virtual Surround Front' (VFSIII), and the power of digital signal processor from Analog Devices Incorporated (ADI), Kenwood has built a unique algorithm for the new front surround system. Is able to recreate that atmosphere of surround sound for home cinema screens with the two front speakers that include a dual-speaker system in the radiant panel (a system of two tracks and two speakers and a speaker system only). Wolfson CODEC A Surround DVD-Video / CD-DA / MP3 / WMA Video Converter 10bit DAC Dolby Digital decoder KENWOOD AX 8
|
| Preamplifier with total digital control
- Encoder-Decoder Wolfson CODEC% u0104 Front Virtual Surround (Virtual Surround Front III)
- Clear Voice through 'Clear Voice Sound'
- Decoder Dolby Digital / DTS / PLII
-% U0104 DVD-Video, DVD / VCD / CD-DA / MP3 / WMA / JPEG / PHOTO CD Reproduction
- Video Converter DAC 10bit 54MHz
- AUDIO DAC converter 24bit 96/48 kHz
- DVD-R/RW (DVD R / RW)% u0104 Playing CD-R/RW
- Repeat REPEAT (ONE, ALL, PGM, AB), RANDOM
- Playing PGM
Connections:
- 4 analog inputs (Line 1 ~ 2, TV, Aux) - RCA pin
- Digital Input DAP - through stereo mini jack
- 1 analog audio output (Line 1)% u0104 output to 6 channels Previous [6ch Pre-out (Front L / R, Surround L / R, Central, Sub-woofer)]
- 1 Digital Audio Output (Optical Output: Pulse Train / PCM)
- Video output (composite, S-Video)
- SCART adapter Euroconnector (Composite L / R RCA? SCART plug
Action:
- (W x H x D): 270 x 101 x 347 mm
Weight:
- 5 kg
Speakers section:
- 2-way 2 speakers 1 route of Banda Complete
- 2-way: 13cm woofer acoustic suspension, 2.5cm dome tweeter balanced
- 1-way: Full bandwidth 5cm acoustic suspension
- Grind removable front
Action:
- (W x H x D): 164 x 330 x 211 mm
Weight:
- 3.9kg | | Key Features | Digital Pre-Amplifier | | Virtual Surround Front III | | Kenwood Auto Room EQ Technology | | Video DVD / DVDR / RW / VCD / MP3 / WMA / JPEG Playback | | Incl. SCART connector adapter Euro |
General Features | Virtual Surround Front III | Music / Movie | | Clear Voice Sound | Music / Movie | | Width Control | Narrow / Wide | | Auto Room EQ | Yes | | Room EQ Mode | Normal / Wide / Night | | D / A Converter | 24-Bit 96/48kHz Wolfson | | Midnight Mode for Dolby Digital / DTS | Yes | | Equalizers | 7-Band | | Tone Control | Yes, with Turnover Frequency Setting | | D-Bass | Music / Movie (0 ~ 10) |
Tuner Features | Tuner (AM / FM) | Yes | | Program Type (PTY) | Yes | | Number of Presets | 40 | | Timer | Sleep (10 ~ 90 min.) & AI-Timer (Prog. 1 & 2) |
Playable Media | PAL | Yes | | NTSC | Yes | | DVD-Video | Yes | | DVD-R | Yes | | DVD-RW | Yes | | DVD R | Yes | | DVD RW | Yes | | DA CD / CD-R/RW | Yes | | VCD | Yes | | MP3 | Yes | | WMA | Yes | | JPEG Digital Still | Yes |
Surround Formats | Dolby Digital | Yes | | Dolby Pro Logic II | Yes | | Dolby Pro Logic | Yes | | Virtual Surround Front III | Yes |
General Features DVD | NTSC Playback on PAL TV | Yes | | Video D / A Converter | 54MHz 10-bit | | Audio D / A Converter | 96/48kHz / 24-bit | | Multi-aspect TV Screen Mode | 4:3 / 16:9 | | Dolby Digital / DTS Digital Output Bitstream | Yes | | PCM Digital Output | Yes | | 2-ch. Downmix Output for Multichannel Sound | Yes | | Selectable Camera Angle View | Yes | | Menu Languages | English, German, French, Italian, Spanish, Japanese, Chinese, Taiwanese | | Remote Control | Yes |
DVD Convenience | On-screen Display | Yes | | Parental Control | Yes | | Fast / Slow Motion Playback | Yes | | Frame Forward / Backward & Freeze Frame | Yes | | Program Playback | Yes | | Repeat Playback | Chapter / Title / Track / All / AB | | Random Playback | Yes |
CD Features | DA CD / CD-R/RW | Yes | | MP3 | Yes | | WMA | Yes | | CD Text | Yes | | Program Playback | Yes | | Repeat Playback | Track Program, All | | Random Playback | Yes |
Digital Inputs / Outputs | Optical Audio Input / Output | - / 1 |
Analogue Inputs / Outputs | RCA Audio / Video Inputs | 4 Audio | | RCA Audio / Video Outputs | 1 Audio / Video 1 | | S-Video Output | Yes | | Composite Video Output | Yes | | Pre-outputs | Surround 1 / Surround 2 / Subwoofer / Center | | Headphone Jack (3.5 mm) | Yes | | Headphone / Rec.Out Terminal (switchable) | Yes | | DAP Link Terminal | analogue 3.5 mm | | 75 Ohm FM Antenna Connector | Yes | | AM Antenna Connector | Yes |
Audio Specifications | Signal / Noise Ratio | 100dB | | Total Harmonic Distortion | 0.001% (CD, Tape / Video 1 Output) | | D-Bass Music Mode | 13 DB (40Hz, vol.60) | | D-Bass Movie Mode | 15 DB (40Hz, vol.60) | | Equalizer Frequencies | 63, 160, 400, 1000, 2500, 6300, 16000 | | Variable Range Equalizer | ± 8dB | | Bass (Turnover 100Hz / 150Hz / 200Hz) | ± 3.1 / 5.1 / 5.7dB (at 100Hz) | | Treble (5kHz Turnover / 7kHz / 10kHz) | ± 0 / 0 / 0dB (at 0kHz) | | Input Sensitivity / Impedance: Line | 700mV / 40k% u2126 | | Output Level / Impedance: Digital Audio Out | 1V / 32% u2126 | | Output Level / Impedance: Subwoofer Pre-Out | 0.6V / 600k% u2126 | | Optical Digital Output | -21 ~-15dBm (wave length 660nm) |
Tuner Specifications | FM Frequency Tuning Range | 87.5 ~ 108MHz | | AM Frequency Tuning Range | 531 ~ 1602kHz |
DVD General Specifications | Laser | Semiconductor Laser | | Tray Type | Single | | Video Format | PAL / NTSC |
DVD Video Specifications | Composite Video Output Level | 1VP-p (75% u2126) | | S-Video Output Level Y-signal | 1VP-p (75% u2126) | | S-Video Output Level C-signal | 1VP-p (75% u2126) |
Power Specifications | Power Consumption | 46 Watt | | Stand-by Power Consumption | Less than 0.45 Watt |
Size & Weight | Dimensions (WxHxD) | 270 x 101 x 347 mm | | Weight (Net) | 4.3kg |
M-AX7 Key Features | Switchable 4ch./2ch. BTL Power Amplifier | | Discrete Power Amplifier topology | | 2-channel configuration: 2 x 50 Watt | | 4-channel configuration: 4 x 25 Watt | | 2 analog audio inputs (Front - Surround) |
Amplifier Features | Surround Maximum Power Output | 4 x 25 Watt | | Maximum Output Power Stereo | 2 x 50 Watt | | Digital Pre Amplifier | Yes | | BTL (Bridge tied Load) Amplifier | Yes | | Advanced Ground Line | Yes |
Audio Specifications | Effective Power Output | 2 x 50 Watt (1kHz, THD 10%, 6% u2126) | | Effective Output Power (Surround) | 4 x 25 Watt (1kHz, THD 10%, 6% u2126) | | Signal / Noise Ratio | 105dB | | Signal / Noise Ratio (Surround) | 100dB | | Total Harmonic Distortion | 0.0025% (1kHz, 19W, 6% u2126) | | Total Harmonic Distortion (Surround) | 0.003% (1kHz, 10W, 6% u2126) |
Power Specifications | Power Consumption | 130 Watt | | Stand-by Power Consumption | Less than 0.25 Watt |
Size & Weight | Dimensions (WxHxD) | 270 x 101 x 336 mm | | Weight (Net) | 5kg |
LS-AXD7 Key Features | 2-way Speaker System with Built-in Satellite Speakers |
Speakers | Type | Bookshelf | | Configuration | 2-way 2-Speaker System with Built-in Effect Full Range Speaker | | Built-in Surround / Speaker Effect | Yes | | Push-type Terminals | Yes | | Magnetically Shielded | Yes | | Grill | Detachable |
Speaker Specifications | Peak Power Input | 50 Watt | | Frequency Response | 45Hz ~ 20kHz | | Frequency Response Effect Speaker | 140Hz ~ 20kHz | | Impedance | 6% u2126 | | Sensitivity | 85dB / W at 1m | | Sensitivity Effect Speaker | 81dB / W at 1m | | Woofer | 120 mm (4-3/4 ") Cone type | | Tweeter | 25 mm (1 ") Balanced Dome type | | Effect Speaker | 50 mm (2 ") Cone type |
Size & Weight | Dimensions (WxHxD) | 164 x 330 x 211 mm | | Weight (Net) | 3.9kg |
|
|
