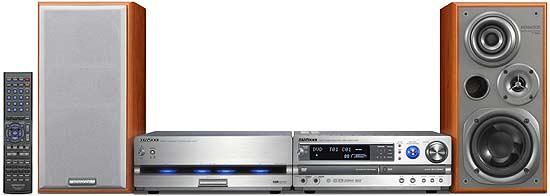

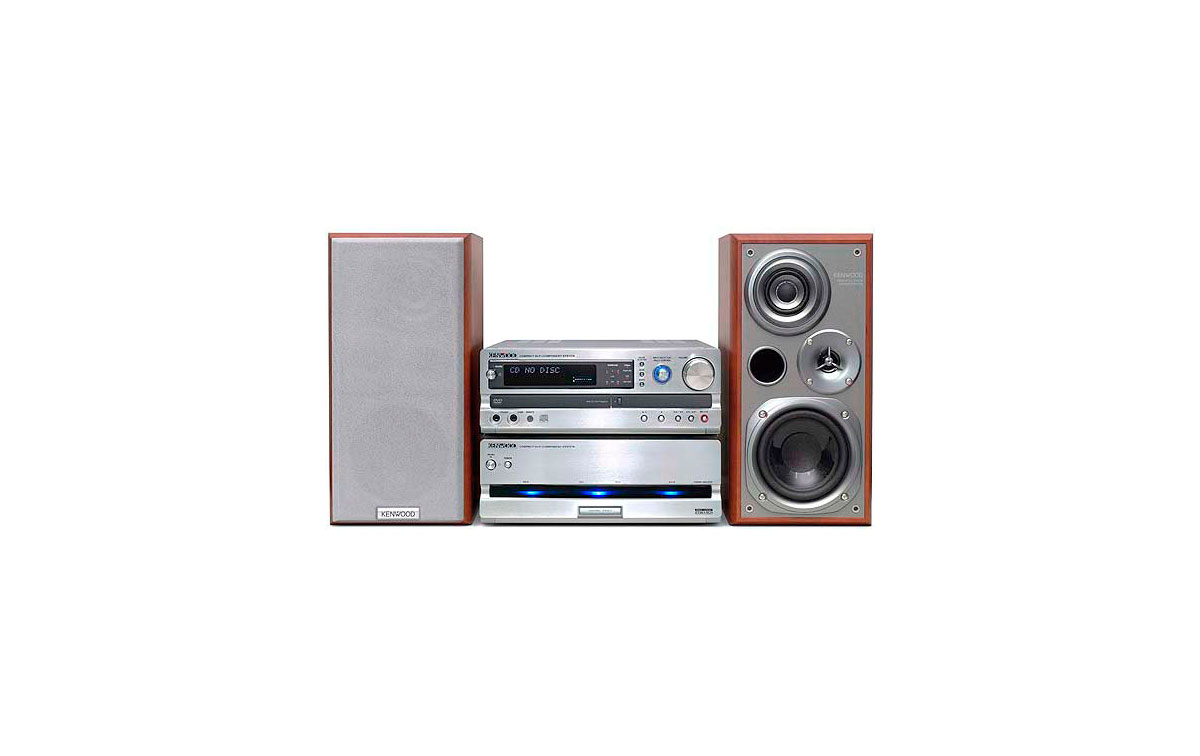

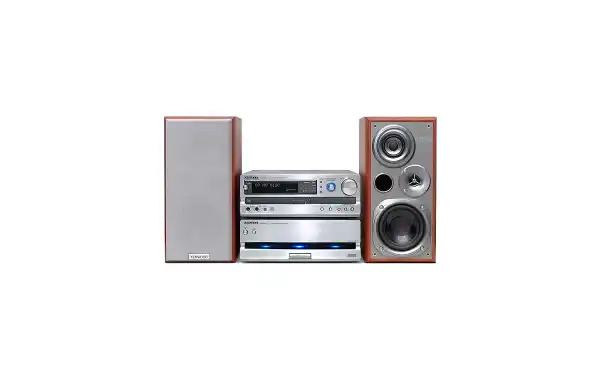

KENWOOD AX7. Chain HI FI Systemizes audio visual so for Home Cinema for hearing stereo high-fidelity. !! OFFER LIMITED!
Kenwood presents the new concept of System audio visual so for Home Cinema as gives birth hearing stereo high-fidelity. With 60 years of experience in the world of the electronics applied to the physics of the audio and of the video has developed with wisdom and dynamism the new system AX 7. Based in the third generation of that develop original named 'Virtual Front Surround' (VFSIII) and in the power of the processor digital of signal of Analog Devices Incorporated (ADI) Kenwood has built an algorithm only for the new system surround front. That is able to recreate atmospheres of sound sweeping for Home Cinema with the two screens acoustic front that add a double system of loudspeakers in the panel brilliant (a system of two paths and two loudspeakers and a system of loudspeaker only.)
CODEC Wolfson to Surround
DVD-Vídeo/ CD-DA/ MP3/ WMA
Converter video DAC 10bit
Decoder Dolby Digital
KENWOOD AX 7
|
|
Preamplifier with control digital total
- Codifier Decoder CODEC Wolfson %u0104 Surround Virtual Front (Virtual Front Surround III )
- Clearness of Voice by 'Clear Voice Sound '
- Decoder Dolby Digital/ DTS/ PLII
- Loads Front %u0104 DVD Video/ VCD/ CD DA/ MP3/ WMA/ JPEG/ Reproduction PHOTO CD
- Converter video DAC 10bit 54MHz
- Converter AUDIO DAC of 24bit 96/48 kHz
- DVD R/ RW (DVD R/ RW) %u0104 Reproduction of CD R/ RW
- Repetition REPEAT (ONE, ALL, PGM to B) RANDOM
- Reproduction PGM
Connections:
- 4 Entries analogic (Line 1~2 TV AUX) - RCA pin
- Brought in Digital DAP - by mini jack stereo
- 1 Exit of Audio Analogic (Line 1) %u0104 Exit of Previous gives birth 6 canals [6ch Pre out (Front L/ R Surround L/ R, Headquarters, Sub woofer )]
- 1 Exit of Audio Digital (Exit Optica: Train of Pulses/ PCM )
- Gone out from Video (Compound, S Video )
- Adapter Euroconector SCART (Compound L/ R RCA? SCART plug
Measurements:
- (Enlarge x High x Bottom:) 270 101 347 mm
Weight:
- 5 kg
Section Loudspeakers:
- 2 paths 2 altavoces 1vía of Band Completes
- 2 paths: Woofer 13cm of suspension acoustic, Tweeter of 2.5cm of top management balanced
- 1 path: Of band complete of 5cm of suspension acoustics
- Grating front extraíble
Measurements:
- (Enlarge x High x Bottom:) 164 330 211 mm
Weight:
- 3.9kg | | Key Features | Digital Pre Amplifier | | Virtual Front Surround III | | Kenwood Auto Room EQ Technology | | DVD Video/ DVDR/ RW/ VCD/ MP3/ WMA/ JPEG Playback | | Incl. SCART Euro connector adaptor |
General Features | Virtual Front Surround III | Music/ Movie | | Clear Voice Sound | Music/ Movie | | Width Control | Narrow/ Wide | | Auto Room EQ | Yes | | Room EQ Mode | Normal / Wide/ Night | | D/ to Converter | 24 Bit 96/48kHz Wolfson | | Midnight Mode for Dolby Digital/ DTS | Yes | | Equalizer | 7 Band | | Tone Control | Yes, with Turnover Frequency Setting | | D Bass | Music/ Movie (0~10 ) |
Tuner Features | Tuner (AM/ FM ) | Yes | | Program Type (PTY ) | Yes | | Number of Presets | 40 | | Timer | Sleep (10~90 min.) & AI Timer (Prog.1 & 2 ) |
Playable Is | PAL | Yes | | NTSC | Yes | | DVD Video | Yes | | DVD R | Yes | | DVD RW | Yes | | DVD R | Yes | | DVD RW | Yes | | CD GIVES / CD R/ RW | Yes | | VCD | Yes | | MP3 | Yes | | WMA | Yes | | JPEG Digital Still | Yes |
Surround Formats | Dolby Digital | Yes | | Dolby Advantage Logic II | Yes | | Dolby Advantage Logic | Yes | | Virtual Front Surround III | Yes |
DVD General Features | NTSC Playback on PAL TV | Yes | | Video D/ to Converter | 54MHz 10 bit | | Audio D/ to Converter | 96/48kHz/ 24 bit | | Multi aspect TV Screen Mode | 4:3/ 16:9 | | Dolby Digitalis/ DTS Bitstream Digital Output | Yes | | PCM Digital Output | Yes | | 2 ch. Downmix Output for Multichannel Sound | Yes | | Selectable Camera Angle View | Yes | | Menu Languages | English, German, French, Italian, Spanish, Japanese, Chinese, Taiwanese | | Remote Control | Yes |
DVD Conveniences | On screen Display | Yes | | Parental Control | Yes | | Fast/ Slow motion Playback | Yes | | Frame Forward/ Backward & Freeze Frame | Yes | | Program Playback | Yes | | Repeat Playback | Chapter/ Title/ Track/ All / to B | | Random Playback | Yes |
CD Features | CD GIVES / CD R/ RW | Yes | | MP3 | Yes | | WMA | Yes | | CD Text | Yes | | Program Playback | Yes | | Repeat Playback | Track, Program, All | | Random Playback | Yes |
Digitalis Inputs/ Outputs | Optical Audio Input/ Output | - / 1 |
Analogue Inputs/ Outputs | RCA Audio/ Video Inputs | 4 Audio | | RCA Audio/ Video Outputs | 1 Audio/ 1 Video | | S Video Output | Yes | | Composite Video Output | Yes | | Pre outputs | Surround 1/ Surround 2/ Subwoofer/ Center | | Headphone Jack (3.5 mm ) | Yes | | Headphone/ Rec.Out Terminal (switchable ) | Yes | | Mr. A.P. Link Terminal | analogue 3.5 mm | | 75 Ohm FM Antenna Connector | Yes | | AM Antenna Connector | Yes |
Audio Specifications | Signal/ Noise Ratio | 100dB | | Total Harmonic Distortion | 0.001% (CD Cover/ Video 1 Output ) | | D Bass Music Mode | 13dB (40Hz, Volumen 60 ) | | D Bass Movie Mode | 15dB (40Hz, Volumen 60 ) | | Equalizer Frequencies | 63, 160, 400, 1000, 2500, 6300, 16000 | | Equalizer Changeable Range | dB | | Bass (Turnover 100Hz/ 150Hz/ 200Hz ) | .1/ 5.1/ 5.7dB (at 100Hz ) | | Treble (Turnover 5kHz/ 7kHz/ 10kHz ) | / 0/ 0dB (at 0kHz ) | | Input Sensitivity/ Impedance: Line | 700mV/ 40k%u2126 | | Output Level/ Impedance: Digital Audio Out | 1V/ 32%u2126 | | Output Level/ Impedance: Subwoofer Pre Out | 0.6V/ 600k%u2126 | | Digital Optical Output | -21 ~ -15dBm (Wave length 660nm ) |
Tuner Specifications | FM Tuning Frequency Range | 87.5 ~ 108MHz | | AM Tuning Frequency Range | 531 ~ 1602kHz |
DVD General Specifications | Laser | Semiconductor Laser | | Tray Type | Single | | Video Format | PAL/ NTSC |
DVD Video Specifications | Composite Video Output Level | 1Vp p (75%u2126 ) | | S Video Output Level And signal | 1Vp p (75%u2126 ) | | S Video Output Level C signal | 1Vp p (75%u2126 ) |
Power Specifications | Power Consumption | 46 Watt | | Stand by Power Consumption | Less than 0.45 Watt |
Dimensions & Weight | Dimensions (WxHxD ) | 270 x 101 x 347 mm | | Weight (Net ) | 4.3kg |
M-AX7 Key Features | Switchable 4ch./2ch. BTL Power Amplifier | | Discrete Power Amplifier topology | | 2 channel configuration: 2 x 50 Watt | | 4 channel configuration: 4 x 25 Watt | | 2 Analogue Audio Inputs (Front - Surround ) |
Amplifier Features | Maximum Surround Output Power | 4 x 25 Watt | | Maximum Stereo Output Power | 2 x 50 Watt | | Digital Pre Amplifier | Yes | | BTL (Bridge Tied Laud) Amplifier | Yes | | Advanced Ground Line | Yes |
Audio Specifications | Effective Output Power | 2 x 50 Watt (1kHz, THD 10%, 6%u2126 ) | | Effective Output Power (Surround ) | 4 x 25 Watt (1kHz, THD 10%, 6%u2126 ) | | Signal/ Noise Ratio | 105dB | | Signal/ Noise Ratio (Surround ) | 100dB | | Total Harmonic Distortion | 0.0025% (1kHz, 19W, 6%u2126 ) | | Total Harmonic Distortion (Surround ) | 0.003% (1kHz, 10W, 6%u2126 ) |
Power Specifications | Power Consumption | 130 Watt | | Stand by Power Consumption | Less than 0.25 Watt |
Dimensions & Weight | Dimensions (WxHxD ) | 270 x 101 x 336 mm | | Weight (Net ) | 5kg |
LS AXD7 Key Features | 2 way Speaker System with Built in Satellite Speakers |
Speakers | Type | Bookshelf | | Configuration | 2 way 2 speaker System with Built in Full Range Effect Speaker | | Built in Surround/ Effect Speaker | Yes | | Push type Terminals | Yes | | Magnetically Shielded | Yes | | Grill | Detachable |
Speaker Specifications | Peak Input Power | 50 Watt | | Frequency Response | 45Hz ~ 20kHz | | Frequency Response Effect Speaker | 140Hz ~ 20kHz | | Impedance | 6%u2126 | | Sensitivity | 85dB/W at 1m | | Sensitivity Effect Speaker | 81dB/W at 1m | | Woofer | 120 mm (4-3/4) "Cone type | | Tweeter | 25 mm (1") Balanced Tames type | | Effect Speaker | 50 mm (2) "Cone type |
Dimensions & Weight | Dimensions (WxHxD ) | 164 x 330 x 211 mm | | Weight (Net ) | 3.9kg |
|
|
