Reference D40DIPOLO | CUSHCRAFT
CUSHCRAFT D-40 Rigid dipole 40 meters (7 Mhz) Length 12.88 meters
D40 CUSHCRAFT Dipole Antenna 7 Mhz 40 meter band Maximum power 2000W MAXIMUM LENGTH OF ELEMENTS 12.88 m MAXIMUM ANTENNA SURFACE 0.12 m2 MAST DIAMETER 32-50 mm WEIGHT 5 Kg.
We're sorry, this item is no longer available.
Description CUSHCRAFT D40DIPOLO

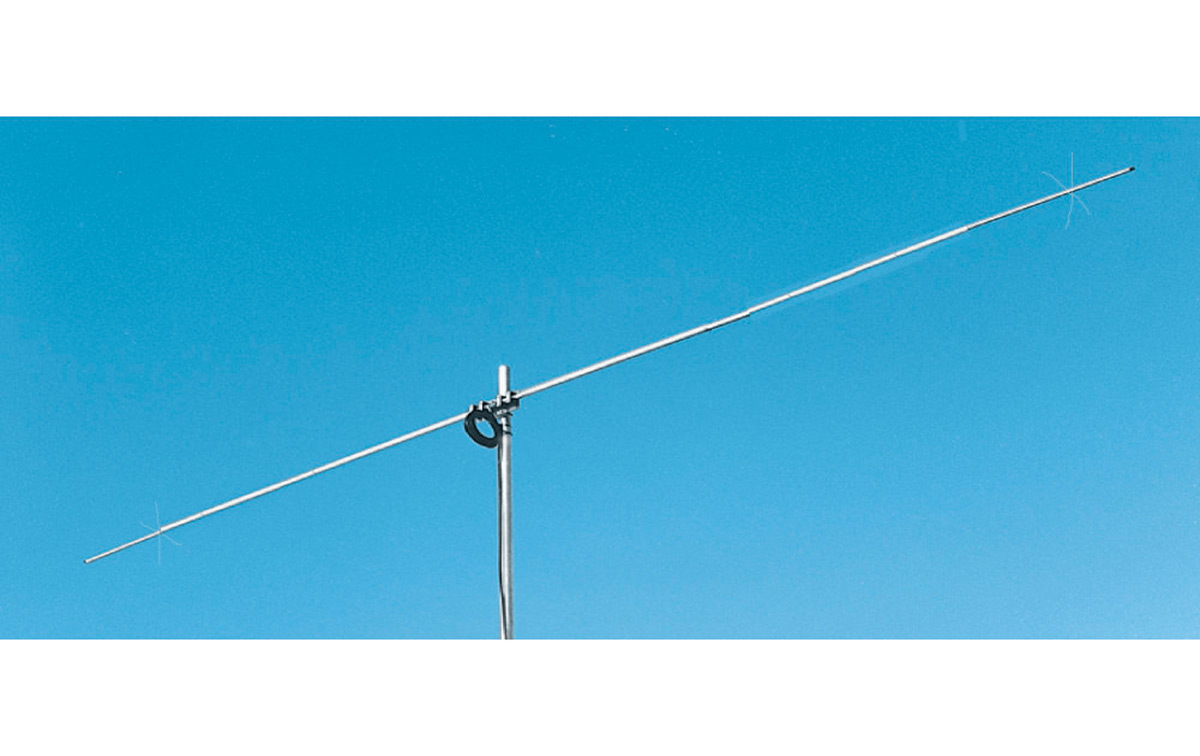

Cushcraft D-40 Dipole
D40 CUSHCRAFT Dipole Antenna 7 Mhz Band of 40 meters Maximum power 2000W
MAXIMUM ELEMENTS LENGTH 12.88 m
MAXIMUM ANTENNA SURFACE 0.12 m2
MAST DIAMETER 32-50 mm
WEIGHT 5 Kg.
Kit contents
- 1 Dipole Antenna D-40
- Mounting accessories
Characteristics
- Frequencies 7 Mhz - Band 40 meters
- Impedance 50 ohms
- Bandwidth 200 Khz
- Rigid dipole format
- Maximum power 2000 watts
- Maximum element length 12.88 m.
- Mast mounting 38-50 mm
- SWR 1.5
- Weight 5 kg
