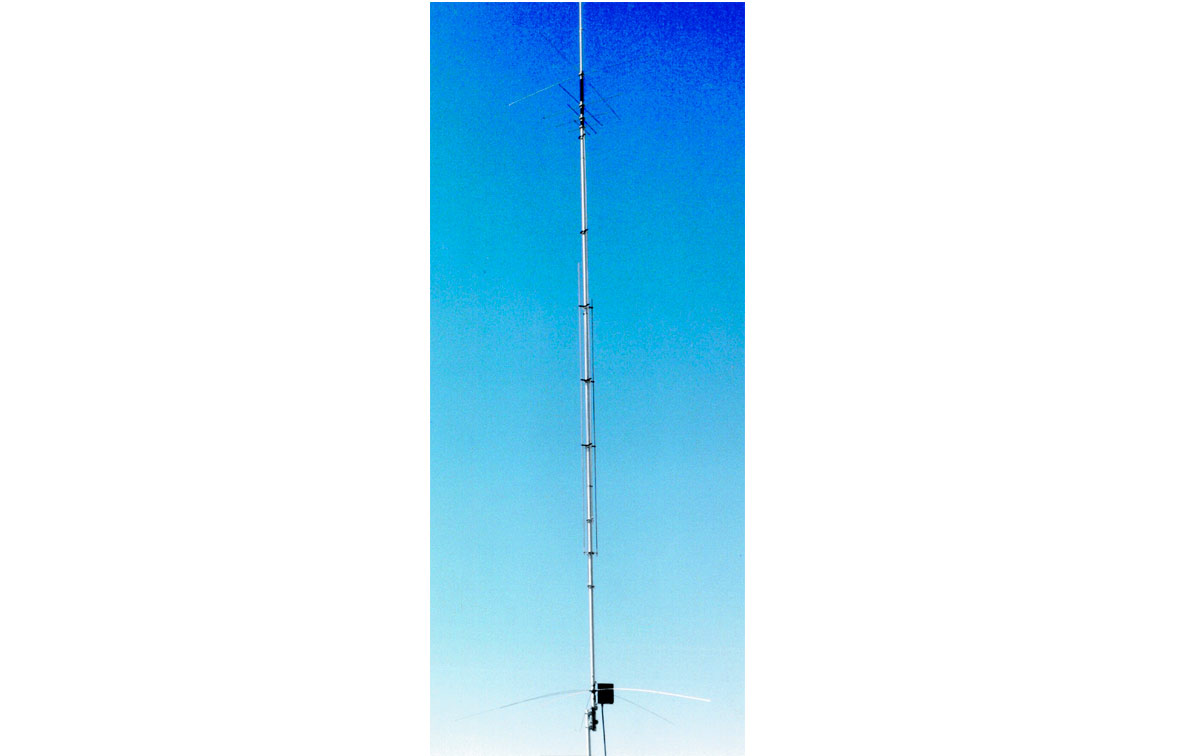

AV-680 HY-GAIN Multiband HF vertical antenna 9 bands 6,10,12,15,17,20,30,40,80 meters. If space is an advantage in your QTH and appearance is important, let Hy-Gain open the door to one of the most attractive and popular bands in amateur radio with t
Description HYGAIN AV680
AV-680 HY-GAIN HF multiband vertical antenna 9 bands 6,10,12,15,17,20,30,40,80 meters. If space is an advantage in your QTH and appearance is important, let Hy-Gain open the door to one of the most attractive and popular bands of the radio amateurs with the new AV-680. This is your best option for unrivaled versatility and band coverage from 6 to 80 meters!
Vertical multiband antenna improves more robust and higher performance
No earth or radials are needed
Effective counterweight replaces radials
Final feed with broadband unit
Automatic bandswitching
Simple coaxial cable feed
Each band is individually tuneable
Wide bandwidth VSWR
Elegant and low profile
Surface of low winds.
Small area required for assembly
Mounts easily to decks, ceilings and patios
Built to last
Survival of strong wind
Combined unit made of all insulated Teflon (R) cables
- Bands: (80/40/30/20/17/15/12/10 and 6 m)
- Frequencies (3.5 / 7/10/14/18/21/24/28 and 50 Mhz)
Contents of the kit- 1 HYGAIN AV-680
Features
- Bands: (80/40/30/20/17/15/12/10 and 6 m)
- Frequencies (3.5 / 7/10/14/18/21/24/28 and 50 Mhz)
- Impedance: 50 Ohm
- Win 3 dBI
- Maximum power: 1500 watts PEP
- Connector: PL female
- ROE: Less than 1.5: 1
- Height: 8 m
- Weight: 10,200 Kg
- Wind speed: 80 MPh
- Diameter mast: 38-41 mm
