AV-18AVQII HY-GAIN Multiband HF vertical antenna 5 bands 10,15,20,40,80...
AV-18AVQII HY-GAIN Multiband HF vertical antenna 5 bands 10,15,20,40,80 meters, The classic is back with an improved design that includes three Hy-Q dielectric air traps from 10 to 40 meters - PEP 1.5 kW.
Make the first review539,66€ VAT included 446,00€ excl. VAT
available. Estimated delivery 2-5 days. available in shop Last units Delivery price from 30,25€
Description HYGAIN AV18AVQII
HYGAIN AV-18AVQII

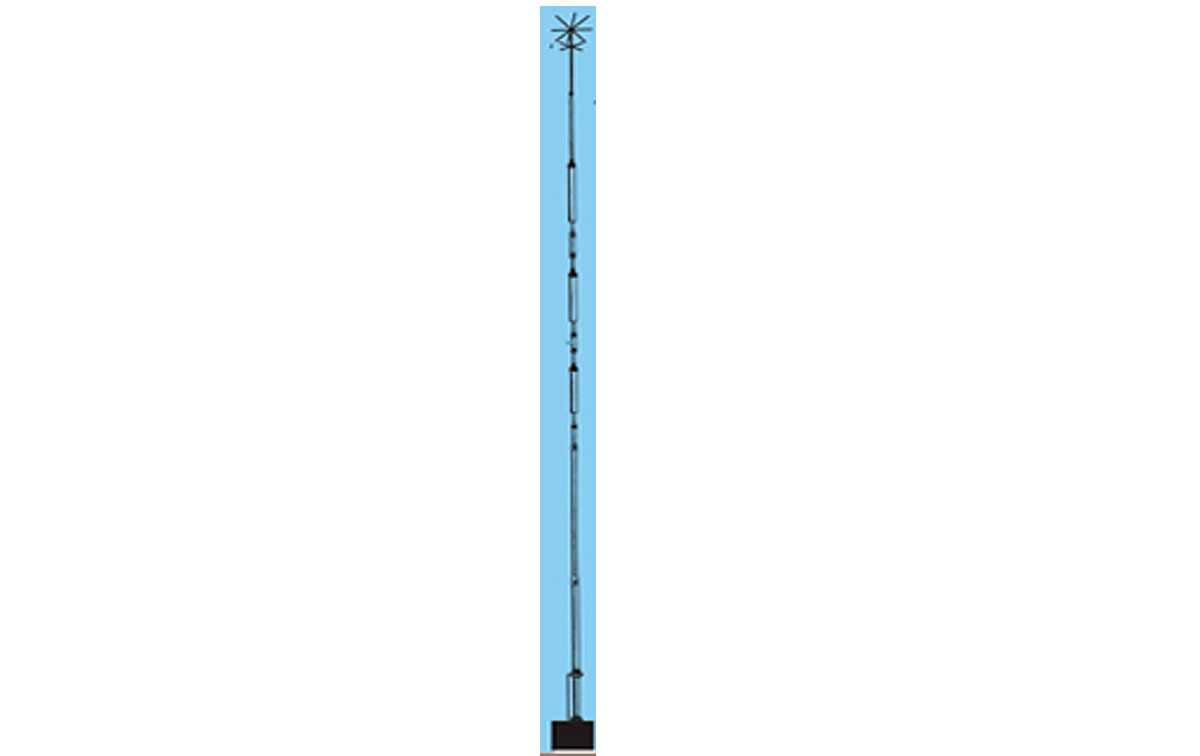

AV-18AVQII HY-GAIN HF multiband vertical antenna 5 bands 10,15,20,40,80 meters, The classic is back with an improved design that includes three dielectric Hy-Q air traps from 10 to 40 meters - PEP 1.5 kW.
- Bands: 10, 15, 20, 40 and 80 m.
- Frequencies 28,21,14,7 and 3,5 Mhz.
Contents of the kit- 1 HYGAIN AV-18-AVQII
Features
- Bands: 10, 15, 20, 40 and 80 m.
- Frequencies 28,21,14,7 and 3,5 Mhz.
- Impedance: 50 Ohm
- Maximum power: 1500 watts PEP
- Connector: PL female
- ROE: Less than 1.5: 1
- Height: 5.50 m
- Weight: 5 Kg
- Wind speed: 80 MPh
- Diameter mast: 38-41 mm
