New Kenwood TS 990S (KM.0) exhibition material IberRadio

KILOMETER 0 OFFER - New Kenwood TS 990-S HF / 50 MHZ TRANSMISSION. - Dual display - Adjustable power 5 w. to 200 Watts. - COM port USB A/B port & LAN port - Not available in Europe at the moment. more Manufacturer: kenwood Reference TS990SKM0

discontinued
Before 8046.50€

Kenwood TS-990-S ... UNIQUE OPPORTUNITY !!!!!

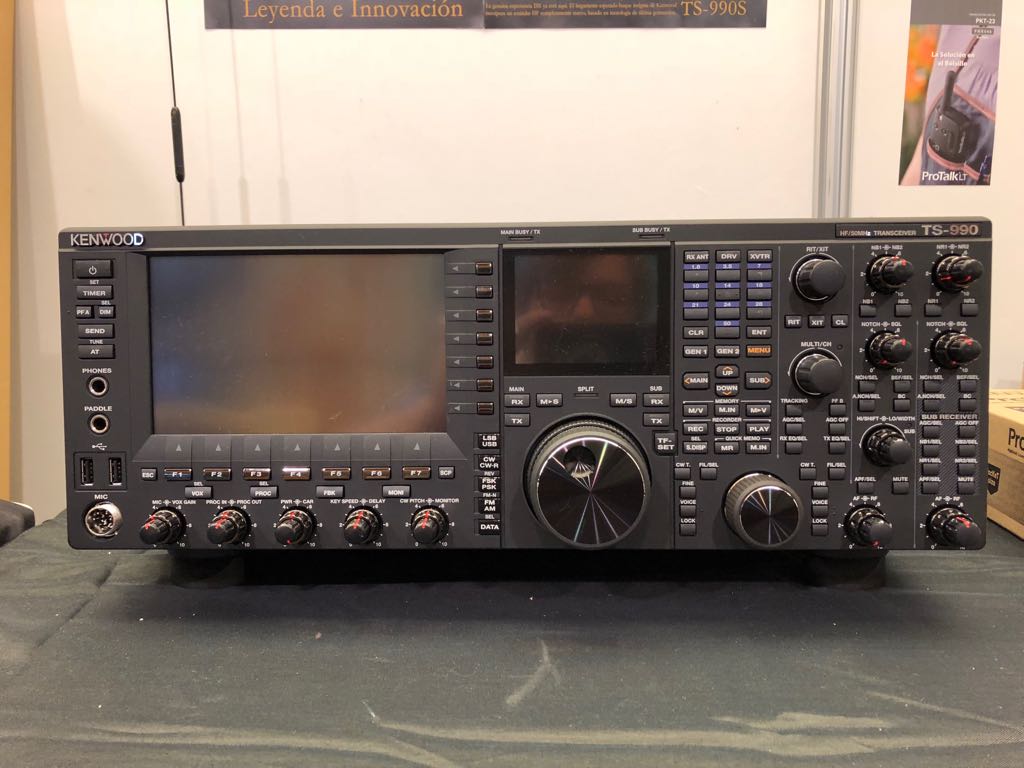

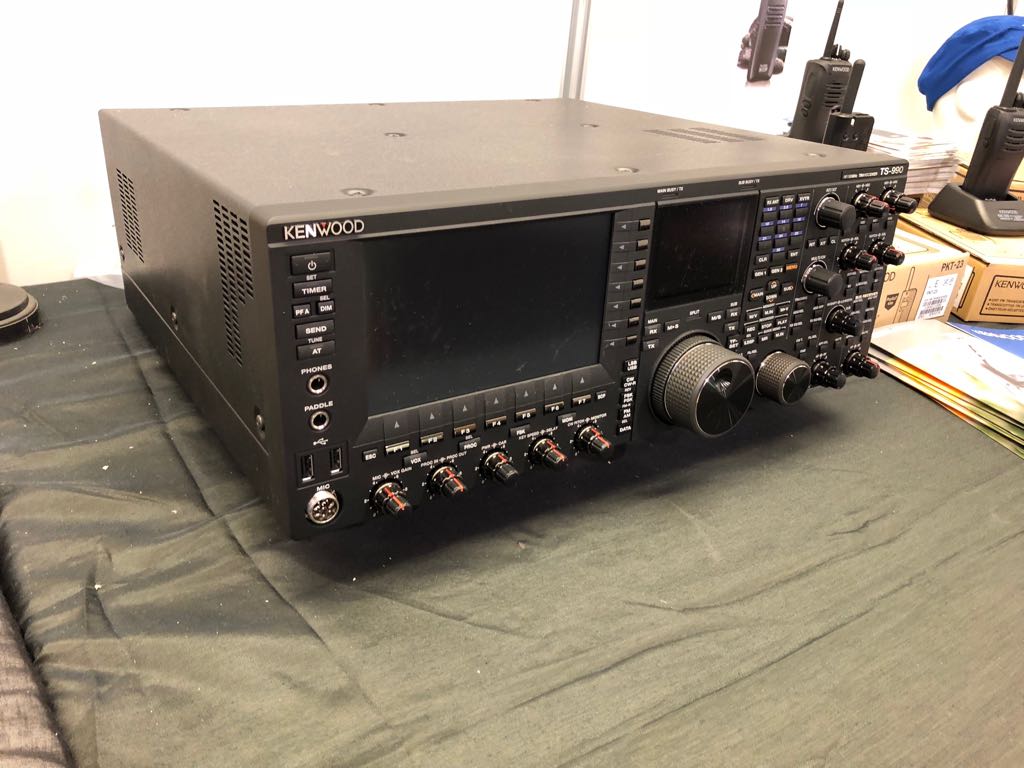

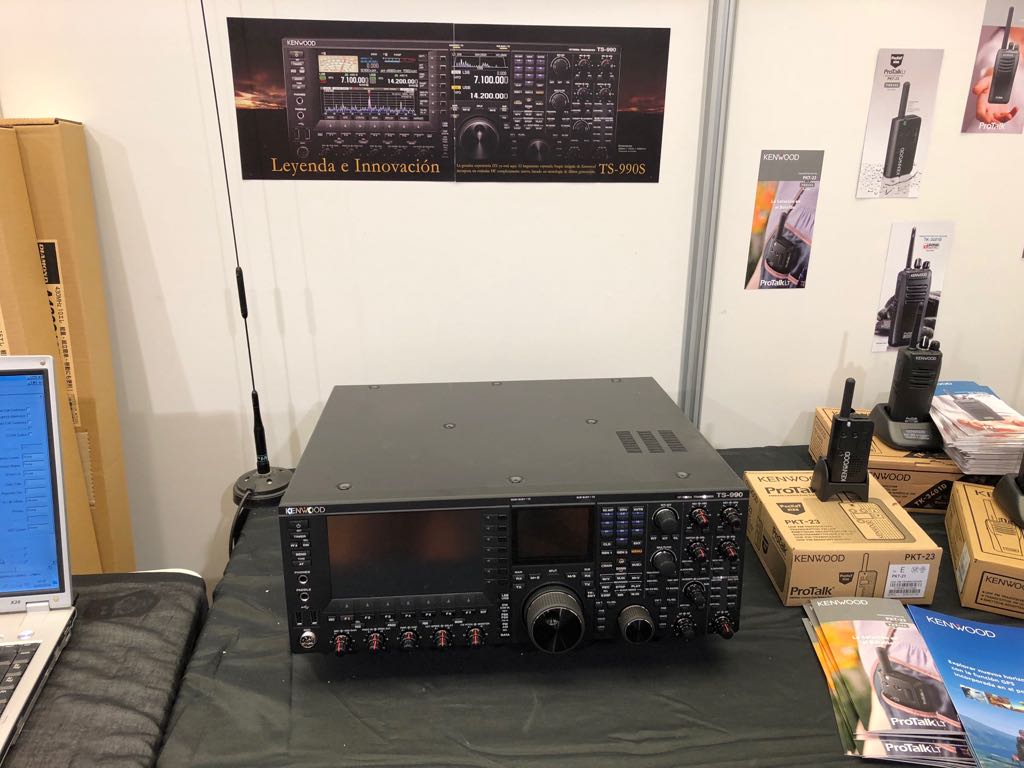

This product has a special price because it was exhibited at the IberRadio fair. The packaging is in perfect condition and has all the accessories and accessories supplied as standard.

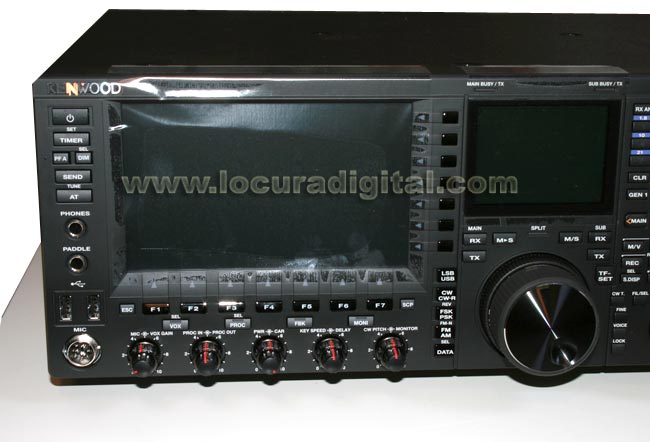

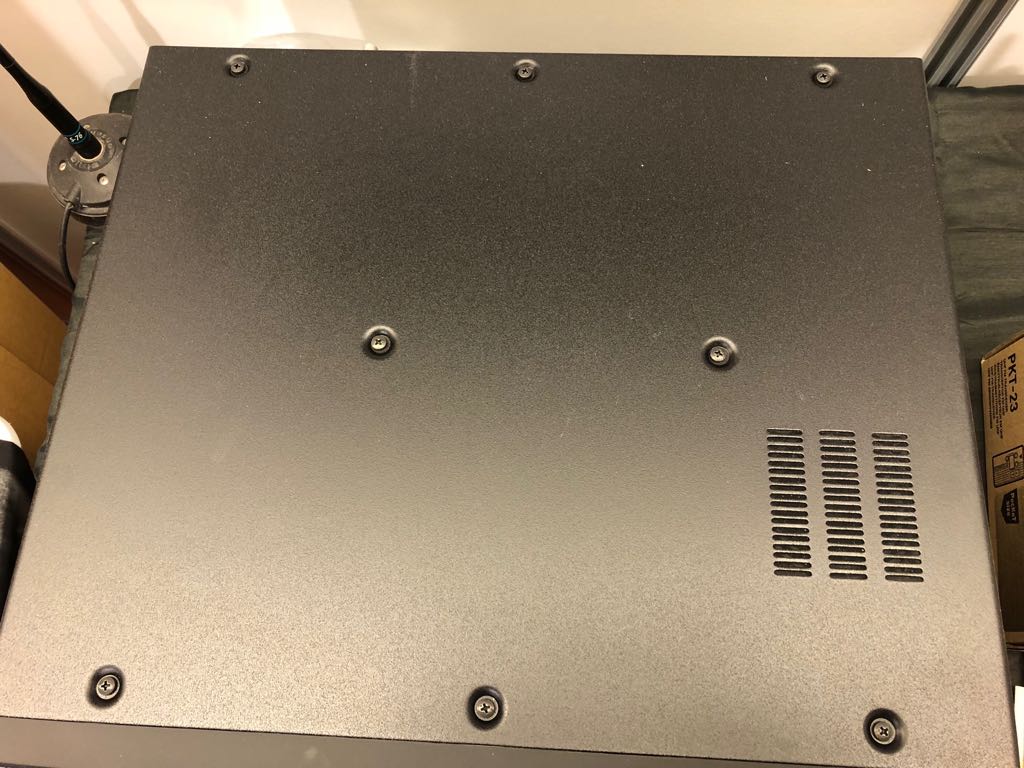

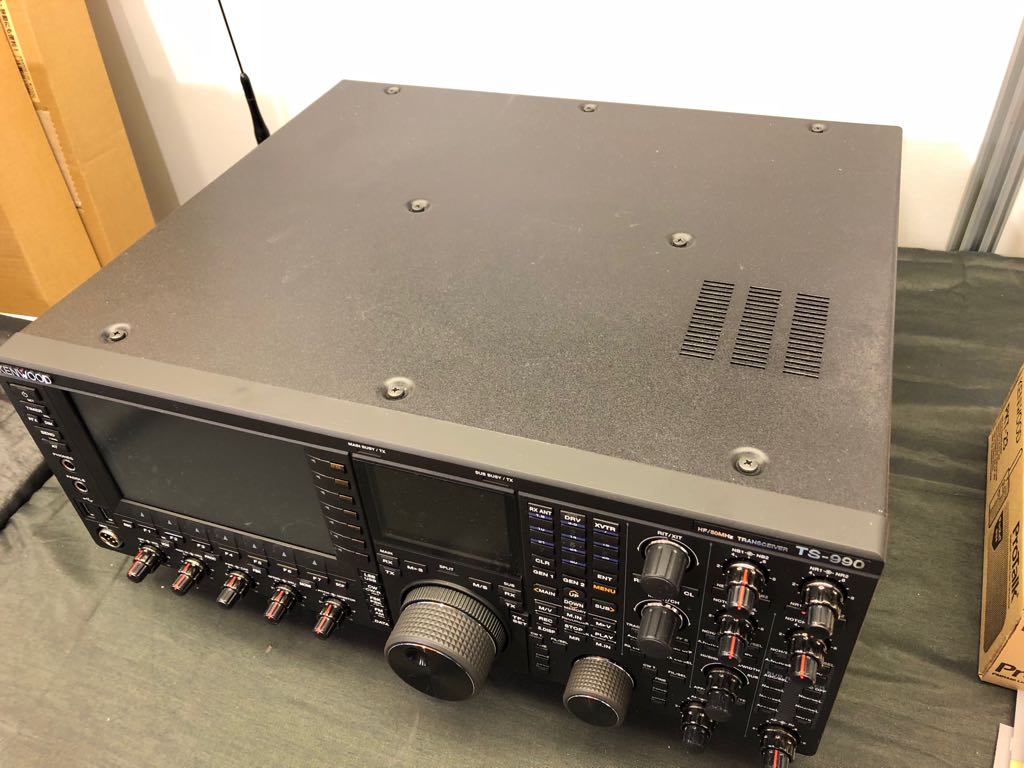

The product is completely new and it was not even connected (it was only exposed for about 16 hours) and it retains its official KENWOOD guarantee as a new product. See photos below:

KENWOOD TS990SKM0

KENWOOD TS990SKM0

KENWOOD TS990SKM0

KENWOOD TS990SKM0

KENWOOD TS990SKM0

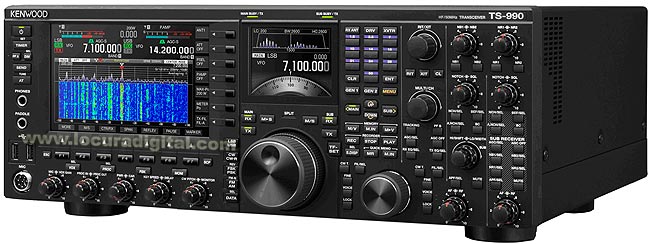

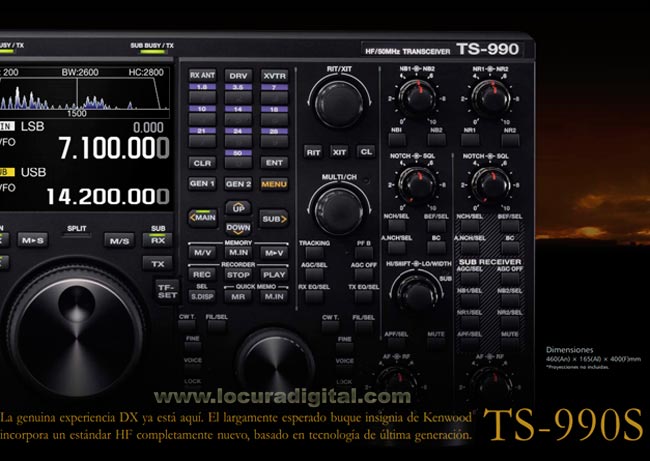

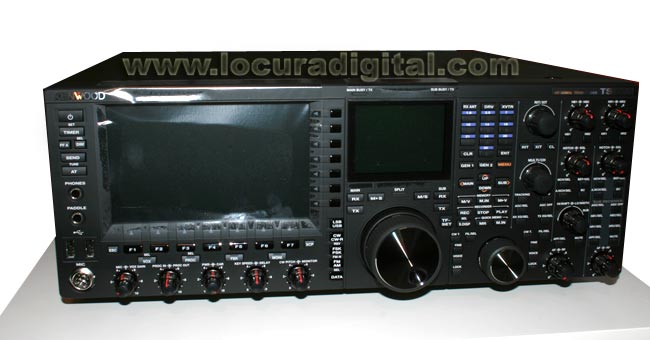

The new Kenwood TS-990 , an HF equipment ready to revolutionize radio communication.

HF/50MHz Transceiver "Flagship"
200 Watts Output from 50V Push-pull FET Amplifier
Intercept point at 40dBm
Main Receiver - Down Conversion on All Bands 270Hz/500Hz/2.7kHz/6kHz/15kHz Roofing Filter
Secondary Receiver - Down Conversion on 15/20/40/80/160M Bands (as TS-590S) 500Hz/2.7kHz Roofing Filters
2 TDF color screens
3 DSP Processors
It incorporates RTTY/FSK/PSK31 Encoder/Decoder. QPSK update
4 SO-239 antenna connectors plus RCA jack for reception and output antenna. "Antenna name" on display for each SO-239 connector

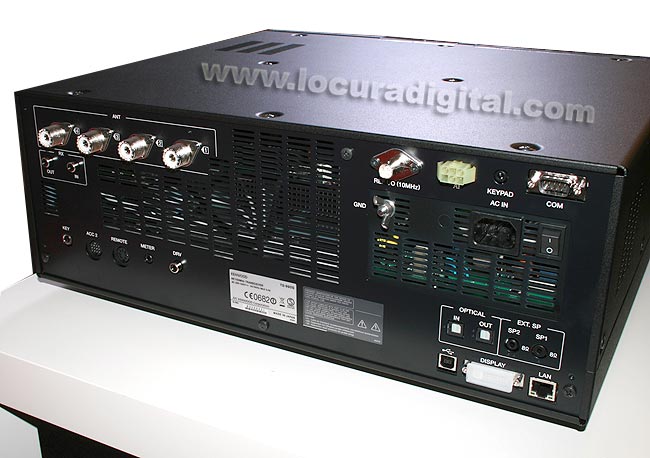

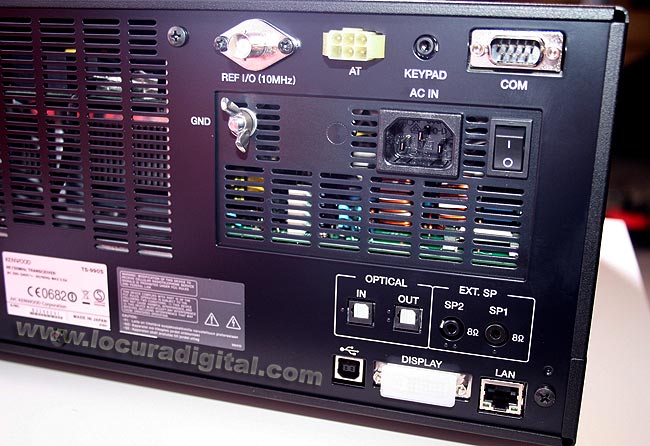

Connectivity: - 10MHz reference oscillator (BNC) - External ATU port - Keyboard input - COM port (9-pin female) - Keyer - Paddle - 2 USB-A, 1 USB-B - "ACC-2" Audio/Data Connector - "Remote" connector - 3.5 mm meter jack - "DRV" low-level LF drive - SPDIF optical input/output - 2 external speaker connectors - DVI-I Dual-link video port - LAN port.

NOTE: Does not include microphone.

Valid microphone NOT INCLUDED KENWOOD MC-60

Kenwood TS-990-S

The kenwood TS990S KIT INCLUDES:

1 AC Power Cord
1 Instruction manual and includes diagrams
1 Sockets 1 x DIN 7-pin; 1 x DIN 13-pin

Kenwood TS-990-S

Kenwood TS-990-S

Kenwood TS-990-S

Kenwood TS-990-S

Kenwood TS-990-S

Kenwood TS-990-S

Kenwood TS-990-S

Kenwood TS-990-S

Kenwood TS-990-S

KENWOOD TS990SKM0

Features


margin of
frequencies
(Transmitter)
160m band 1.81 ~ 2.0 MHz
80m band 3.5 ~ 3.8 MHz
band*1
60m 5.25~5.45MHz
40m band 7.0 ~ 7.2 MHz
30m band 10.1 ~ 10.15 MHz
20m band 14.0 ~ 14.35 MHz
17m band 18.068 ~ 18.168 MHz
15m band 21.0 ~ 21.45 MHz
12m band 24.89 ~ 24.99 MHz
10m band 28.0 ~ 29.7 MHz
6m band 50.0 ~ 52.0 MHz
frequency range
(Receiver)*
two
0.13~30MHz, 50~54MHz
VFO: Continuous 30 kHz ~ 60 MHz
Mode
A1A(CW), A3E(AM), J3E(SSB), F3E(FM),
F1B(FSK), G1B(PSK)
Frequency stability ±0.1 ppm (0 °C ~ 50 °C)
Antenna impedance 50 O
Antenna tuner range 16.7 O ~ 150 O
Supply voltage AC 220 ~ 240 V (50/60 Hz)
Power margin ±10% (AC 198 V ~ 264 V)
Consume of
stream
in transmission
(maximum)
= 840VA
At reception
(no signal)
= 200VA
Operating temperature 0 °C ~ 50 °C

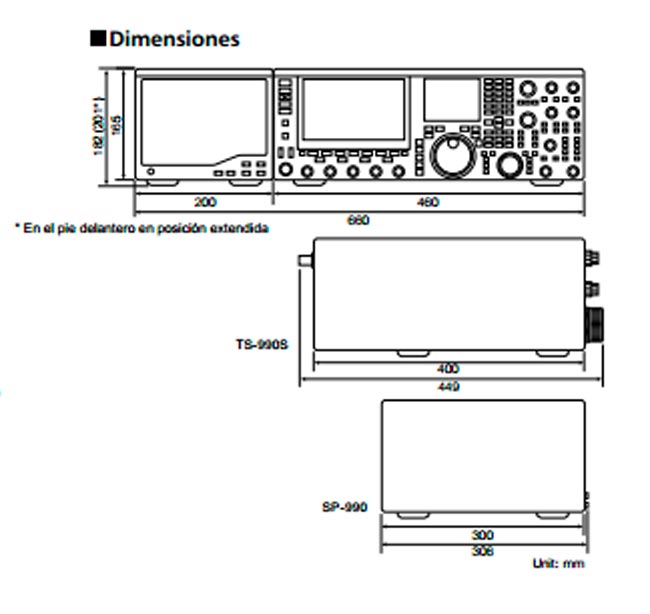

Dimensions
Without projections W 460 x H 165 x D 400 mm
With projections W 460 x H 182 x D 449 mm
Foot of the pos. extended H 201 mm (front panel), H 173 mm (rear panel)
Weight Approx. 24.5kg
Transmitter
Power
of Exit
CW/SSB/FSK/
PSK/FM (AM)
200W (50W)
Modulation SSB:Balanced, AM:Low Power, FM:Reactance
Maximum Frequency Deviation (FM) wide: = ±5 kHz, narrow: = ±2.5 kHz
spurious radiation
HF (Harmonics) : = -60 dB
HF (others) : = -50 dB
50MHz: = -66dB
Carrier Suppression = -60 dB
Unwanted Sideband Suppression = -60 dB
Transmission frequency response Within the range -6 dB (300 ~ 2700 Hz)
Microphone impedance 600 O
Variable band XIT ±9.999 kHz General Amateur Radio Characteristics
I/O Port Reference 10 MHz Yes
"Band Elimination Filter" Yes
Display bands-scope Yes
CW Keyer included with Message Buffer Yes
Power supply included Switched type PSU
Voice Guidance and Recording unit included Yes
Clock Yes
COM port D-sub 9 pin Yes
Connectivity Connectivity: - 10MHz reference oscillator (BNC) - External ATU port - Keyboard input - COM port (9-pin female) - Keyer - Paddle (6.3mm jack) - 2 USB-A, 1 USB-B - Audio/Data connector "ACC-2" - "Remote" connector - 3.5 mm meter jack - "DRV" low-level LF drive - SPDIF optical input/output - 2 external speaker connectors (3.5mm jacks) - DVI-I Dual-link video port - LAN port
Connector for External ATU Yes
Connector for remote linear amplifier Yes
Digital optical port Yes, I/O
Illumination key Yes - 4 lighting levels for display and LEDs.
Band Direct Access Buttons Yes, 10 buttons for Amateur bands 1.8 - 50 MHz plus 2 buttons for general coverage. Up to 5 memory bands per button
Direct input of frequencies Yes
"DVR" Low Drive Output Terminal Yes, RCA Jack - 1 mW output covers bands 1.8 to 50 MHz plus 135.80-137.70 kHz LF band
Dual reception Yes
DSP devices 3 DSP devices Analog Devices Inc SHARC 32-bit for main IF, secondary IF and Bandscope function
DSP functions Equalizer RX with 3 user settings
Firmware update via USB port Yes
Front Panel Keyboard Yes
Dual RX Output Headphone Jack Yes, Main and Secondary RX Audio can be heard mixed or separately on left/right channel
Key lock Yes
LAN port Yes
Speaker socket Two external speakers can be connected via the 3.5mm connectors. Impedance 4 - 8 ohms
Memory channels with alphanumeric label 120 Memory channels
8-pin microphone socket "Chrome" type
Mute function Yes
PC Radio Control Program (Optional) Yes
Pre-amplifier Yes, Configurable by band
Pre-selector Yes, Configurable
Function Programmable Keys Yes, 9 PF keys
PSK31 Compatible Yes
Remote Operation via Internet ARHP-990 software allows remote management
Roofing Filter Equipped with 270Hz, 500Hz, 2.7kHz, 6kHz and 15kHz as standard
Sky Command 2 Yes
Voice Processor Yes
Secondary Receiver Yes, Equivalent to TS-590S Primary Receiver

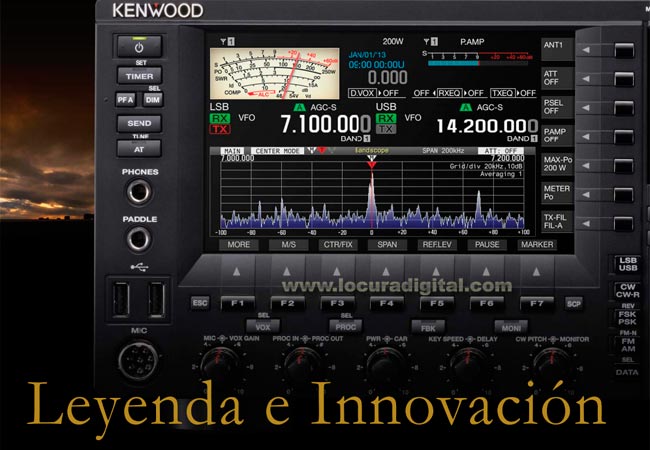

TFT Color Display Yes, 2 TFT screens. 7" main screen with Bandscope, Cascade and tuning touch screen plus 3.5" secondary screen with audio display, PSK tuning meter, etc. Selectable background color. 4 types of S-meter presentation. Secondary display includes XY function (FSK) and vector function (PSK)
USB port Yes, 3 USB ports. 2 x USB-A for flash drives / keyboard. 1 x USB-B for PC connection
Amateur HF Specifications
HF output power 200 W SSB/FM/CW/FSK, 50 W AM
RF output power 50 MHz 200 W SSB/FM/CW/FSK, 50 W AM
Supply voltage AC 220 - 240 V (50/60 Hz)
Antenna impedance - 50 Ohm Yes
Antenna tuner (160 - 6 m Bands) - 16.7 Ohm to 150 Ohm Yes
Audio Output Impedance - 8 Ohm Yes
Audio Output Power More than 1.5 W (8 Ohm, 10% distortion)
Continuous Receive: 30 kHz - 60 MHz Yes, In Spec - 0.13 - 30 MHz & 50 - 54 MHz
Consumption (approx.) TX power consumption - 840 VA / RX power consumption - 200 VA
Frequency Stability ± 0.1 ppm 0 °C to 50 °C
Microphone Impedance - 600 Ohm Yes
A1A (CW), A3E (AM), J3E (SSB), F3E (FM), F1B (FSK) & G1B (PSK) mode
Notch Attenuation Filter Auto Mode - Greater than 60 dB Manual Mode - Greater than 70 dB
Operating temperature -0 °C to 50 °C
Elimination Beat Receive Greater than 40 dB
Circuitry Receiver Main Receiver - Double Superheterodyne Sub RX1 Lower Conversion - Double Superheterodyne Sub RX2 Upper Conversion - Triple Superheterodyne
Reception Frequency Range VFO Coverage = 30kHz - 60MHz Guaranteed Main Band Specification = 0.13 - 30MHz/50-54MHz
Reception IF Reception Less than 70dB
Image Rejection HF Reception - Less than 70dB 50MHz - Less than 60dB
Intermediate Frequency Reception Main receiver - 1st IF 8.248 MHz/2nd IF 24 kHz (FM - 455 kHz) Sub RX1 Lower conversion - 1st IF 11.374 MHz/2nd IF 24 kHz Sub RX2 Upper conversion - 1st IF 73.095 MHz/2nd IF 10.695 MHz/ ª IF 24 kHz (FM - 455 kHz)
Selectivity SSB Receive (LOW:200/HIGH:2800 Hz) - More than 2.4 kHz @ -6 dB/Less than 4.4 kHz @ -60dB CW/FSK/PSK (Wide: 500 Hz): More than 500 Hz @ -6 dB /Less than 1.2 kHz @ -60 dB AM (LOW:100/HIGH:3000 Hz) - More than 6 kHz @ -6 dB/Less than 12 kHz @ -60dB FM - More than 12 kHz @ -6 dB/Less than 25kHz @ -50dB
Receive Sensitivity - 0.13 - 0.522 MHz SSB/CW/FSK/PSK = less than 0.5µV AM = less than 6.3µV
Receive Sensitivity - 0.522 - 1.705 MHz SSB/CW/FSK/PSK = less than 4µV AM = less than 32µV
Receive Sensitivity - 1.705 - 24.5 MHz SSB/CW/FSK/PSK = less than 0.2µV AM = less than 2µV
Receive Sensitivity - 24.5 - 30 MHz SSB/CW/FSK/PSK = less than 0.13µV AM = less than 1.3µV
Reception Sensitivity - 28 - 30 MHz (FM) Less than 0.22µV
Receive Sensitivity - 50 - 54 MHz SSB/CW/FSK/PSK = less than 0.13µV AM = less than 1.3µV FM = less than 0.22µV
RIT frequency range ± 9.999 kHz
Carrier Suppression Less than -60 dB
Transmit Frequency Response (SSB) 300 Hz - 2700 Hz (within -6 dB)
Modulation in SSB/FM/AM Transmission = Balanced/Reactance/Low Power
Spurious Radiation Less than -60dB
Spurious transmission radiation - 50 MHz Less than - 66 dB
Unwanted Sideband Suppression Less than -60dB
XIT frequency range ± 9.999 kHz
Dimensions W x H x D = 460 x 165 x 400 mm without projections
Weight 24.5kg
