ICOM IC-705 Base and portable transceiver HF VHF/UHF 50-144- 430MHz -GPS

ICOM IC-705

ICOM IC-705 Base and portable QRP transceiver HF VHF/UHF 50-144- 430MHz -GPS with 10 watts, The IC-705 is a multi-band transceiver in all modes, which covers 1.8 to 50Mhz 2 m, 70 cm. In addition to traditional SSB, AM, FM, CW and RTTY modes, the transceiver also features D-STAR (Digital Smart Technology for Amateur Radio) DV and DD modes. A full-featured satellite mode has been incorporated! The large 4.3-inch touchscreen color display is the same size as that used in the IC-7300 and IC-9700. Dramatically improves visibility and operability in the fields
Maximum transmission power of 5W with BP-272 battery and 10W powered at 13.8VDC
SSB, CW, RTTY, AM, FM and DV modes
4.3” color touch screen
Real-time spectrum display and waterfall
micro USB connector
microSD card slot
WLAN/Bluetooth
GPS functions

Characteristics

• TX frequencies: 1,810–1,999 3,500–3,800 7,000–7,200
  10,100–10,150 14,000–14,350 18,068–18,168
  21,000–21,450 24,890–24,990 28,000–29,700
  50,000–52,000 144,000–146,000 430,000–440,000 MHz
• USB Mode, LSB,CW, RTTY, AM, FM, DV-D-STAR)
• BNC Antenna Connector
• Micro SD card slot
• Power 3 to 10 watts
• Voltage 13.8 volts external

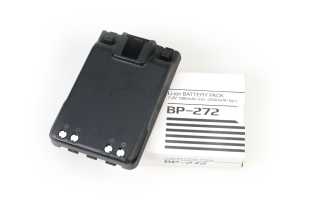

• Battery BP-272 Li-Ion 7.4V / 2000 mAh
• Continuous reception from 30 kHz to 144 MHz 70 cmm band
• USB port, SD card, Bluetooth, wireless LAN and GPS!
• 4.3 color touch screen
• Real-time spectrum scope and waterfall display
• Bluetooth and wireless LAN

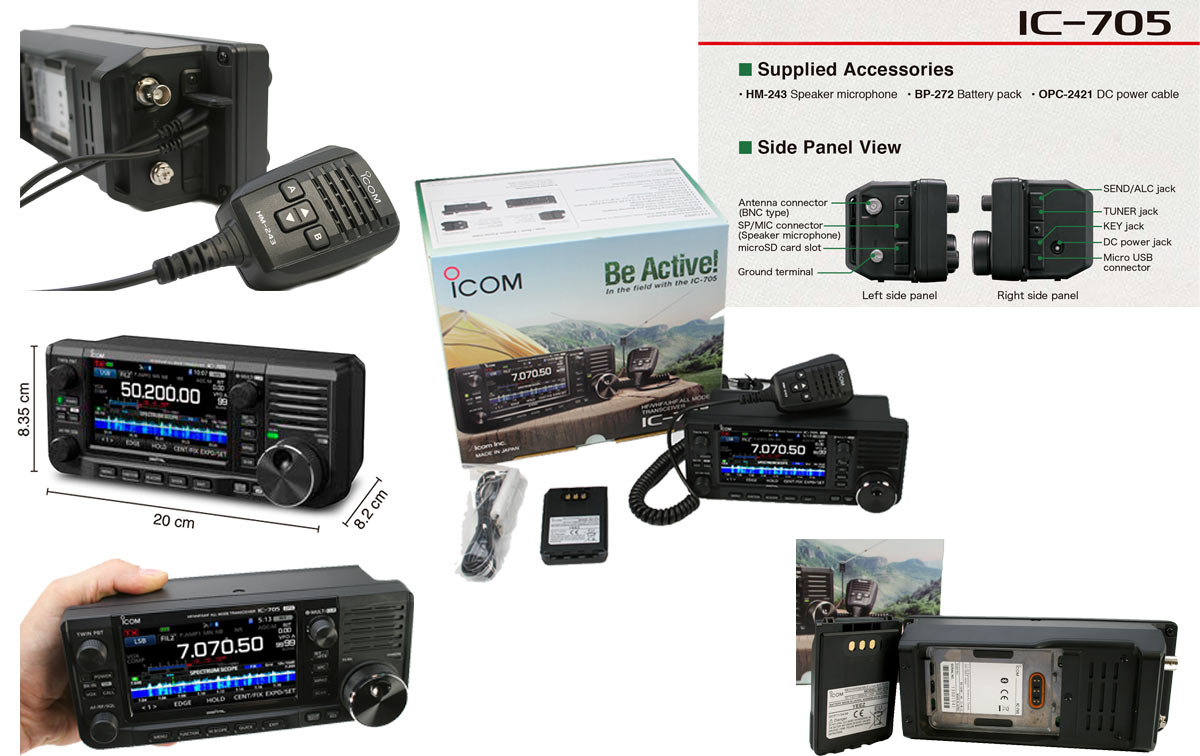

• Measurements: 200 x 83.5 x 82 mm
• Weight: 1.1kg.
