Reference SC1PLUSACECO | ACECO

SC 1 ACECO Frecuencimetro digital

SC 1 ACECO Frecuencimetro digital Especially designed to measure signals digital pulsantes analogic. - Display of Glass liquid with 7 digits. - Locates signals digitalises, On/ Off encriptadas and analogic of as minimum 250sS. - Detector of hig

We're sorry, this item is no longer available.

Description ACECO SC1PLUSACECO

DESCRIPTION of the PRODUCT

ref: SC1ACECO SC 1 ACECO Frecuencimetro digital

- Display of Glass liquid with 7 digits.
- Locates signals digitalises, On/ Off encriptadas and analogic of as minimum 250sS.

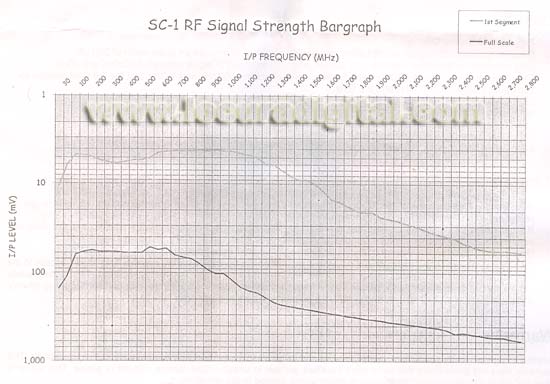

- Detector of high sensitivity - Measures through his chart of 16 bars, the intensity of the signals of RF (-35dBm until 0dBm.)
- Double position:
- 1 GHz: Stops frequencies between 300MHz and 0,8GHz.
- 2,8GHz: Stops frequencies between 500MHz and 2,8GHz.
- Allows the tightening of the squelch for the signals coming.
- Prompt of batteries short.
- Bring down consumption (5 hours approximately of autonomy.)
- One provides with that pack of batteries Nor Cd loader of wall and aerials telescopic (143MHz until 460MHz.)

Dress front frecuencimetro SC1 ACECO

ACECO SC1ACECO

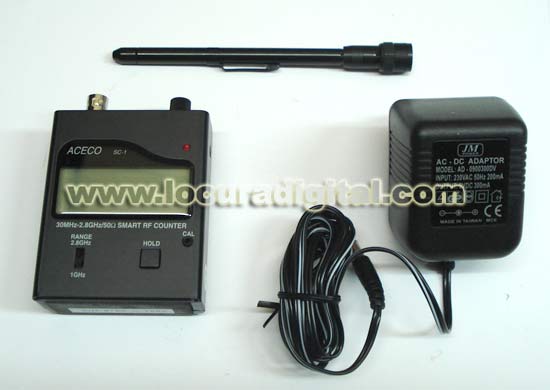

Content of the kit

ACECO SC1ACECO

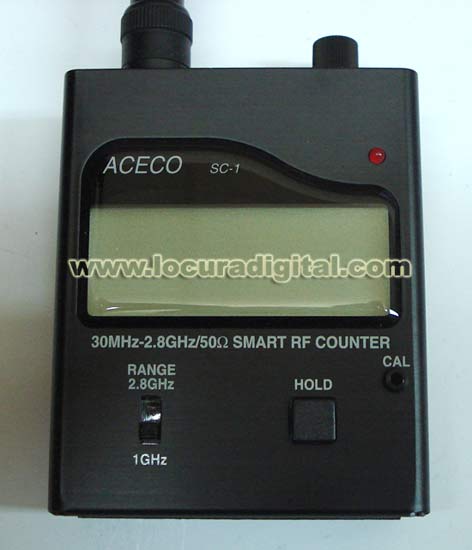

Dress front frecuencimetro ACECO SC 1

ACECO SC1ACECO

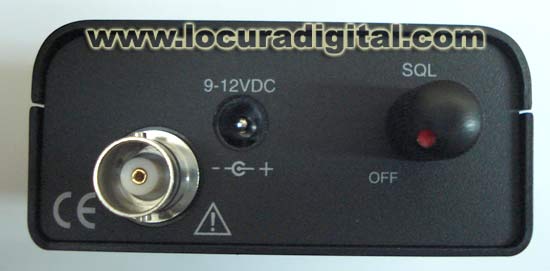

Dress superior frecuencimetro SC 1 ACECO

ACECO SC1ACECO

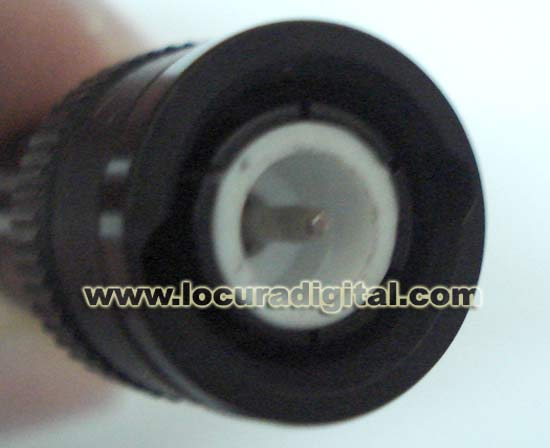

Connector of the Aerial

ACECO SC1ACECO

FEATURES

- Impedance: 50 Ohms (connecting BNC) VSWR more less than 2:1.
- Rank of frequency: 30MHz - 2,8GH
- Sensitivity: More less than 5mV.
- Max. Input: 15dBm.
- Solving: 10KHz in signals digitalises or On/ Off encriptadas and 1KHz analogic.
- Weight: 210 gr.
- Size: 80mm high x 68mm wide x 31mm depth.
- Box: Aluminium anodized in black.
- Baterias: Pack internal of batteries 4 X AA (600mAH Nor Cd.)
- Consumption: 9VDC, 300mA.

ACECO SC1ACECO
