Reference FC2002ACECO

FC 2002 ACECO Frecuencimetro digital

FC 2002 ACECO Frecuencimetro digital Food with loader and kitchenware of NI Cd. Aerial telescopic. Prompt of battery empty and medidor of intensity of signal. Detector of synchronization ultra sensitive. Measurement of frequency, period and auto a

We're sorry, this item is no longer available.

Description FC2002ACECO

DESCRIPTION of the PRODUCT

ref: FC2002ACECO FC 2002 ACECO Frecuencimetro digital

- Food with loader

- Battery of NI Cd (6 hours of autonomy.)

- Aerial telescopic

- Prompt of battery empty and medidor of signal.

- Detector of synchronization ultra sensitive

- Measurement of frequency, period and auto advance

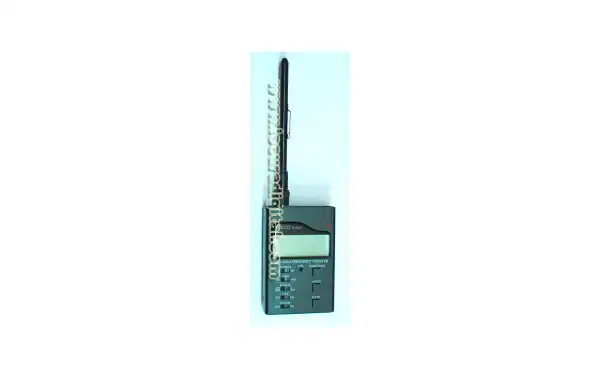

Dress front frecuencimetro ACECO FC2002

FC2002ACECO

Content of the kit

FC2002ACECO

Dress front frecuencimetro ACECO FC 2002

FC2002ACECO

Dress superior frecuencimetro ACECO FC 2002

FC2002ACECO

Connector of the aerial

FC2002ACECO

FEATURES

- Frequency & period: 10hz ............. 3Ghz
- Impedance: 1M/ 50 Ohms
- Digits: 10 LCD
- Solving: 0,1 Khz
- T.Disparo: 4
- Smeeter: 16 Segments
- Filter Noise: If
- Blockade: Auto
- Buzzer: If
- Lighting: If
- RF Finder: Not
- Sensitivity    < 0,8mV to 100Mhz
                          < 6,0mV to 300Mhz
                          < 7,0mV to 1Ghz
                          < 100mV to 3Ghz

RF SIGNAL STRENGTH BARGRAPH

Frequency	First segment	Full scale
27 Mhz	7 mV	100 mV
150 Mhz	5 mV	90 mV
800 Mhz	10 mV	200 mv

FREQUENCY DISPLAY RESOLUTION

Rank	Gate cheats (seconds )	LSD	Sample display
300 Mhz	0.0625	10 Hz	300.00000 Mhz
	0.25	1 Hz	300.000000 Mhz
	1.0	1 Hz	300.000000 Mhz
	4.0	0.1 Hz	300.0000000 Mhz
3 Ghz	0.0625	1000 Hz	300.000 Mhz
	0.25	100 Hz	300.0000 Mhz
	1.0	10 Hz	300.00000 Mhz
	4.0	10 Hz	300.00000 Mhz
