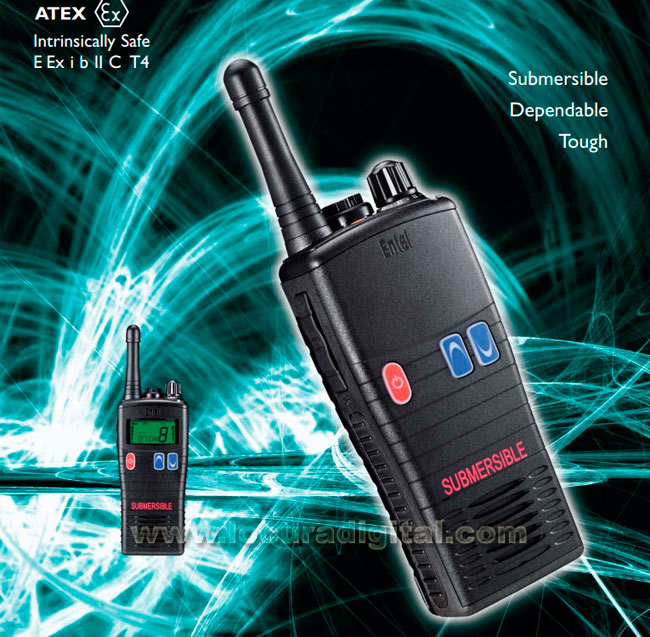

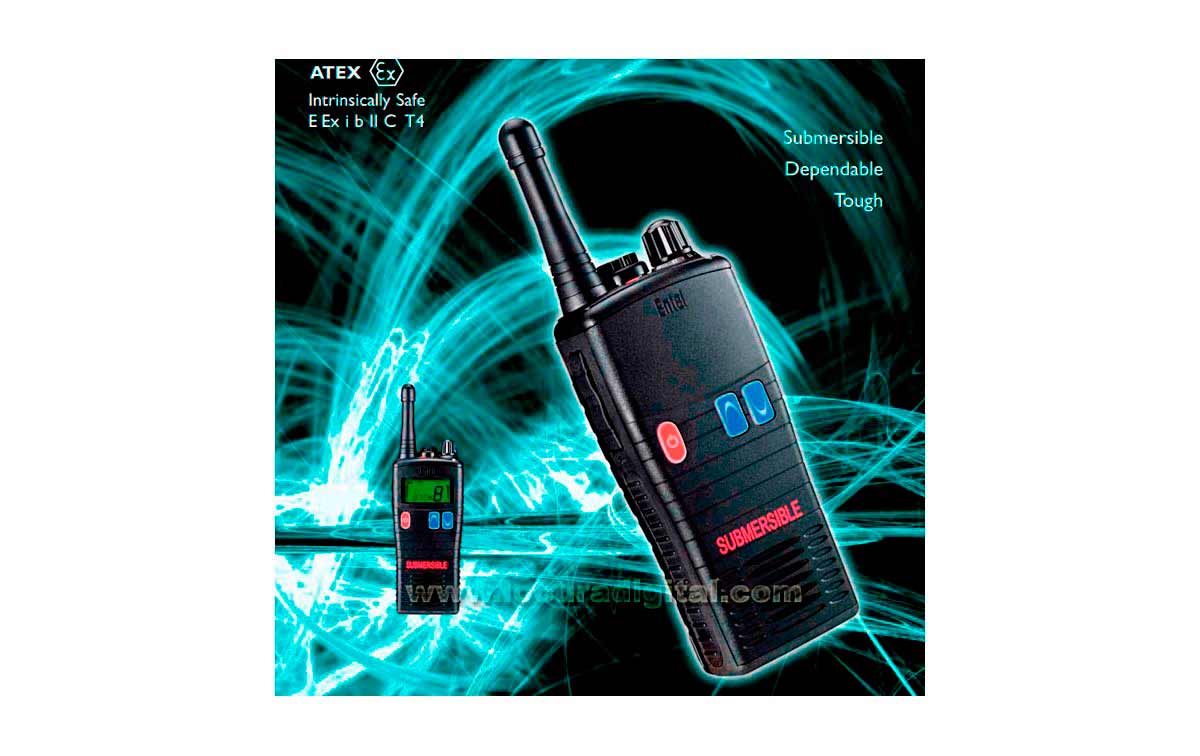

Entel HT952-446 walkie talkie PMR free to use without license. ATEX HT952 is the most cost effective solution. From an established generation of commercial grade portable and fully submersible IP68 HT Series 2.0 is designed to operate in the harshes more Manufacturer: entel Reference HT952
Entel HT952-446 walkie talkie PMR free to use without license. ATEX
HT952 is the most cost effective solution. From an established generation of commercial grade portable and fully submersible IP68 HT Series 2.0 is designed to operate in the harshest environments and with its MIL-STD 810C/D/E/F construction and exceptionally loud audio, used services Petrochemical and rescue organizations worldwide.
For your convenience, the HT952 has a capacity of 16 channels, allowing you to duplicate all 8 European PMR446 channels allocated in a different CTCSS tone or DCS. Moreover, just use the first 8 positions.
The HT952 comes with channel scanning, VOX and alarm, with optional Bluetooth communications facility and variable point vocoder.
Frequency Range 446.00625 - 446.09375MHz (HT952)
Channel 16 Channel
Channel spacing 12.5 kHz / 25 kHz
Communication method Simplex / Duplex semi
Impedance 50 ohm antenna
Antenna Whip / stubby
Battery Type Li-Ion 1800 mAh
Supply Voltage 7.4V DC
Current consumption (nominal) TBA
cycle (05/05/90) TBA
Microphone Microphone internal capacitor
Operating temperature -20 ° to 55 °
Dimensions (mm)
59.5 (W) x 130 (H) x 37 (D)
= 59.5 W (62 projections)
H = 130 (145 buttons INC)
D = 37 mm (41 battery protruding parts)
Weight 277 g with battery and antenna
Output power 1W
Modulation 8K0F3E/16K0F3E
Method Oscillator PLL
Frequency Stability<± 0,00025% (± 2 ppm)
Maximum Deviation ± 2 , 5 kHz (narrow) / ± 5 kHz (wide)
Audio Distortion<5% (1 kHz 60%)
Spurious Emissions -68 [DBC]
Hum and Noise -40 [DB]
Receiver Type Double superheterodyne type
-0.25uV Sensitivity (12dB SINAD )
Frequency Stability± 0,00025% (± 2 ppm)
-60 dB Spurious Rejection
Adjacent Channel Selectivity 60dB (narrow), -70 dB (Wide)
Distortion<3% típico
Hum and Noise -40 dB
Audio Output 1W
Speaker size 38 mm
