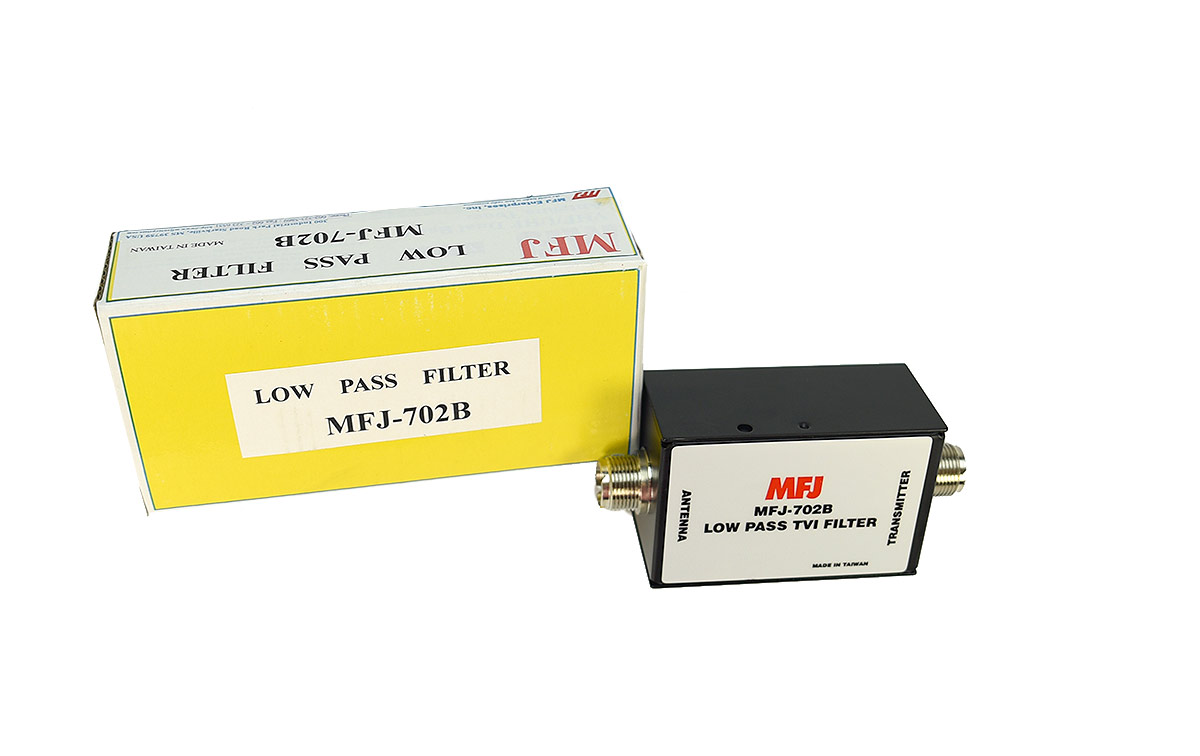

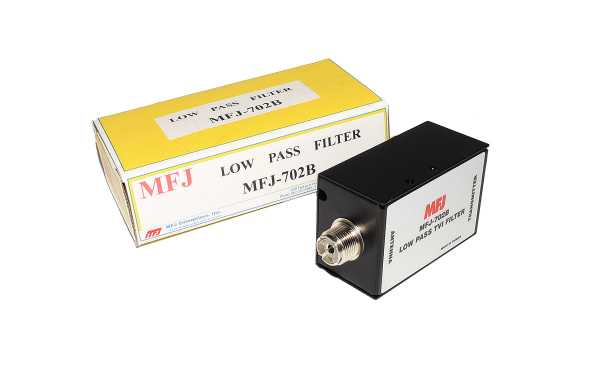

MFJ MFJ-702B LOW PASS FILTER, 1-30 MHZ, 200 W

MFJ MFJ-702B

MFJ MFJ-702B LOW PASS FILTER, 1-30 MHZ, 200 W

Plug this Low Pass TVI Filter between your transmitter and antenna or tuner and reduce your transmitter harmonics by 50 dB!
Harmonics could be the source of interference to your neighbors TV, radio, VCR, telephone, etc. SWR is below 1.5 to 30 MHz into 50 Ohms.
Perfect for barefoot transceivers -- handles 200 Watts with less than 0.5 dB insertion loss.

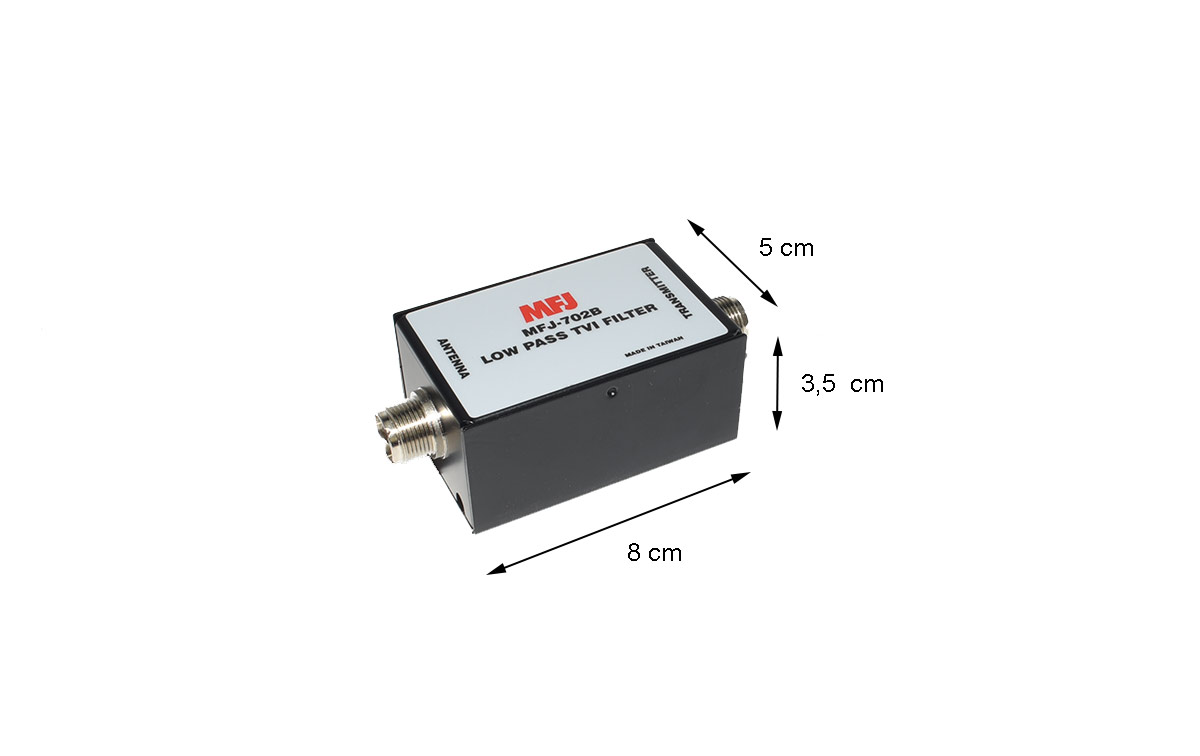

Attenuation is 50 dB at 54 MHz. PL female connectors. 8x5x3,5 cm.

Features

• Coverage 1 to 30 Mhz
• Impedance 50-Ohms
• Insertion loss: less than 0.5 dB
• Attenuation: 50 dB at 54 MHz
• Max power: 200 Watts
• 2 PL female connectors
• Dimensions: 8x5x3,5 cm
• Weight: 223 g
