Reference MFJ705 | MFJ
MFJ 705 MFJ Low Pass Filter for HF. Frequency step from 0 to 30 Mhz, 2500...
MFJ 705 MFJ Low Pass Filter for HF. Frequency step from 0 to 30 Mhz, 2500 Wats, Eliminate TV interference at the source with the MFJ-705 low pass filter. Use between transmitter and antenna or tuner. Reduces TV (TVI) interference radiated by transmit
discontinued
Description MFJ MFJ705

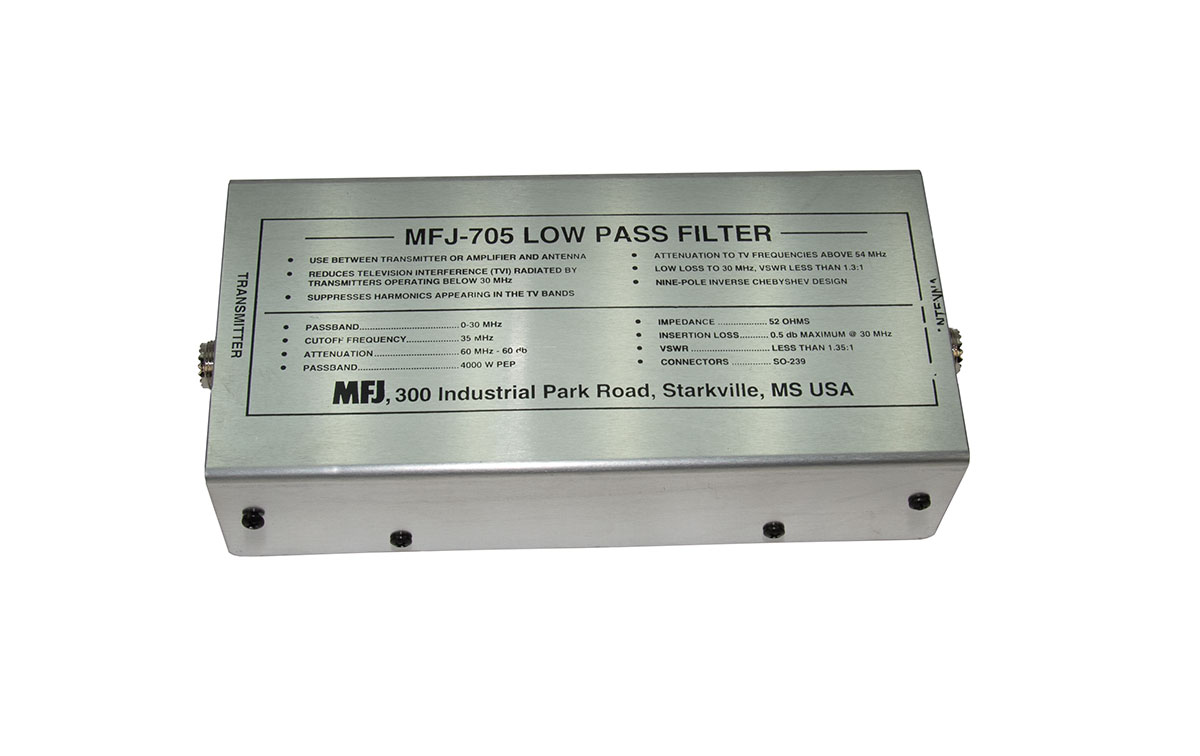

MFJ-705
MFJ 705 MFJ Low Pass Filter for HF. Frequency step from 0 to 30 Mhz, 2500 Wats, Eliminate TV interference at the source with the MFJ-705 low pass filter. Use between transmitter and antenna or tuner. Reduces TV (TVI) interference radiated by transmitters operating below 30 MHz. Suppresses harmonics that appear in television bands. Additional attenuation at IF TV frequencies above 40 MHz. Low loss at 30 Mhz
Kit Contents
- 1 Fitro MFJ-702B
characteristics
- Coverage 0 to 30 Mhz
- Cutoff frequency 35 Mhz
- Impedance 50 onhm
- Insertion loss 0.5 dB
- Attenuation - 60 dB at 54 MHz
- Maximum power 2500 watts.
- Female PL connectors x 2

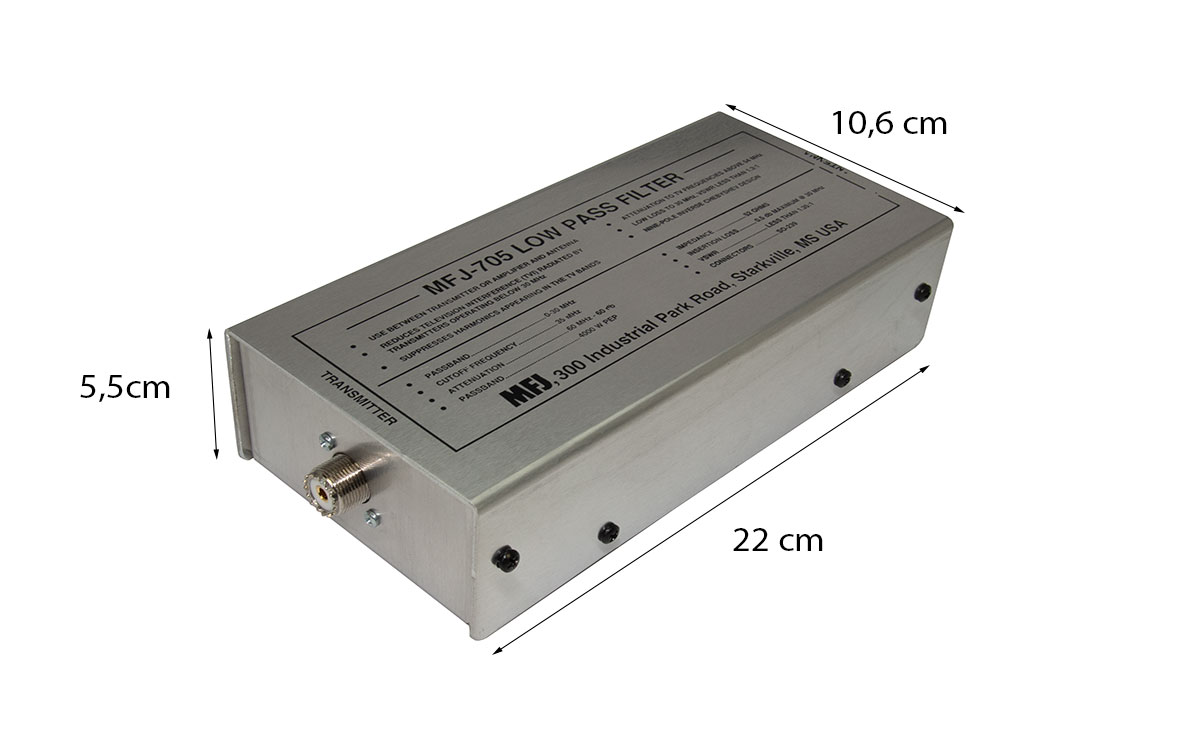

- Measures 10.6 x 22 x 5.5 cm
- Weight 223 gr.
