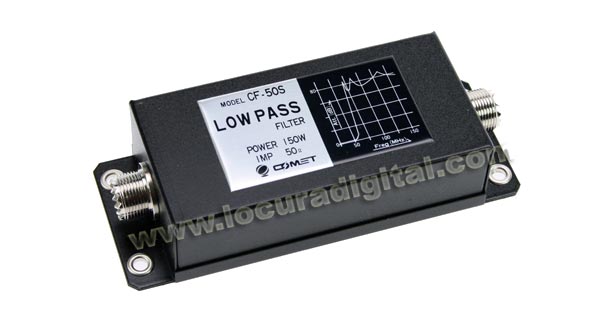

COMET CF50S pass filter 150 watts / CW frequencies from 1.9 to 54 MHz

COMET CF50S pass filter 150 watts / CW frequencies from 1.9 to 54 MHz It is a low pass filter designed to suppress the harmonics contained in the RF signal transmitter and to prevent TVI and BCI. The frequency limit is set at 54 MHz for trans more

COMET CF50S

Referencia: CF50S (COMET)

discontinued
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.
Equivalent Products

COMET CF50S pass filter 150 watts / CW Frequency 1.9 to 54MHz.

It is a low pass filter designed to suppress the harmonics contained in the RF signal transmitter and to prevent TVI and BCI. The frequency limit is set at 54 MHz for transmission in a frequency range from 1.9 to 54 MHz

COMET CF50S

COMET CF50S

COMET CF50S

COMET CF50S


FEATURES

Impedance 50 ohms
VSWR: 1.2
Max power: 150w
Connector: PL
Size: 14 cm x 5.4 cm x 3 cm
