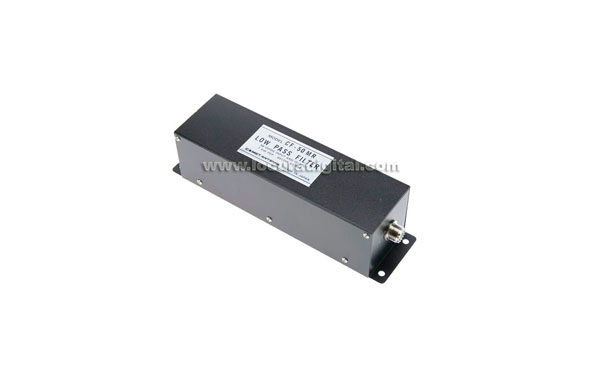

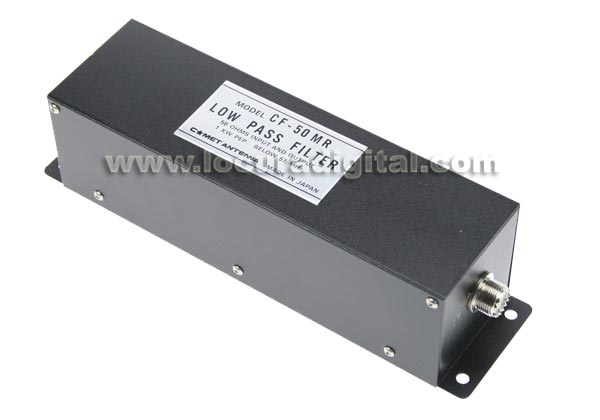

COMET CF-50MR LOW-PASS FILTER

COMET CF-50MR

COMET CF-50MR LOW-PASS FILTER

It's a low-pass filter designed to suppress the harmonics contained in the transmitter RF signals and to prevent TVI and BCI.
Its limit frequency is set to 54 MHz for transmissions within a frequency range from 1.9 to 54 MHz.

Features

• Passband: ~54MHz
• Insertion Loss: Wihin 0.4dB
• Attenuation: Above 60dB at 72~250MHz
• Input/out Impendance: 50 Ohm
• VSWR: Below 1.2
• Max Power: 500W CW, 1 KW PEP

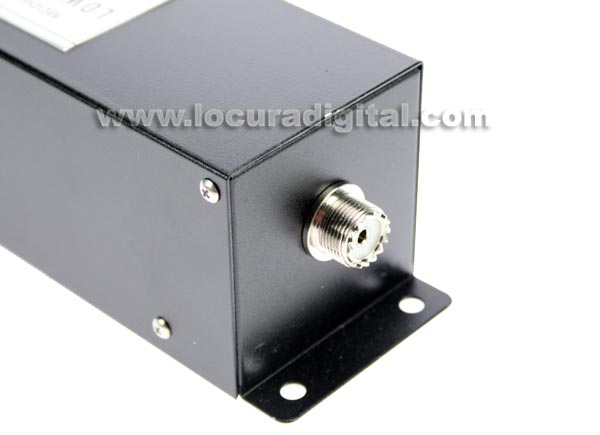

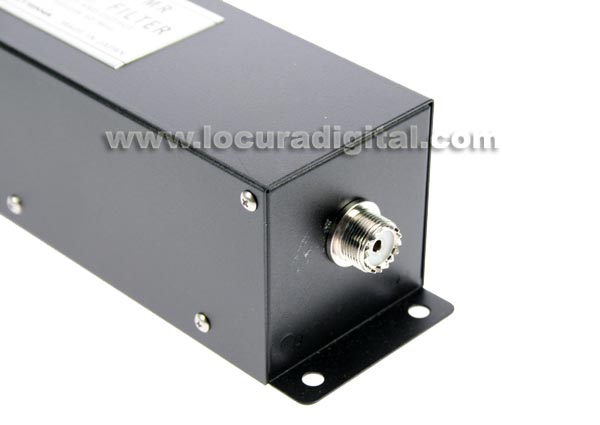

• Input/Output Connector: UHF MALE
• Weight: 800g

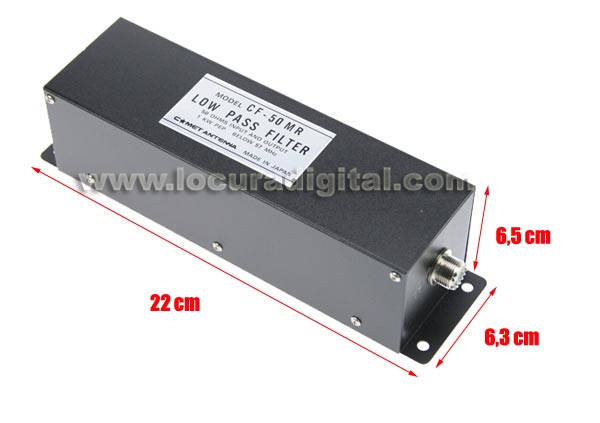

• External Dimensions: W250xD66XH64(mm)
