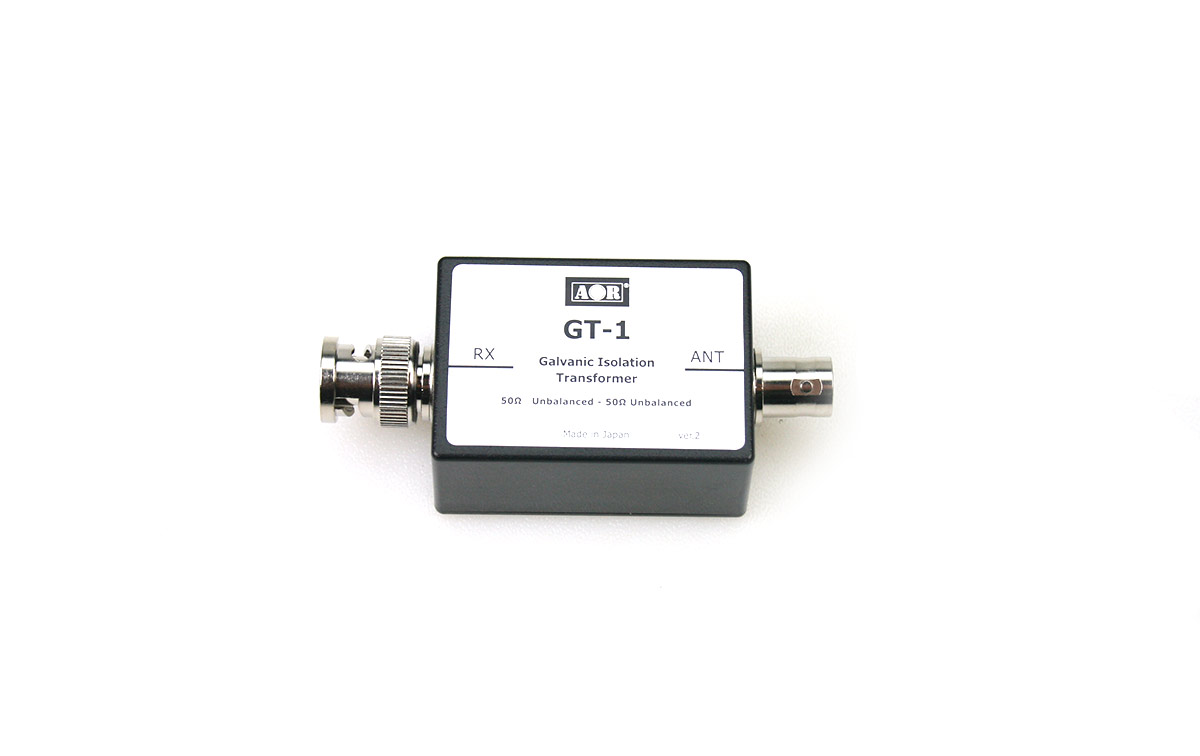

AOR GT-1 Galvanic Isolation Transformer
The AOR GT-1, Galvanic Isolation Transformer, is a device designed to provide electrical isolation between electronic equipment or systems that are connected to each other. Galvanic isolation is a method used to electrically separate two circuits or
Make the first review50,26€ VAT included 41,54€ excl. VAT
Are you one of those who prefer not to wrap gifts? We do it for you!
With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!
What if the recipient is you? Why not?
We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.
This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.
If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.
Description AORGT1
AOR-GT-1

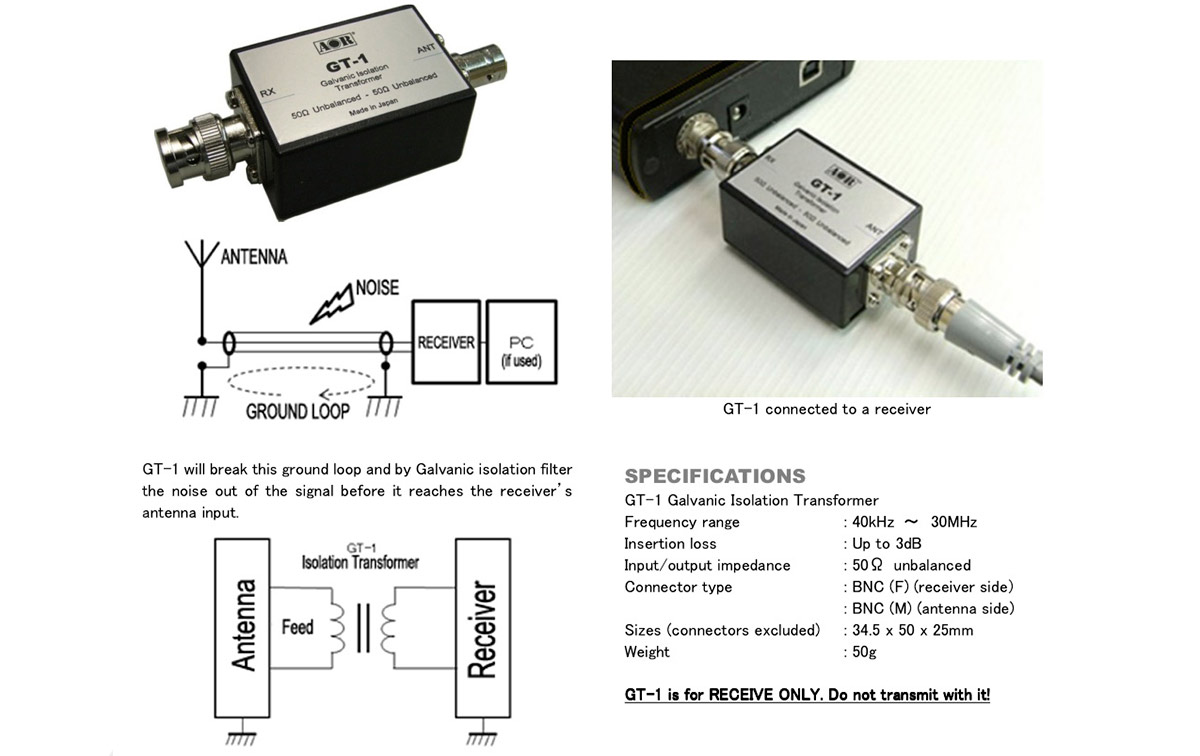

The AOR GT-1, Galvanic Isolation Transformer, is a device designed to provide electrical isolation between electronic equipment or systems that are connected to each other. Galvanic isolation is a method used to electrically separate two circuits or systems to prevent the transfer of direct electrical current between them. Direct Current Prevention: Galvanic isolation prevents electrical current from flowing directly between two connected devices or systems, which can be important for protecting sensitive equipment or preventing interference problems.
Noise and Surge Protection: Galvanic isolation can help protect electronic devices from electrical noise, surges, and damage caused by fluctuations in electrical current.
Interference Reduction: It can reduce electromagnetic interference between connected equipment, which is especially useful in radio frequency and communications applications.
Improved Safety: Galvanic isolation can also improve electrical safety by reducing the risk of electric shock and short circuits.
- 1 GT-1
Characteristics
- GT-1 model
- Frequency 40kHz-20MHz
- Impedance 50 ohms
- 1 BNC Female Connector
- 1 BNC Male Connector
- Dimensions 34.5 x 50 x 25 mm
- Weight 50gr.
