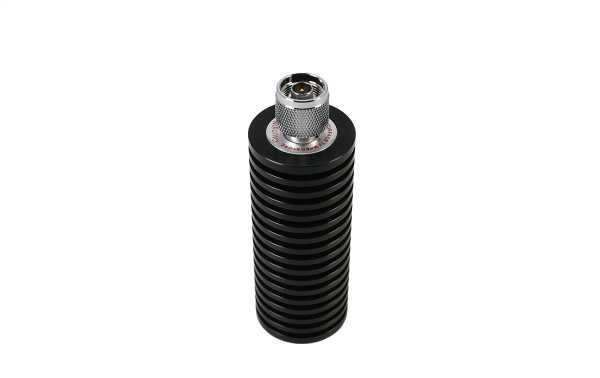

PWR-DL-150-N Dummy load with N connector FREQUENCY 0 - 3000 MHZ
Komunica PWR-DL-150-N is a high performance dummy load designed specifically for radio frequency (RF) applications, allowing users to safely and effectively test transmitters and communications equipment without radiating energy into the environment.
Make the first review75,29€ VAT included 62,22€ excl. VAT
Are you one of those who prefer not to wrap gifts? We do it for you!
With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!
What if the recipient is you? Why not?
We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.
This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.
If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.
Description KOMUNICA PWRDL150N
PWR-DL-150N
Komunica PWR-DL-150-N is a high-performance dummy load designed specifically for radio frequency (RF) applications, allowing users to test transmitters and communications equipment safely and effectively, without radiating energy into the environment. This dummy load is ideal for laboratories, service facilities, and any situation where an antenna needs to be simulated during the adjustment or diagnosis of transmitter equipment.
Frequency range:
The PWR-DL-150-N covers a wide frequency spectrum from DC to 3 GHz, making it compatible with a wide variety of communication systems operating in the VHF, UHF, microwave, and other low frequency RF ranges.Detailed Specifications:Voltage Standing Wave Ratio (VSWR):
One of the most important aspects of any dummy load is its ability to minimize reflections from the transmitted signal. The PWR-DL-150-N has a VSWR of less than 1.19 across its frequency range, ensuring a low rate of power return back to the transmitter. This is crucial to protecting equipment from damaging transmissions and maintaining accuracy during testing.
Power supported:
This dummy load is capable of handling up to 30W of continuous power, which is more than enough for most moderately powered transmitters used in amateur radio systems, laboratory testing, or technical services. Additionally, it can handle up to 150W of peak power, making it suitable for short-term testing or intermittent transmissions at higher power without risk of damage.

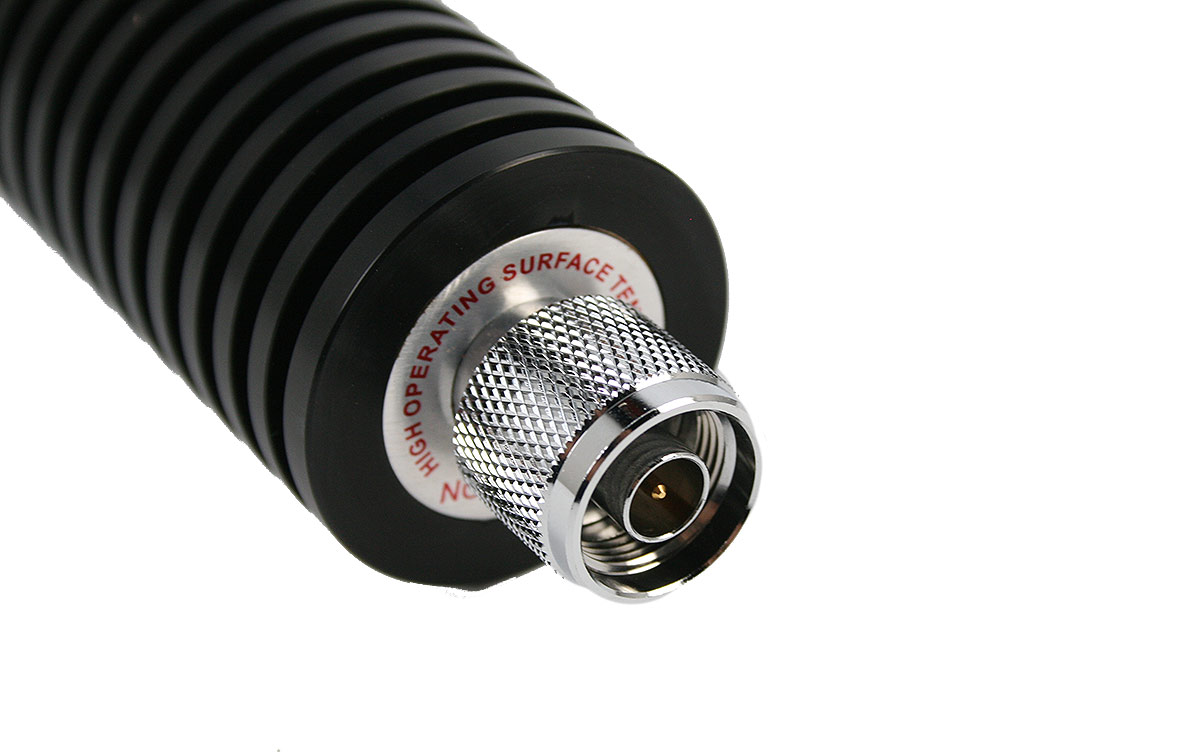

N Type Male Connector:
The dummy load comes equipped with a male N-type connector, a rugged and reliable standard for high frequency RF applications. This connector type is known for its low noise and excellent performance in high frequency bands, while maintaining a secure, low-loss connection to the test equipment or transmitter.
The PWR-DL-150-N is an indispensable tool in testing RF transmitters and systems, as it allows simulating an ideal antenna load without radiating signals. It is commonly used in:
RF Testing Labs: To ensure that transmitters operate properly without causing interference to other equipment.
Maintenance and Repair: At service centers where RF problems need to be diagnosed or equipment adjusted before returning to the field.
Transmitter Configuration: Allows amateur or professional radio operators to fine-tune their equipment without worrying about electromagnetic interference or regulatory compliance.
Advantages
High durability: Built to withstand intensive use conditions, since handling high power in short periods ensures continuous performance.
Portability: Its compact size allows it to be easily carried anywhere where field testing or in fixed installations is needed.
Test accuracy: Thanks to its low VSWR, it guarantees reliable testing without significant power loss.
The Komunica PWR-DL-150-N is a professional and reliable solution for any RF application requiring the simulation of an antenna load. Its ability to handle high continuous and peak power, along with its wide frequency range, make it a versatile and essential tool in any RF environment. In addition, its N male connector ensures extended compatibility with a wide range of RF equipment.
- 1 Charge PWR-DL-150N
Characteristics
- Frequency: 0-3000 Mhz
- Power: 30 continuous - 150 W maximum
- Connector: 1 X N-259 Male
- Impedance: 50 Ohm
- VSWR: 1:19

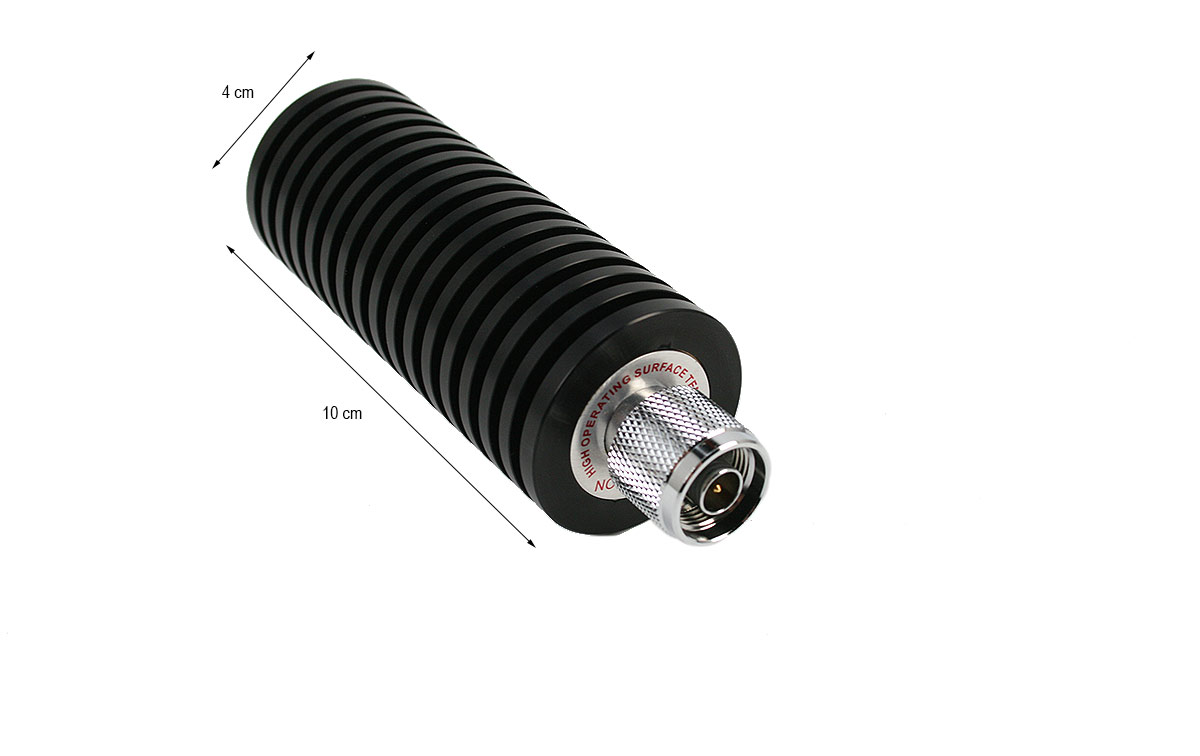

- Dimensions: 40 x 100 mm
- Weight: 345 gr.
