PWR-SG-7500 Dual band mobile antenna 144/430 Mhz. Length 1.05 meters

PWR-SG-7500

The Komunica PWR-SG-7500 mobile antenna is an antenna designed to operate in the VHF and UHF bands. With a capacity to handle up to 150 watts of power, this antenna offers reliable performance for mobile applications.

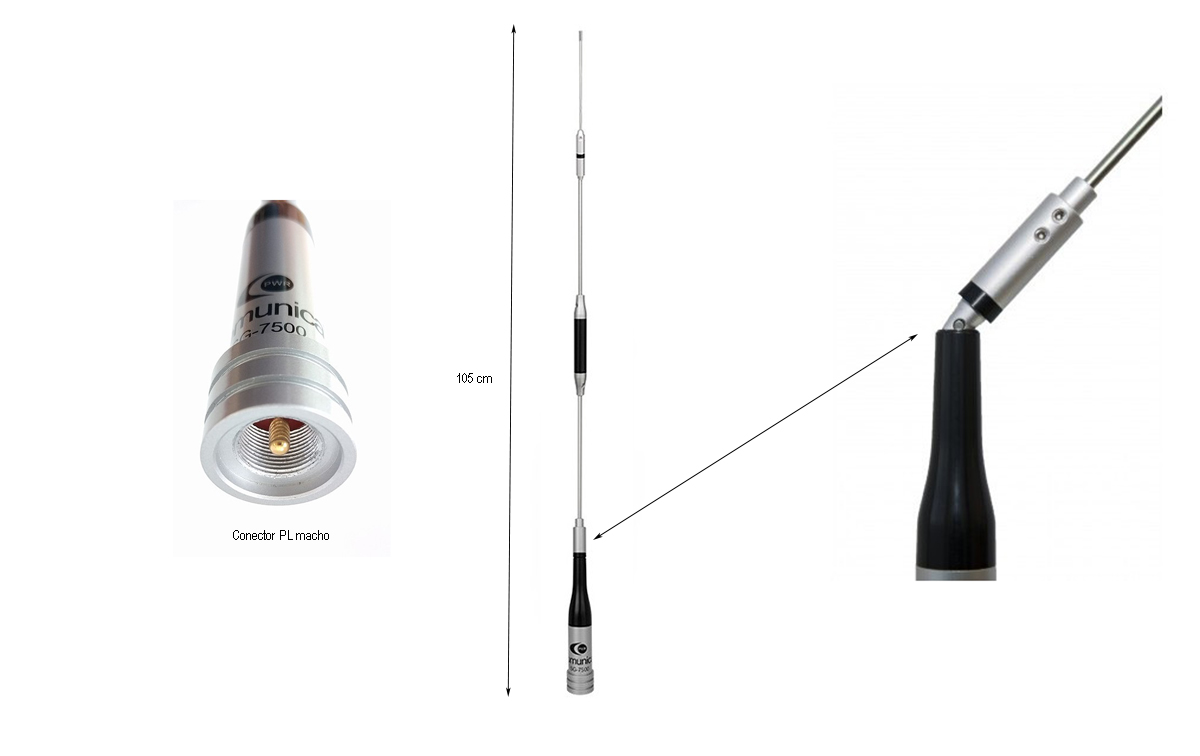

It is 1050mm long and uses a PL connector, which is common in radio equipment. This type of connector makes it easy to connect to a variety of radio devices.

The antenna is flip-up, meaning its position can be adjusted as needed for better signal reception and transmission. This provides flexibility in installing and adjusting the antenna in different vehicles or situations.

The Komunica PWR-SG-7500 mobile antenna is a reliable and versatile option for mobile communications in the VHF and UHF bands, with adequate power handling capability and the ability to position adjust to improve its performance.

Characteristics

• Frequency band: VHF/UHF
• Frequency: 144/430 MHz
• Gain: 3.5.0 (144 MHz) / 6 dbi (430 MHz)
• VSWR: <1.5
• Power: 150 watts
• Impedance: 50 ohms
• Type: 1/2 wave (144 MHz) 5/8 wave (430 MHz)
• Radiation: omnidirectional
• Weight: 330 grams
• Length: 105cm.
• Connector: PL male
