Sirtel SRT-M-302-TITAN HF mobile antenna 7 to 30/50/144/430 MHz

SRT-M-302-TITAN

Sirtel SRT-M-302-TITAN Mobile Antenna HF 7 at 30/50/144/430 MHz, It is a versatile antenna designed to operate in various frequency bands, including HF 7 at 30 Mhz and 50 MHz, 144 MHz and 430 MHz .

Maximum power of 130 watts, making it suitable for a wide range of radio applications.
Wavelengths of 1/4 for 50 MHz, 1/4 with short rod for 144 MHz and 5/8 with long rod for 144 MHz and 430 MHz, ensuring good transmission and reception efficiency at these frequencies.
50 ohm impedance, which is standard for most amateur radio equipment and transceivers.

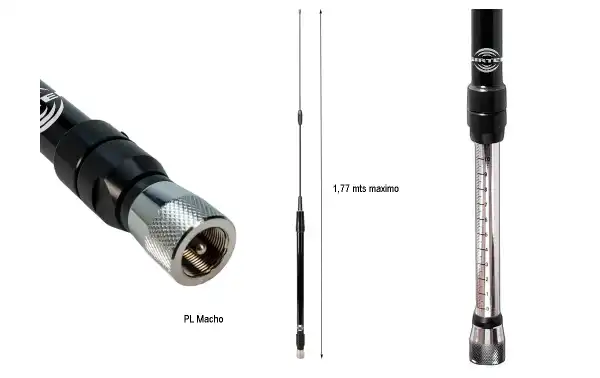

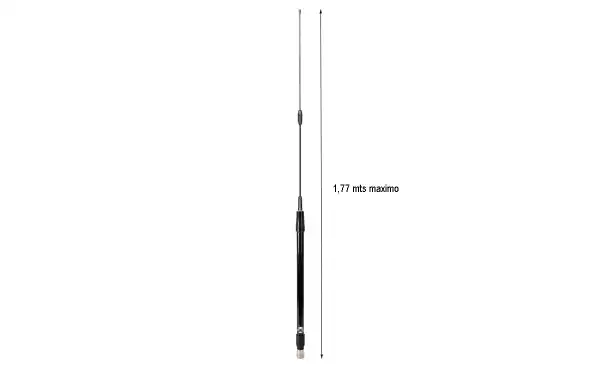

Adjustable length from 0.5 to 1.77 meters, allowing it to adapt to different installation and performance requirements.

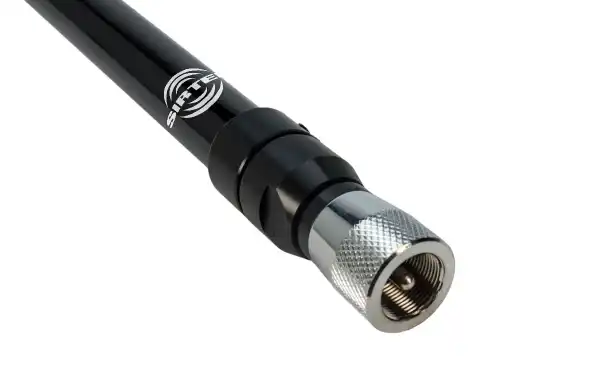

Male PL connector for easy and secure connection to your radio equipment.
It offers high and versatile performance for your communication needs in various frequency bands.

Characteristics

• Frequencies 7 to 30 MHz and 50/144/430 MHz
• Maximum power 130 watts
• Wavelength 50mhz 1/4
• Wavelength 144 mhz short rod 1/4
• Wavelength 144 mhz long rod 5/8
• Wavelength 430 mhz long rod 5/8
• Impedance 50 ohms
• Length 0.5 -1.77 m.
• Weight 300 grams
• Male PL connector
