Reference YGMINIDUAL | KOMUNICA
YG-MINI-DUAL KOMUNICA Dual Band VHF/UHF LOOP Antenna

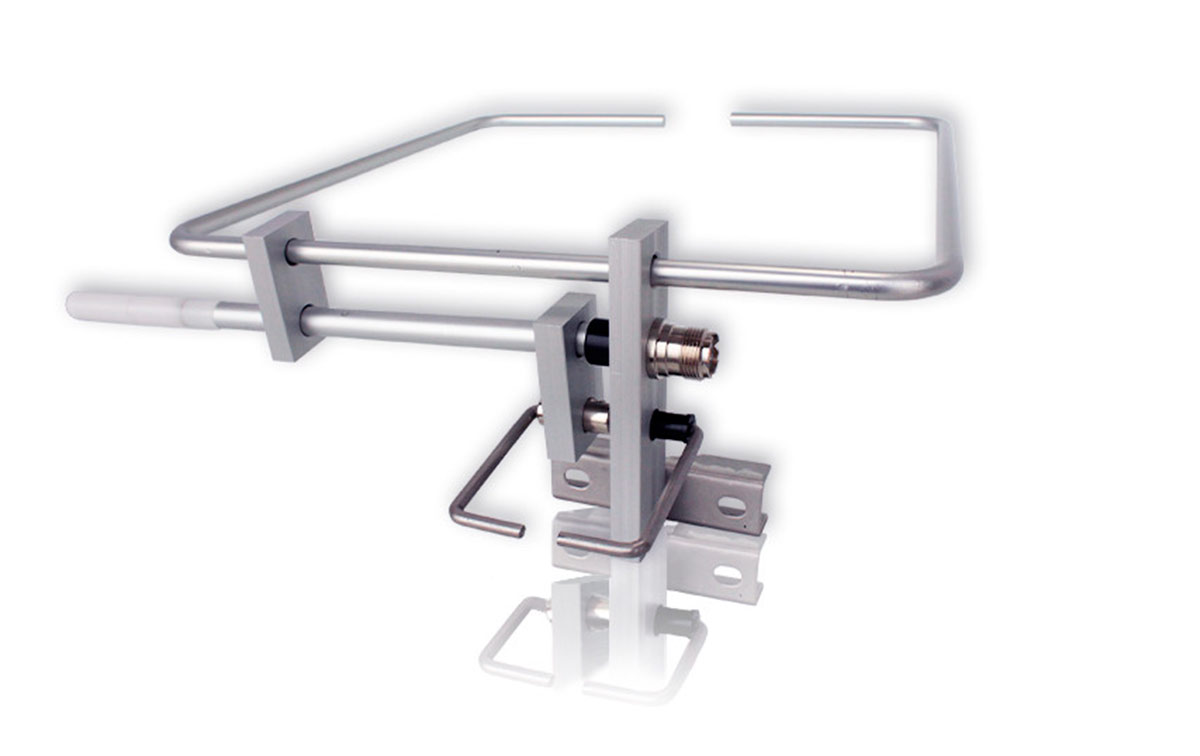

YG-MINI-DUAL KOMUNICA Dual band VHF/UHF LOOP antenna. Reduced dimensions. Horizontal or Vertical Polarization. Ideal for walkies although it can also be used at home for a base station. It is small, light and has a high gain.
Make the first review77,80€ VAT included 64,30€ excl. VAT
available. Estimated delivery 2-5 days. available in shop Last units Delivery price from 30,25€
Description KOMUNICA YGMINIDUAL
YG-MINI-DUAL

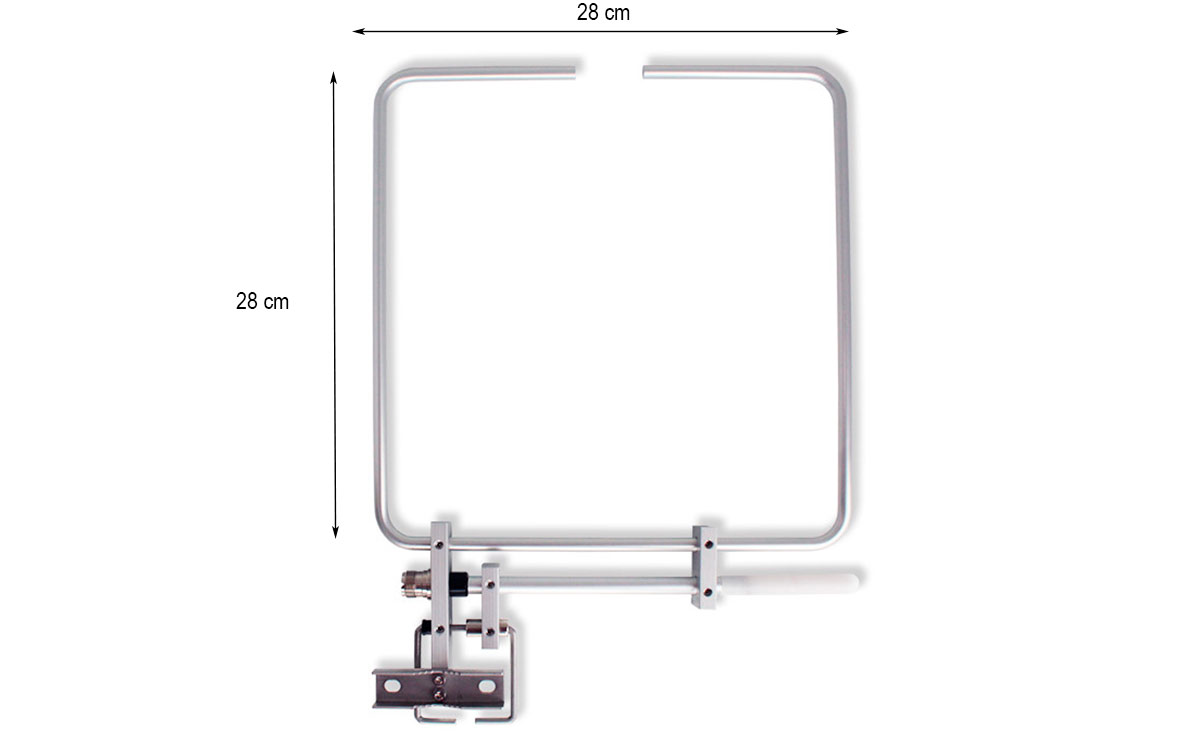

YG-MINI-DUAL KOMUNICA Dual band VHF/UHF LOOP antenna. Reduced dimensions. Horizontal or Vertical Polarization. Ideal for walkies although it can also be used at home for a base station. It is small, light and has a high gain despite being so compact. Dimensions 28 x 28 cm
kit content
- 1 Directive Antenna YG-MINI-DUAL
Features
- Model: YG-MINI-DUAL
- Brand: FALKOS
- Dual Band Format
- Frequency 144 MHz / 1/4 wave
- Frequency 430 MHz /1/4 wave
- VSWR : < 1.5
- Impedance 50 Ohms
- HyGain: 4dB(VHF) / 5dB(UHF)
- Polarization: horizontal
- Frequency: 140 - 150MHZ / 380 - 470MHz
- Adjustment: Gamma-Match
- Maximum power: 800 Watts
- PL Female Connector
- Mast diameter 25 to 48 maximum
- HyGain: 4dB(VHF) / 5dB(UHF)
- Length: 28cm*28cm (11x11inch)
- Weight 360 gr.
