DIAMOND X-510 Dualband VHF / UHF base antenna. ORIGINAL JAPANESE

Dualband base antenna DIAMOND X-510 ORIGINAL JAPANESE. Antenna valid for both VHF / UHF bands.

5,0

147,80€ VAT included ~~129,80€~~ Ahorras -18,00€ (-13,87%) 122,15€ excl. VAT

You've seen it cheaper Request a quote

available. Estimated delivery 2-5 days. available in shop Delivery price from 30,25€

Description DIAMOND X510N

DIAMOND X-510N

ORIGINAL

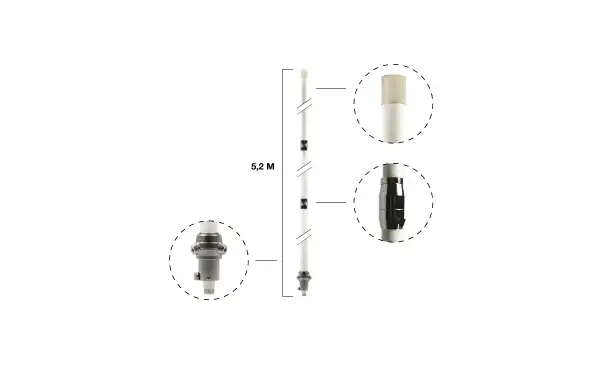

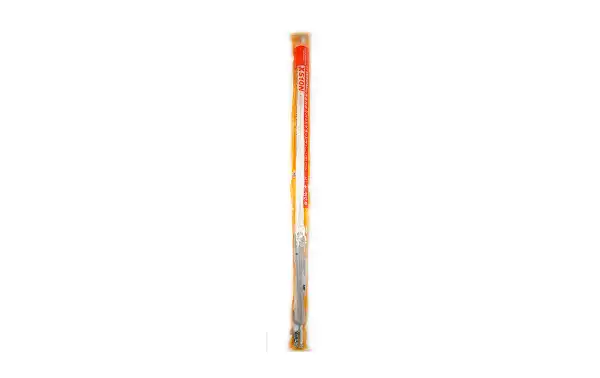

Dualband base antenna DIAMOND X-510N ORIGINAL JAPANESE. Antenna valid for transmitting and receiving on both VHF / UHF bands. It has three radials. It can be installed on a mast with a diameter from 30 mm to 60 mm. Connection Type: N female. Antenna length: 5.2 m White fiber. Three sections.

Kit Contents DIAMOND X-510N

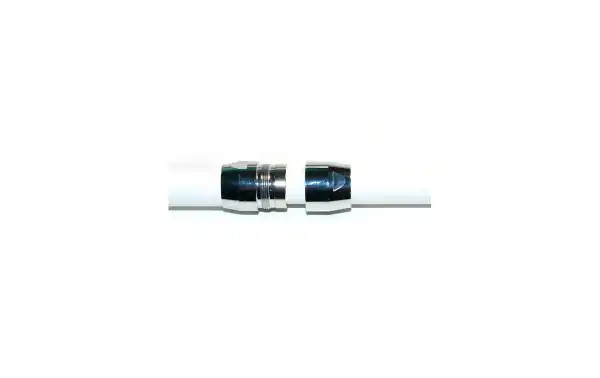

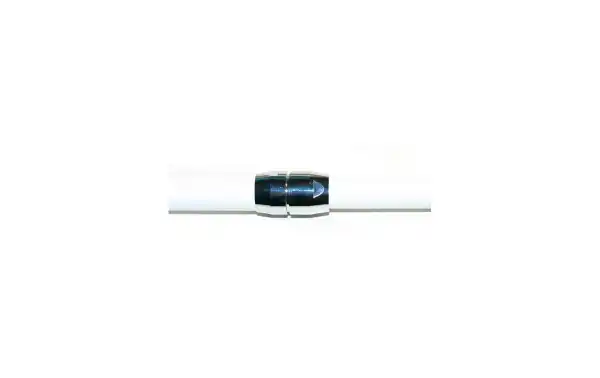

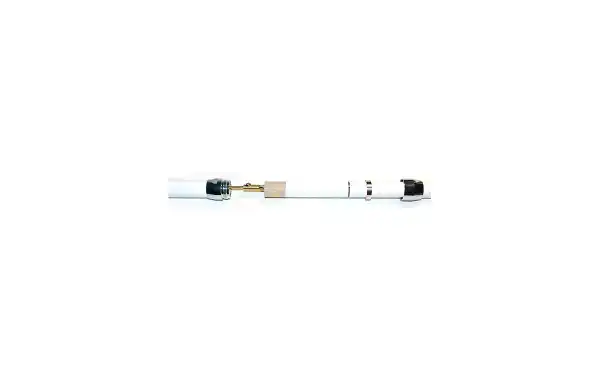

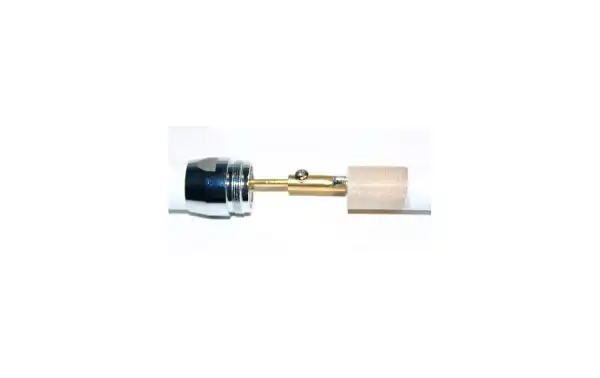

1 White fiber antenna with three sections

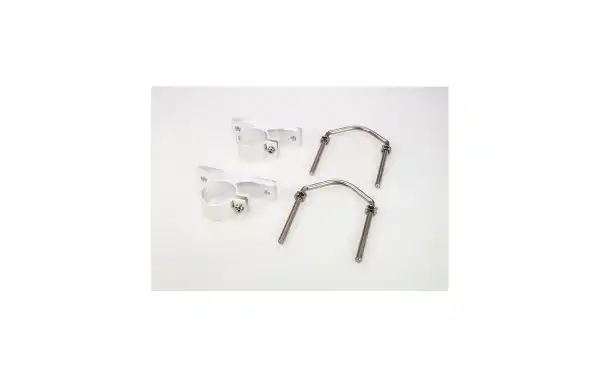

2 Brackets for mast from 30 mm to 60 mm
3 Radials with 52 cm length
1 English installation assembly

You might consider the adapter to PL see link click here <<< >>>

Features

Impedance: 50 Ohm
VHF Gain: 8.3 dB
UHF Gain: 11.7 dB
Maximum power: 200 watts
Wave length VHF 3 x 5/8 (144 Mhz)
Wave length UHF 8 x 5/8 (430 MHz)
Antenna length: 5.2 meters
Weight: 2 kg
SWR: 1.5

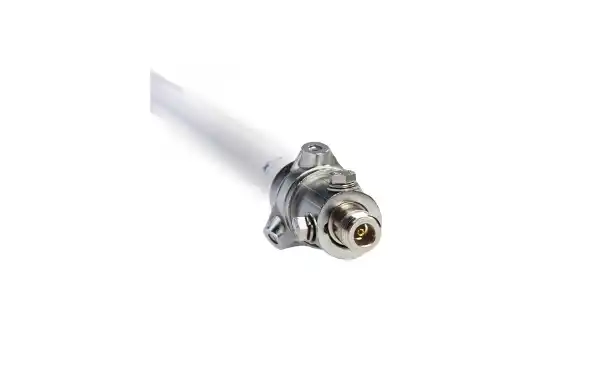

Connector: N female
Sections: 3

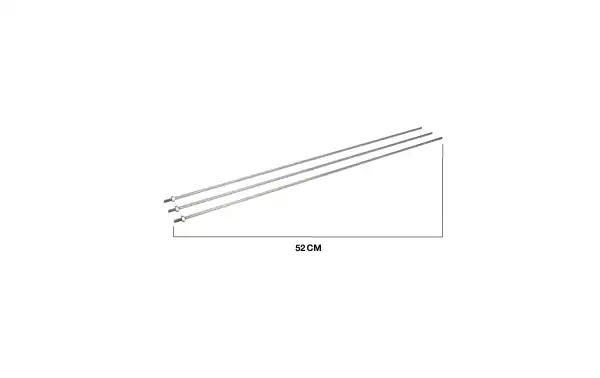

Radials: 3 with a length of 52cm
Radials Material: Stainless Steel
Maximum resistance to wind: 40m / sec
