MFJ
Reference MFJ1754 | MFJ

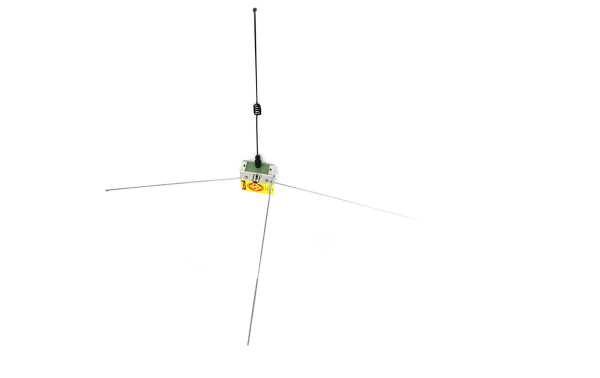

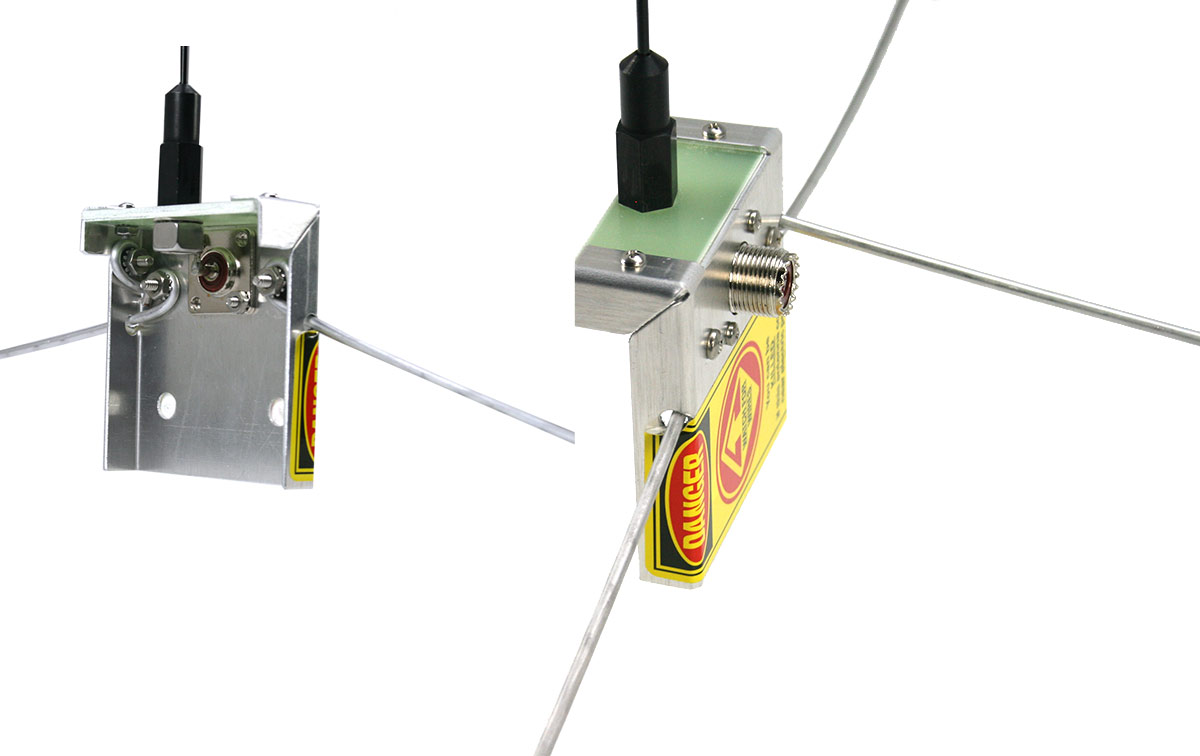

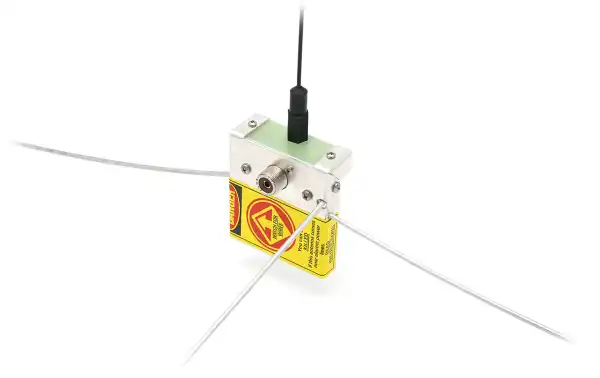

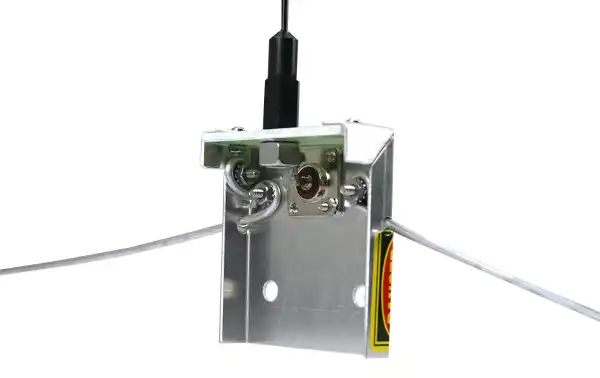

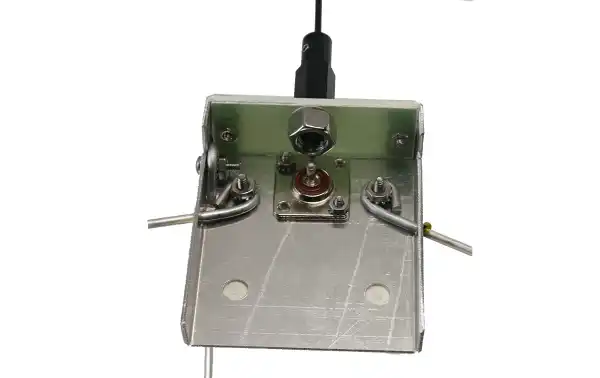

MFJ1754 Bi-band base antenna VHF144/UHF430 Mhz

DUAL BAND BASE antenna MFJ 1754. Valid antenna to transmit and receive in two VHF/UHF bands. It has three radials. It can be installed on mast diameter 25 mm to 35 mm. Connection type PL female. Antenna length RADIANT ROD length 44 cm yt

Make the first review

65,34 VAT included 54,00€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

available. Estimated delivery 1-2 days. available in shop Last units Delivery price from 6,50€

Description MFJ1754

MFJ-1754

DUAL BAND BASE antenna MFJ 1754. Valid antenna to transmit and receive in two VHF/UHF bands. It has three radials. It can be installed on mast diameter 25 mm to 35 mm. Connection type PL female. Antenna length RADIANT ROD length 44 cm and three radials 50 cm each

MFJ1754 Antenna base bibanda VHF144/UHF430 Mhz

MFJ-1754 Kit Contents
  • 1 ROD TYPE Antenna

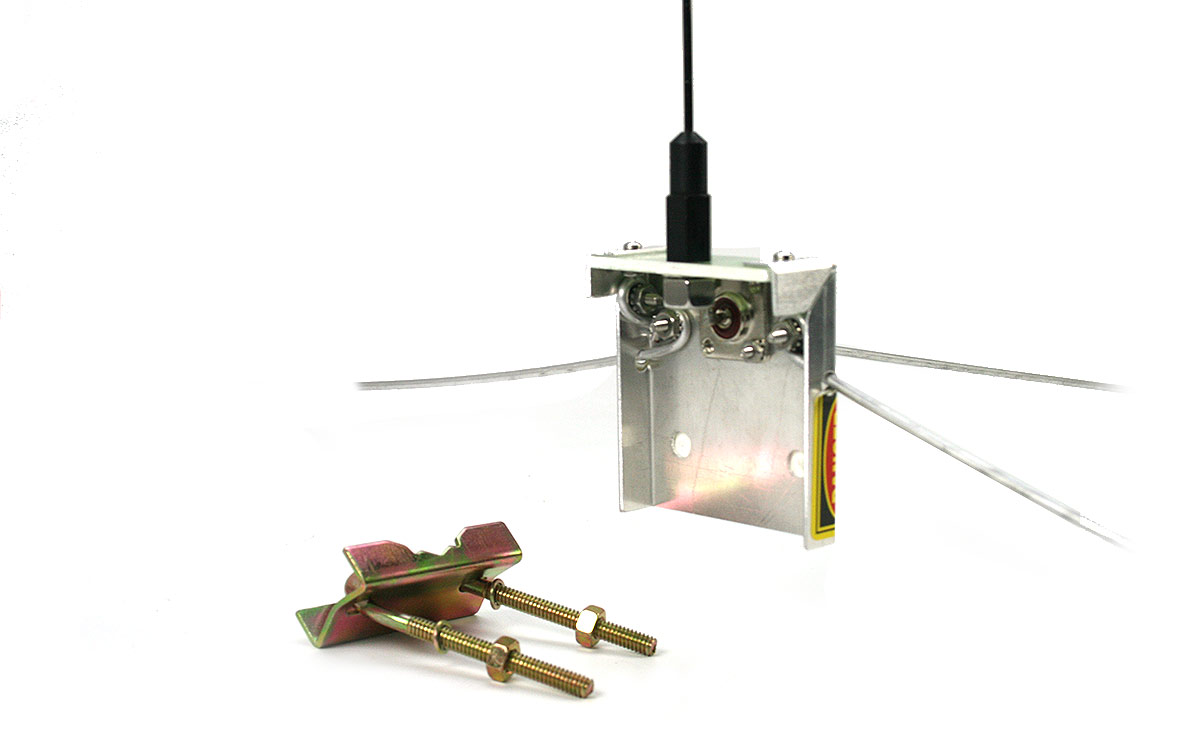

  • 1 Flanges for mast from 25 mm to 35 mm
  • 3 Radials length 50 cm.

MFJ1754 Antenna base bibanda VHF144/UHF430 Mhz

MFJ1754 Antenna base bibanda VHF144/UHF430 Mhz

Features

  • Impedance: 50 Ohm.
  • VHF Gain: 2.15dBi
  • UHF Gain: 3.5dBi
  • Maximum power: 150 watts.
  • VHF wavelength 1/4 (144 Mhz)
  • Wavelength UHF 1/2 (430 Mhz)

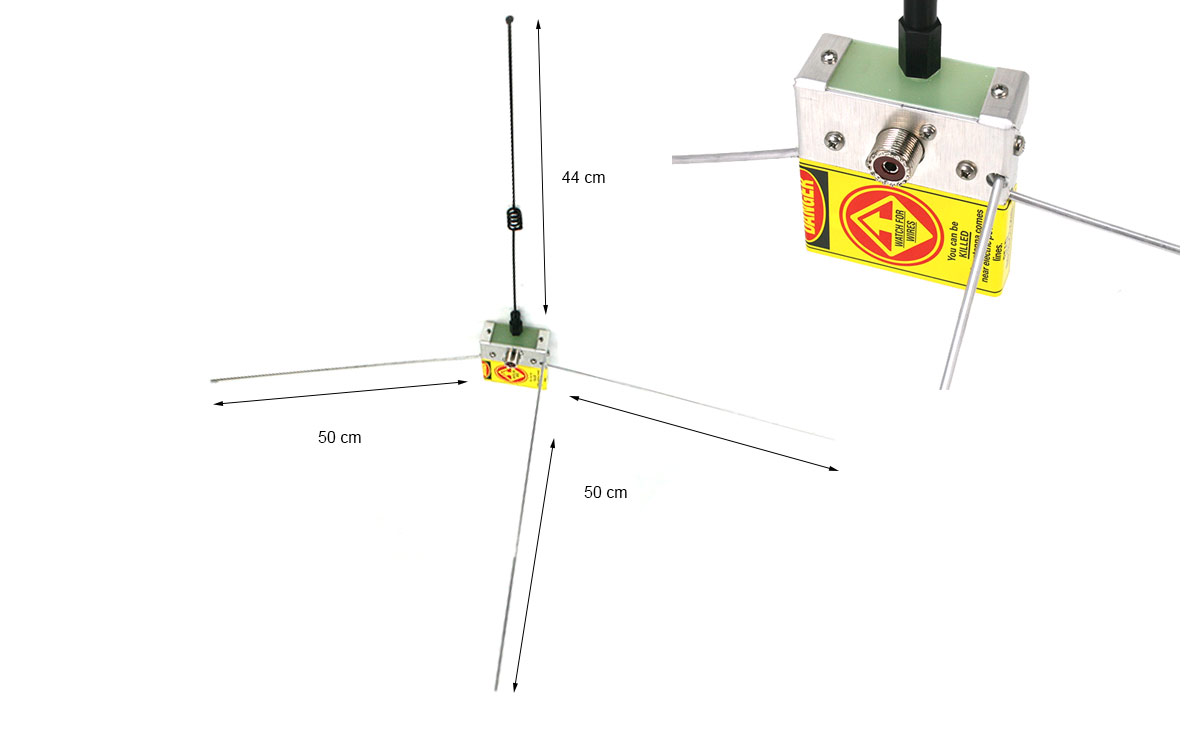

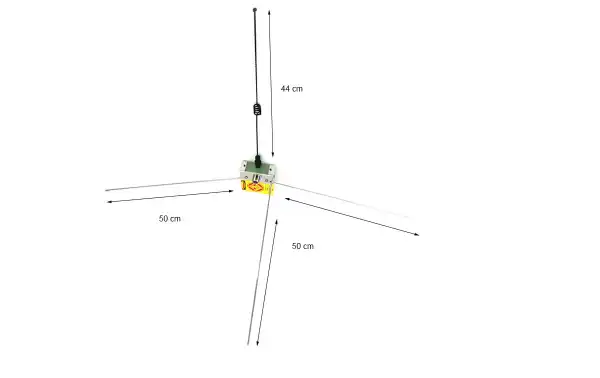

  • Radiating antenna length 44 cm
  • Radial length 3 x each 50 cm
  • Stretch: 1
  • Weight: 400 grams
  • SWR: 1.5 SWR
  • Connector: PL female
