MAAS X-50N Dualband base antenna for VHF / UHF Freq: 144 / 430 MHz

MAAS X-50N

MAAS X-50N Dualband base antenna for VHF / UHF Frequency range: 144 / 430 MHz

Antenna valid for transmitting and receiving on both VHF / UHF bands. It has three radials. It can be installed on a mast with a diameter from 30 mm to 60 mm.

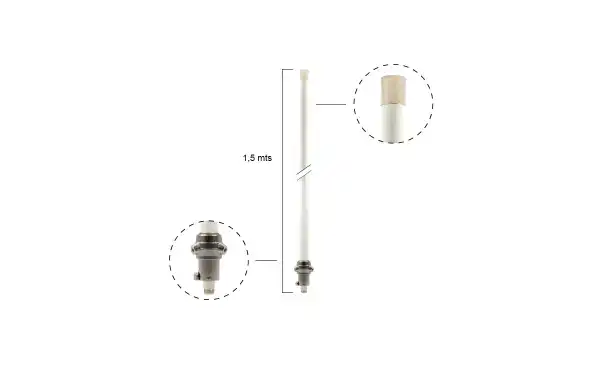

Connection Type: N female. Antenna length: 1.5 m White fiber. One section.

• 1 White fiber antenna with two sections
• 2 Brackets for mast from 30 mm to 60 mm
• 3 Radials with 19 cm length
• 1 English installation assembly

Features

• Frequency: 144/430 MHz
• Gain VHF: 4,5 dBi
• Gain UHF: 7,2 dBi
• Maximum power: 200 watts
• Wave length VHF: 6/8 (144 Mhz)
• Wave length UHF: 5/8 (430 Mhz)
• 3 Radials with 19 cm length
• Materials: Fiberglass, stainless steel
• Connection: N female
• S.W.R.: 1,5
• Length: 150 cm
• Weight: approx. 0,9 kg
