MAAS X-30N Dual Band Antenna VHF / UHF 144/430 MHz connector N female

AERIAL BASE BIBANDA MASS X-30N. Valid antenna to transmit and receive in two VHF / UHF bands. It has three radials. It can be installed on a mast diameter 30mm to 60mm. Connection type N female. White fiber antenna length 1.3 m. A tram more Manufacturer: maas Reference MAASX30N EAN 4250158704442

(4,0) 2 Reviews

MAAS X-30N Dual Band Antenna VHF / UHF 144/430 MHz connector N female

available

36,82€ incl. VAT

30,43€ w/o VAT

Delivery price from 30,25€

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

Description

Maas X30N

BASE BIBANDA MASS X-30N antenna. Antenna valid to transmit and receive in two VHF / UHF bands. It has three radials. It can be installed on a mast diameter 30 mm to 60 mm. Connection type N female. White fiber antenna length 1.3 m. A stretch.

antena base bibanda diamond original japonesa x-30 .antena valida para transmitir y recibir en dos bandas vhf/uhf. dispone de tres radiales.se puede instalar en mastil diametro 30 mm a 60 mm. tipo de conexion n. longitud 1,3 m. un tramo.

Contents of the MAAS X-30N kit

1 White fiber antenna
2 Clamps for mast from 30 mm to 60 mm

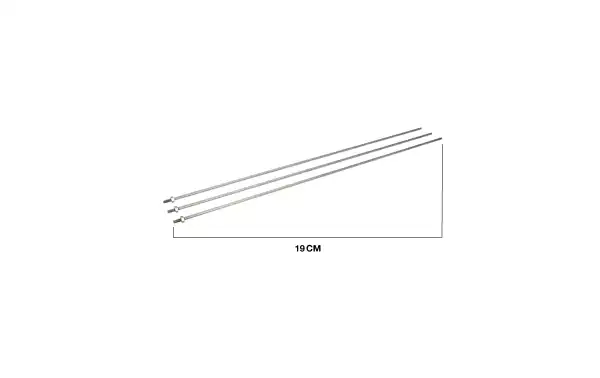

3 Radials length 19 cm.
1 English assembly manual.

You may be interested in the PL adapter see link click here

Characteristics

Impedance: 50 Ohm.
VHF gain: 3 dB
UHF gain: 5.5 dB
Maximum power: 150 watts.
Wavelength VHF 1/2 (144 Mhz)
Wavelength UHF 5/8 (430 Mhz)

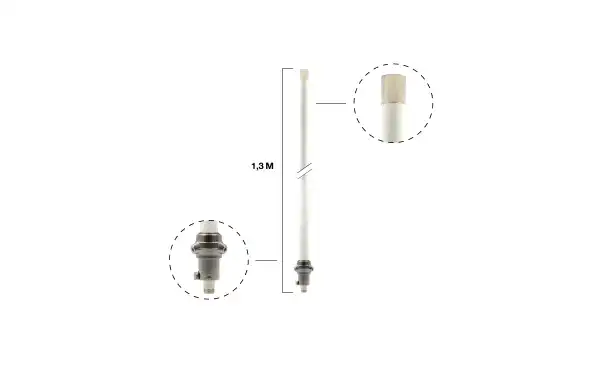

Antenna length: 1.3 meters
Section: 1
Weight: 800 grams
SWR: 1.5 SWR

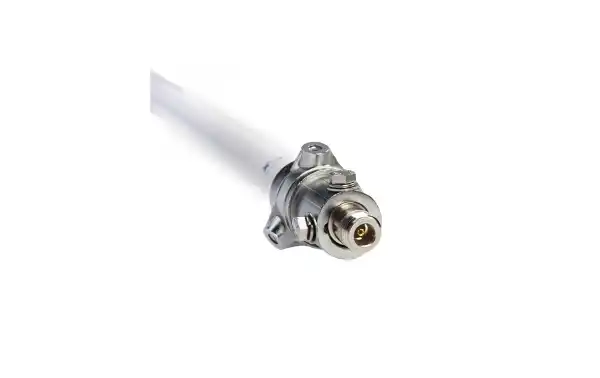

Connector: N female
Radial: 3 rods length 19cm.
Maximum wind resistance: 60m / sec (135 MPH)
